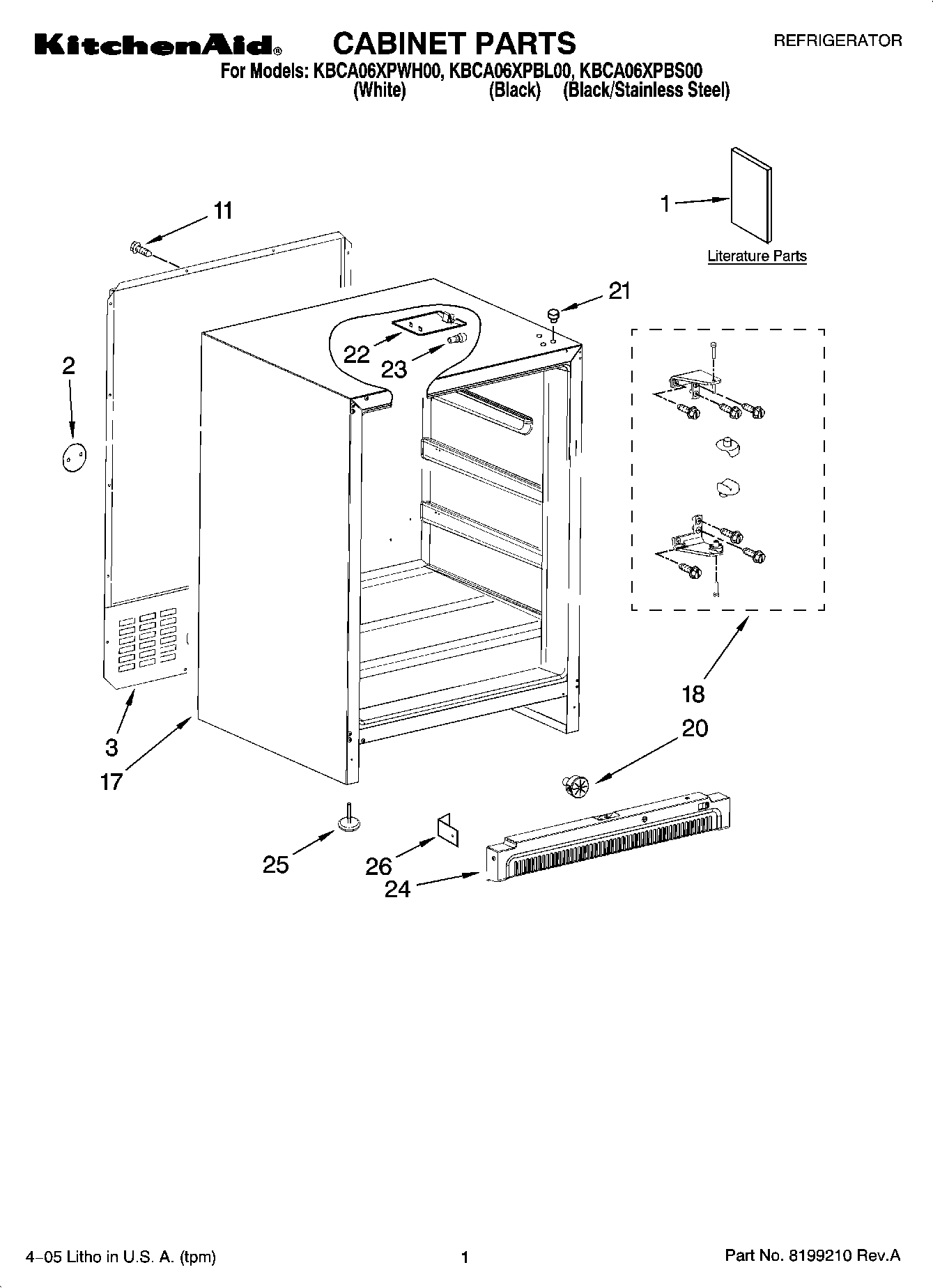

KBCA06XPBS00 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
1	Energy Guide
2	Cover, Hole
3	Panel, Rear
11	WP8281196 Whirlpool Screw
17	Cabinet (Not A Serviceable Part)
18	Hinge Assembly (Top & Bottom) (Stainless Steel)
18	Hinge Assembly (Top & Bottom) (White)
18	Hinge Assembly (Top & Bottom)
20	Knob, Thermostat (Black)
20	Knob, Thermostat (White)
21	Plug, Door (White Cabinet)
21	Plug, Door (Black Cabinet)
22	Cover, Light
23	WP22002263 Whirlpool Dryer 10W Light Bulb
24	Grille (Black)
24	Grille (White)
25	Foot, Leveling (4)
26	Clip, Grille
