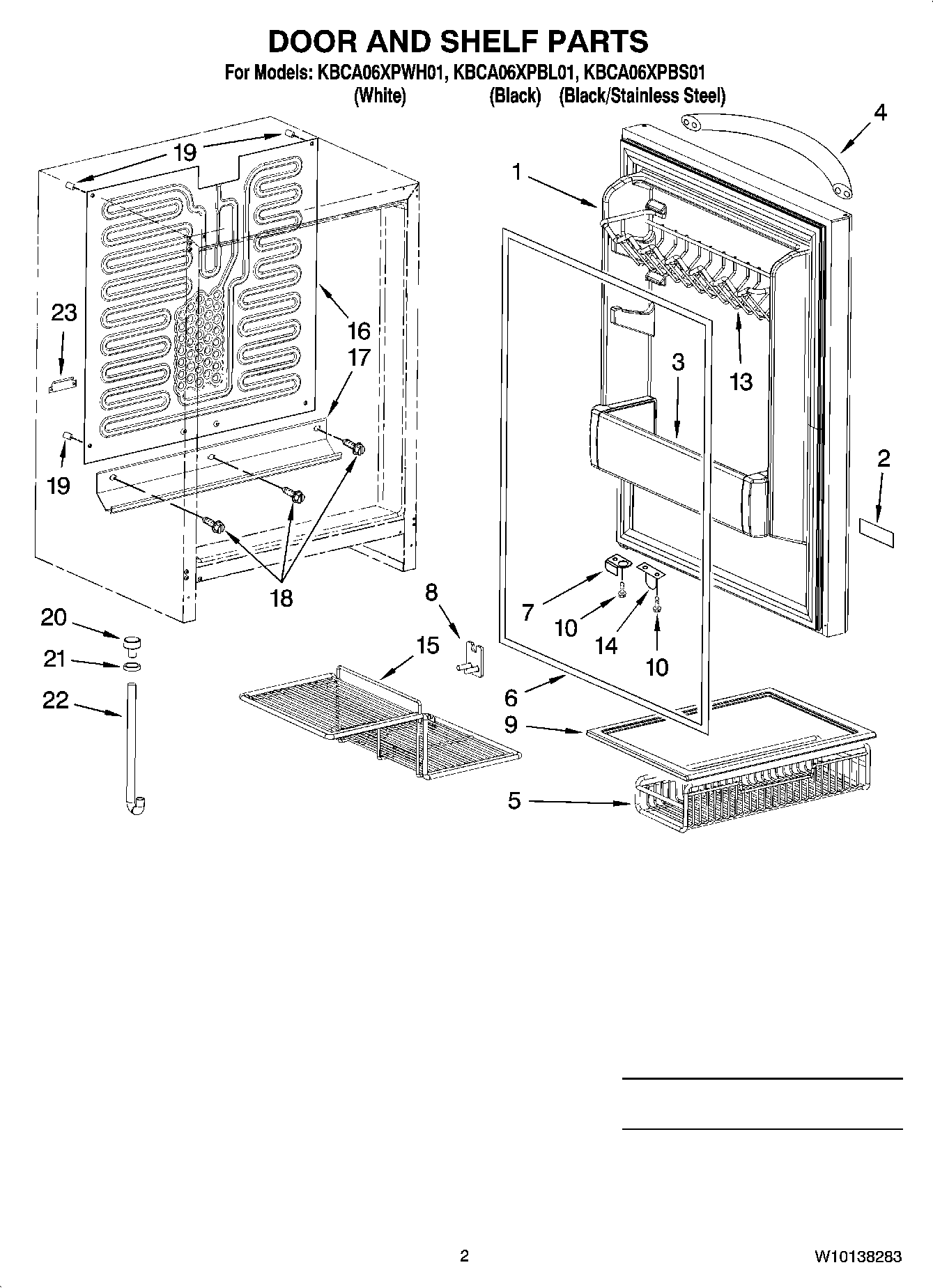

KBCA06XPBS01 02 – DOOR AND SHELF PARTS

Products

Position	Product
1	Door Assembly (Includes Gasket And Handle) (Black)
1	Door Assembly (Includes Gasket And Handle) (Stainless Steel)
1	Compression Nut
2	Nameplate
2	Nameplate (White)
3	W10323599 Whirlpool Refrigerator Cantilever Bin
4	Handle, Door (Black)
4	Handle, Door (White)
4	Handle, Door (Stainless)
5	Basket, Crisper
6	Gasket, Door (Grey)
6	Gasket, Door (Black)
6	Gasket, Door (White)
7	Plate, Pivot
7	Plate, Pivot (White)
8	Retainer, Shelf
9	Shelf, Crisper
10	WP8281227 Whirlpool Screw
13	Rack, Can
14	Bracket, Door Switch
15	Shelf, Wire
16	Evaporator
17	Channel, Drain
18	Rivet, Push-In
19	Spacer
20	Drain Cup
21	Washer, Foam
22	Tube, Drain
23	Clamp
23	CLEANER, STAINLESS STEEL (12 OZ)
23	OPTIONAL PARTS NOT ILLUSTRATED
