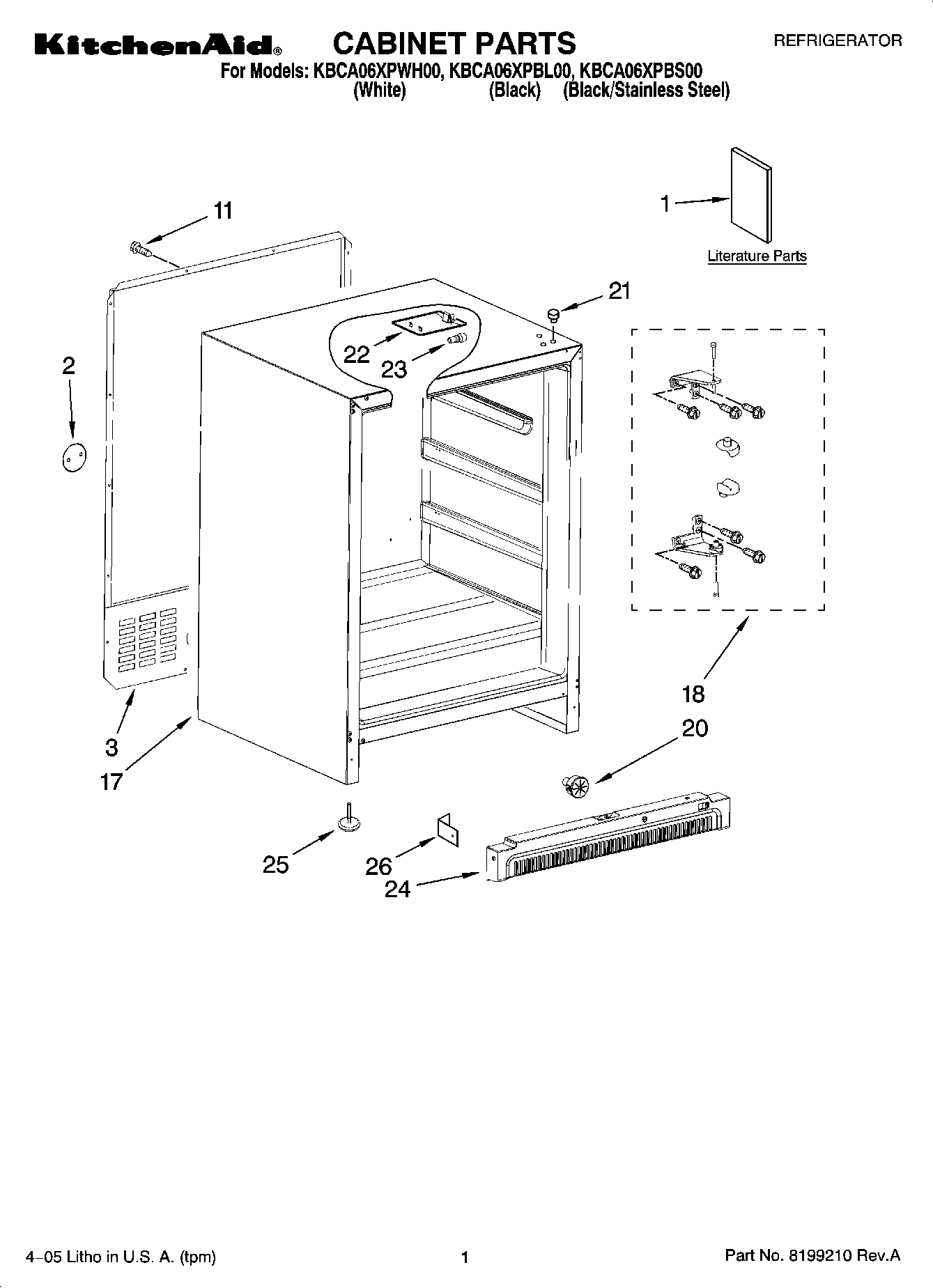

KBCA06XPWH00 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Wiring Diagram
1Energy Guide
2Cover, Hole
3Panel, Rear
11WP8281196 Whirlpool Screw
17Cabinet (Not A Serviceable Part)
18Hinge Assembly (Top & Bottom) (Stainless Steel)
18Hinge Assembly (Top & Bottom) (White)
18Hinge Assembly (Top & Bottom)
20Knob, Thermostat (Black)
20Knob, Thermostat (White)
21Plug, Door (White Cabinet)
21Plug, Door (Black Cabinet)
22Cover, Light
23WP22002263 Whirlpool Dryer 10W Light Bulb
24Grille (White)
24Grille (Black)
25Foot, Leveling (4)
26Clip, Grille
