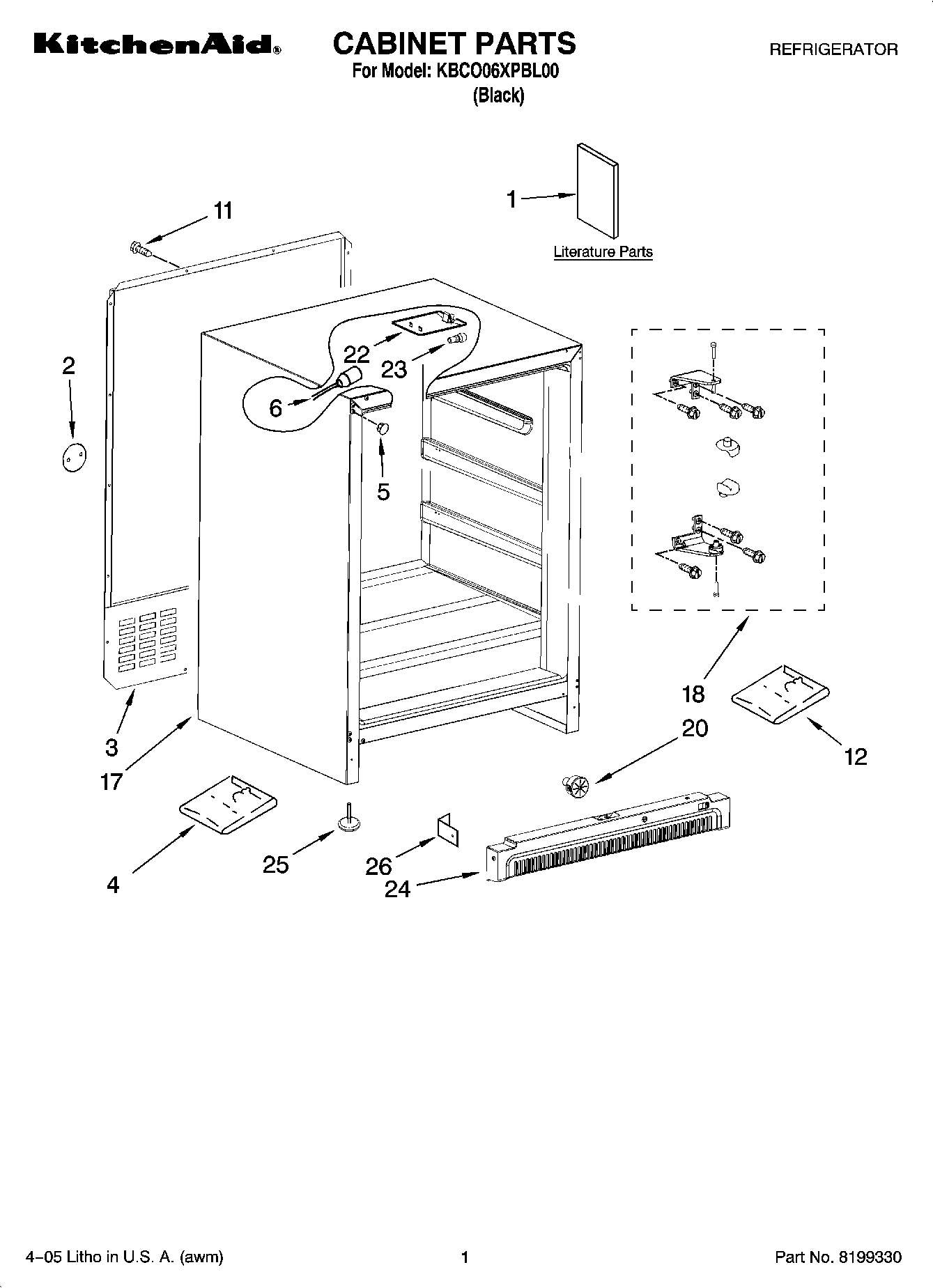

KBCO06XPBL00 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
1	Energy Guide
2	Cover, Hole
3	Panel, Rear
4	Kit, Hinges (Custom Wood Door)
5	Plug, Door (Black Cabinet)
6	Socket, Light
11	WP8281196 Whirlpool Screw
12	Kit, Spacers (Custom Wood Door)
17	Cabinet (Not A Serviceable Part)
18	Hinge Assembly (Top & Bottom)
20	Knob, Thermostat (Black)
22	Cover, Light
23	WP22002263 Whirlpool Dryer 10W Light Bulb
24	Grille (Black)
25	Foot, Leveling (4)
26	Clip, Grille
