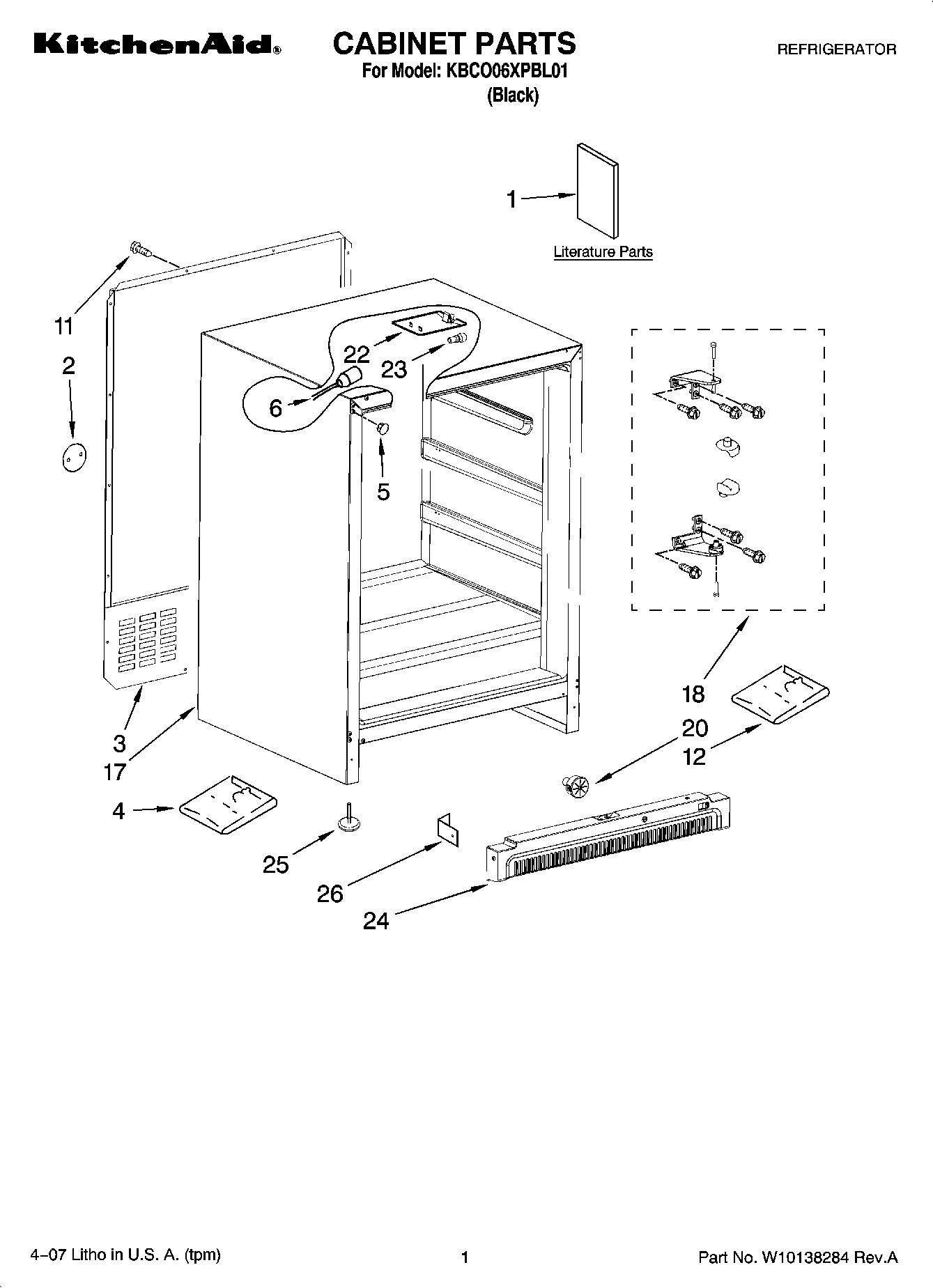

KBCO06XPBL01 01 – CABINET PARTSadmin2025-04-26T11:41:05+00:00KBCO06XPBL01 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | Wiring Diagram |
| 1 | Energy Guide |
| 1 | Use & Care Guide |
| 2 | Cover, Hole |
| 3 | Panel, Rear |
| 4 | Kit, Hinges (Custom Wood Door) |
| 5 | Plug, Door (Black Cabinet) |
| 6 | Socket, Light |
| 11 | WP8281196 Whirlpool Screw |
| 12 | Kit, Spacers (Custom Wood Door) |
| 17 | Cabinet, (Not A Serviceable Part) |
| 18 | Hinge Assembly (Top & Bottom) |
| 20 | Knob, Thermostat (Black) |
| 22 | Cover, Light |
| 23 | WP22002263 Whirlpool Dryer 10W Light Bulb |
| 24 | Grille (Black) |
| 25 | Foot, Leveling (4) |
| 26 | Clip, Grille |
