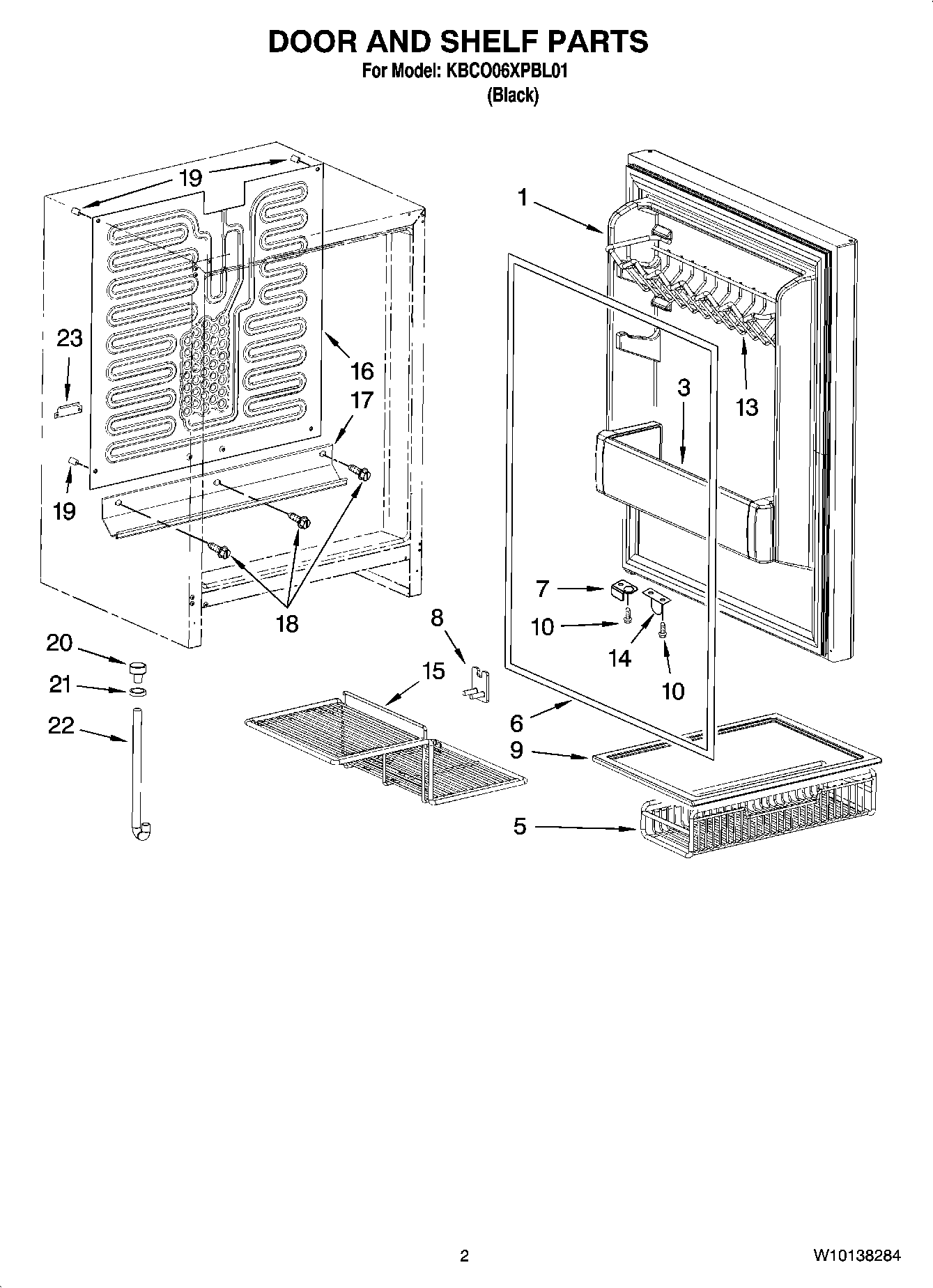

KBCO06XPBL01 02 – DOOR AND SHELF PARTS

Products

Position	Product
1	Door Assembly (Includes Gasket)
3	W10323599 Whirlpool Refrigerator Cantilever Bin
5	Basket, Crisper
6	Gasket, Door (Black)
7	Plate, Pivot
8	Retainer, Shelf
9	Shelf, Crisper
10	WP8281227 Whirlpool Screw
13	Rack, Can
14	Bracket, Door Switch
15	Shelf, Wire
16	Evaporator
17	Channel, Drain
18	Rivet, Push-In
19	Spacer
20	Drain Cup
21	Washer, Foam
22	Tube, Drain
23	Clamp
