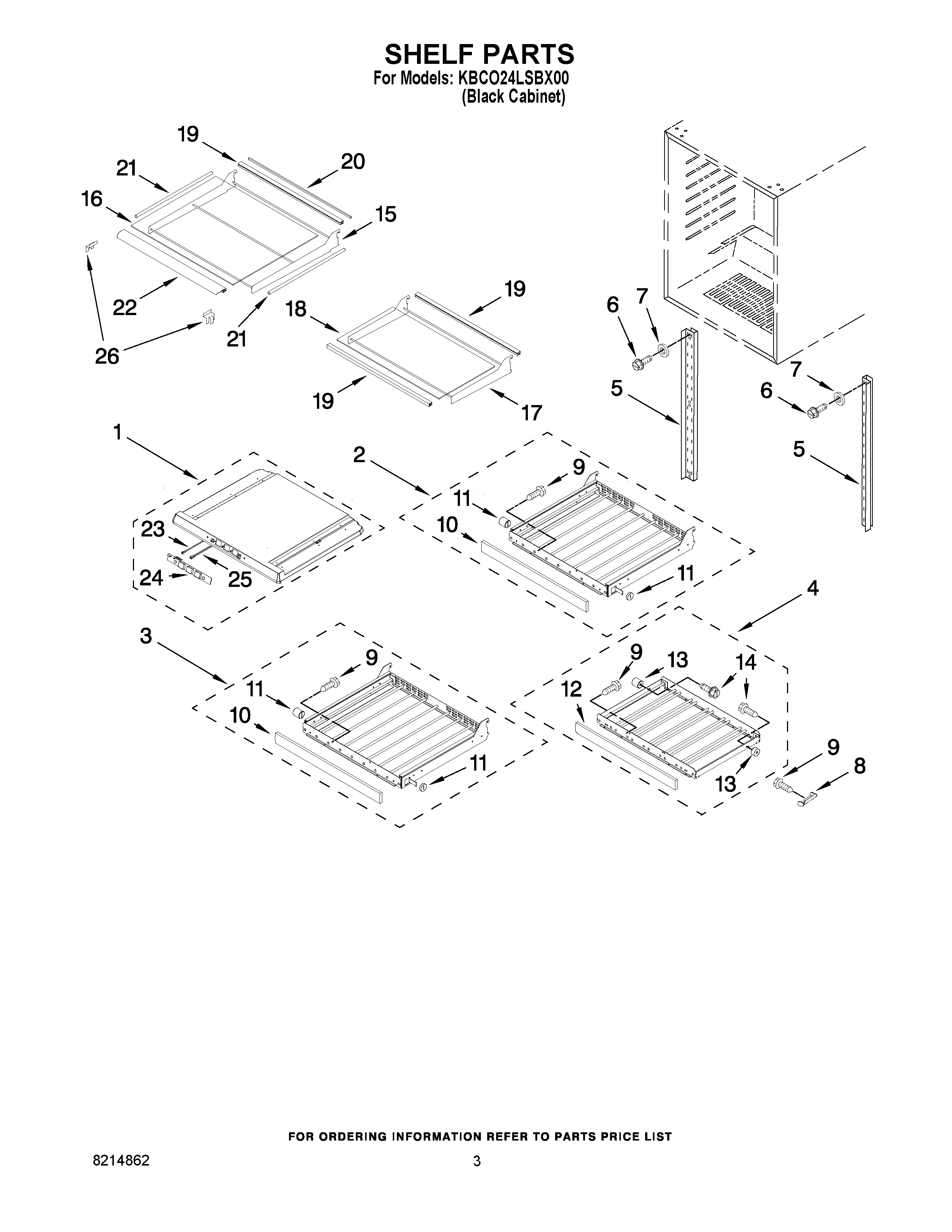

KBCO24LSBX00 02 – SHELF PARTS

Products

Position	Product
1	W10631952 Whirlpool Refrigerator Separator
2	Wine Rack, (4)
3	Wine Rack, (1)
4	Wine Rack, Lower
5	Ladder, Shelf (Right Side)
5	Ladder, Shelf (Left Side)
6	Screw
7	Washer
8	Stop, Lower Rack
9	Screw
10	Trim, Top And Middle Racks
11	Support (Left)
11	Support (Right)
12	Trim, Lower Rack
13	Support, Bumper (Left)
13	4344886 Whirlpool Support
14	Screw (Left)
14	Screw (Right)
15	Shelf, Large
16	Glass, Shelf
17	Shelf, Small
18	Glass, Shelf
19	TRIM, REAR
20	Seal, Rear
21	Seal, Side (2)
22	Seal, Front
23	Transformer Cable
24	WPW10238180 Whirlpool Refrigerator Display
25	Cable
26	Support, Shelf (Large)
