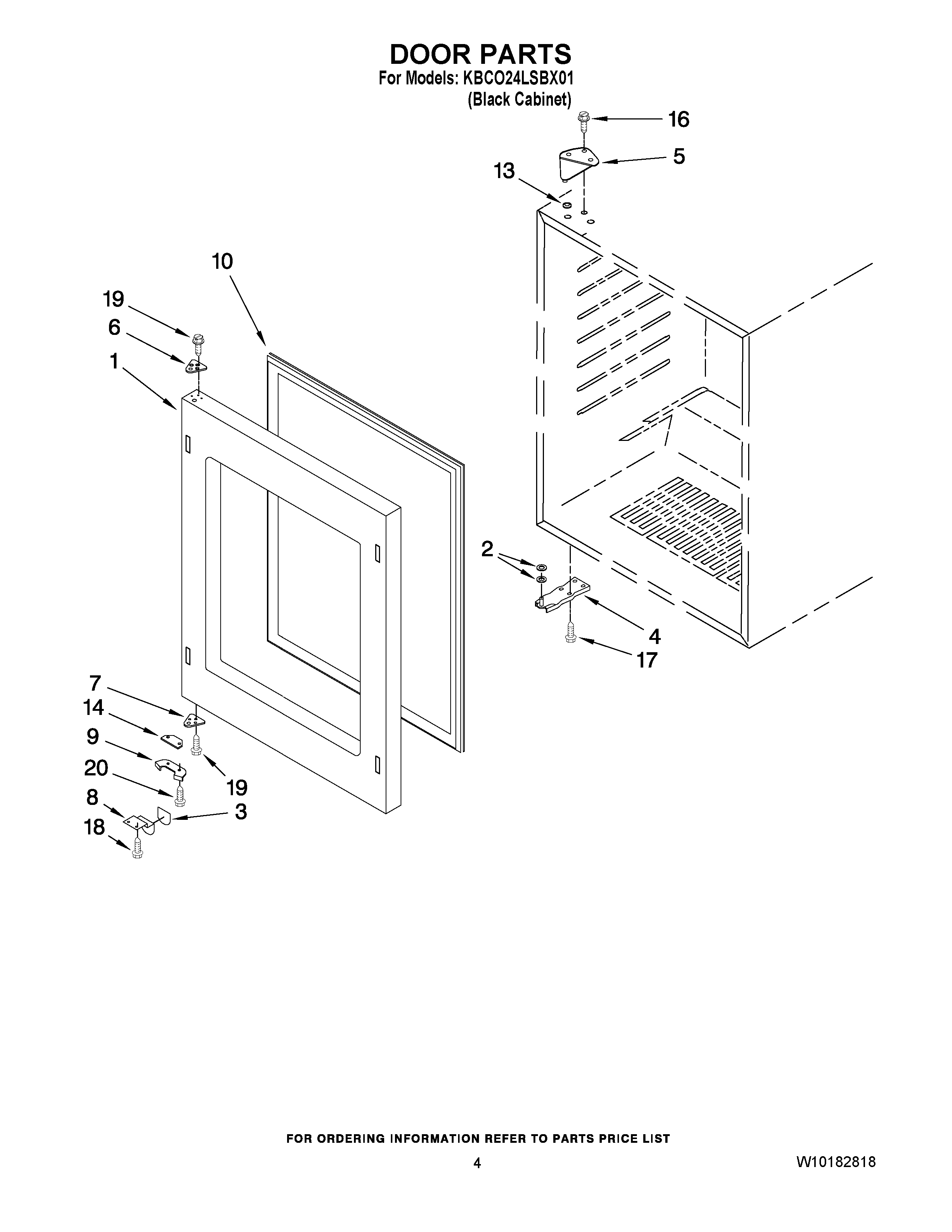

KBCO24LSBX01 03 – DOOR PARTS

KBCO24LSBX01 03 – DOOR PARTS

Written by

in

KBCO24LSBX01 03 – DOOR PARTS

Products

PositionProduct
NIInstallation Kit, Door Panel
1Door Assembly (Includes Gasket)
2W11241702 Whirlpool Refrigerator Washer
3GASKET-PUSH PLATE
44344787 Whirlpool Refrigerator Door Hinge
54344754 Whirlpool Refrigerator Door Hinge
64344804 Whirlpool Spacer
74344798 Whirlpool Spacer
84344757 Whirlpool Refrigerator Bracket
94344802 Whirlpool Bracket Assembly
10WPW10238068 Whirlpool Refrigerator Gasket
134344760 Whirlpool Refrigerator Washer
144344803 Whirlpool Spacer
164344796 Whirlpool Refrigerator Screw
17Screw, Lower Hinge (Quantity 1)
174344797 Whirlpool Screw
18SCREW
19Screw
204344801 Whirlpool Refrigerator Screw
