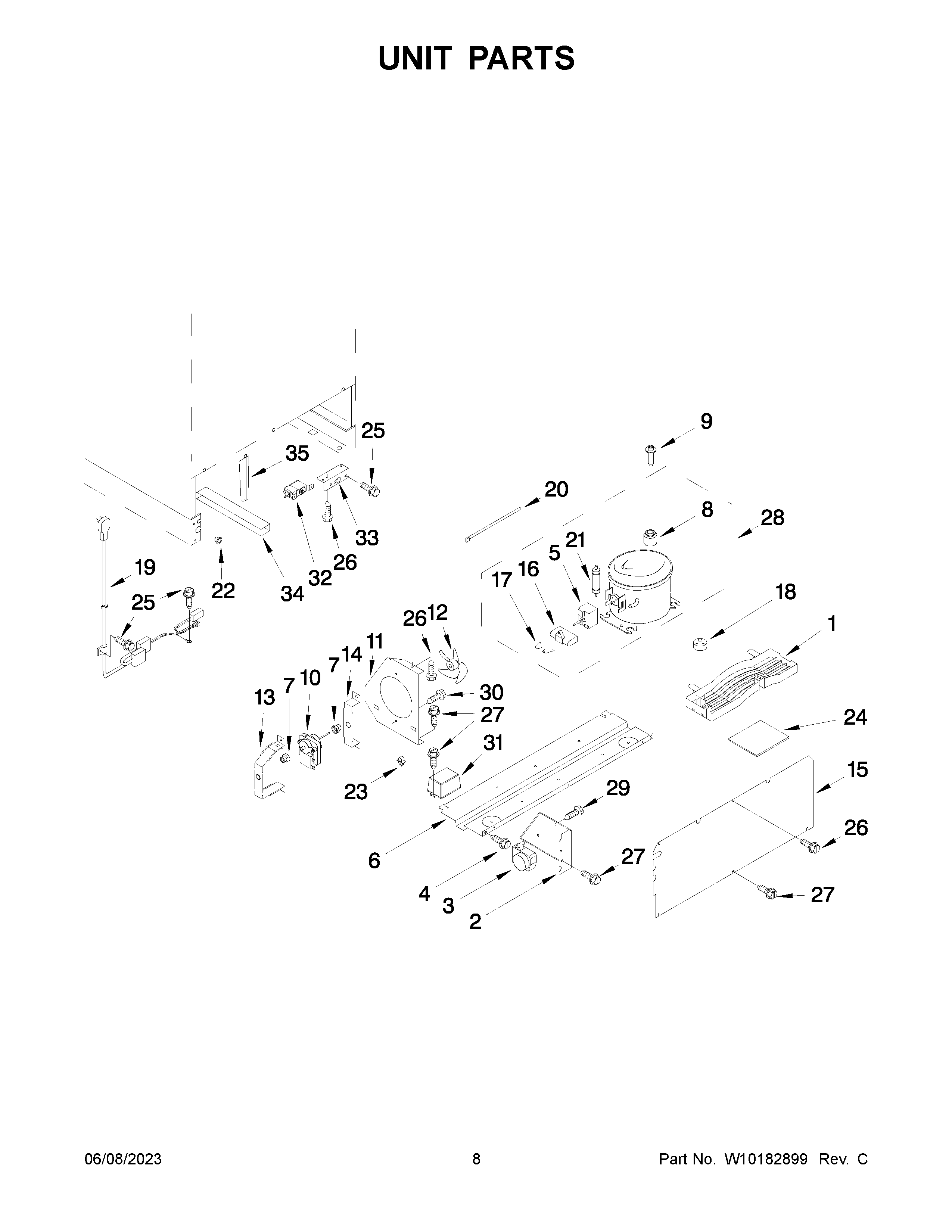

KBCO24RSBX01 05 – UNIT PARTSadmin2025-04-26T11:47:03+00:00KBCO24RSBX01 05 – UNIT PARTS ProductsPositionProductNICABINET (NOT A SERVICEABLE PART)1Drain Pan2BRACKET, DEFROST TIMER3W11609704 Whirlpool Refrigerator Defrost Timer44344797 Whirlpool Screw5WP4344776 Whirlpool Refrigerator Start Device6Mounting Plate, Compressor7Grommet, Fan Motor8WP4344779 Whirlpool Refrigerator Grommet9W10772873 Whirlpool Screw10WPW10299090 Whirlpool Refrigerator Condenser Motor11Baffle, Air12W10315091 Whirlpool Refrigerator Evaporator Motor134344784 Whirlpool Bracket144344785 Whirlpool Bracket154344786 Whirlpool Back Cover16WP1188476 Whirlpool Air Conditioner Capacitor17WP4344836 Whirlpool Clip18W10163276 Whirlpool Refrigerator Trap19Power Cord204344829 Whirlpool Tie Wire21W10163273 Whirlpool Refrigerator Tube22Bushing23Clip, Bushing24W10163274 Whirlpool Pad254344826 Whirlpool Refrigerator Screw26SCREW27W11380570 Whirlpool Microwave Screw288201787 Whirlpool Refrigerator Compressor29Screw30WP90767 Whirlpool Screw31W10238070 Whirlpool Refrigerator Transformer32W10163278 Whirlpool Refrigerator Thermostat33Bracket, Thermostat34TRIM, EDGE35Support, Drain
