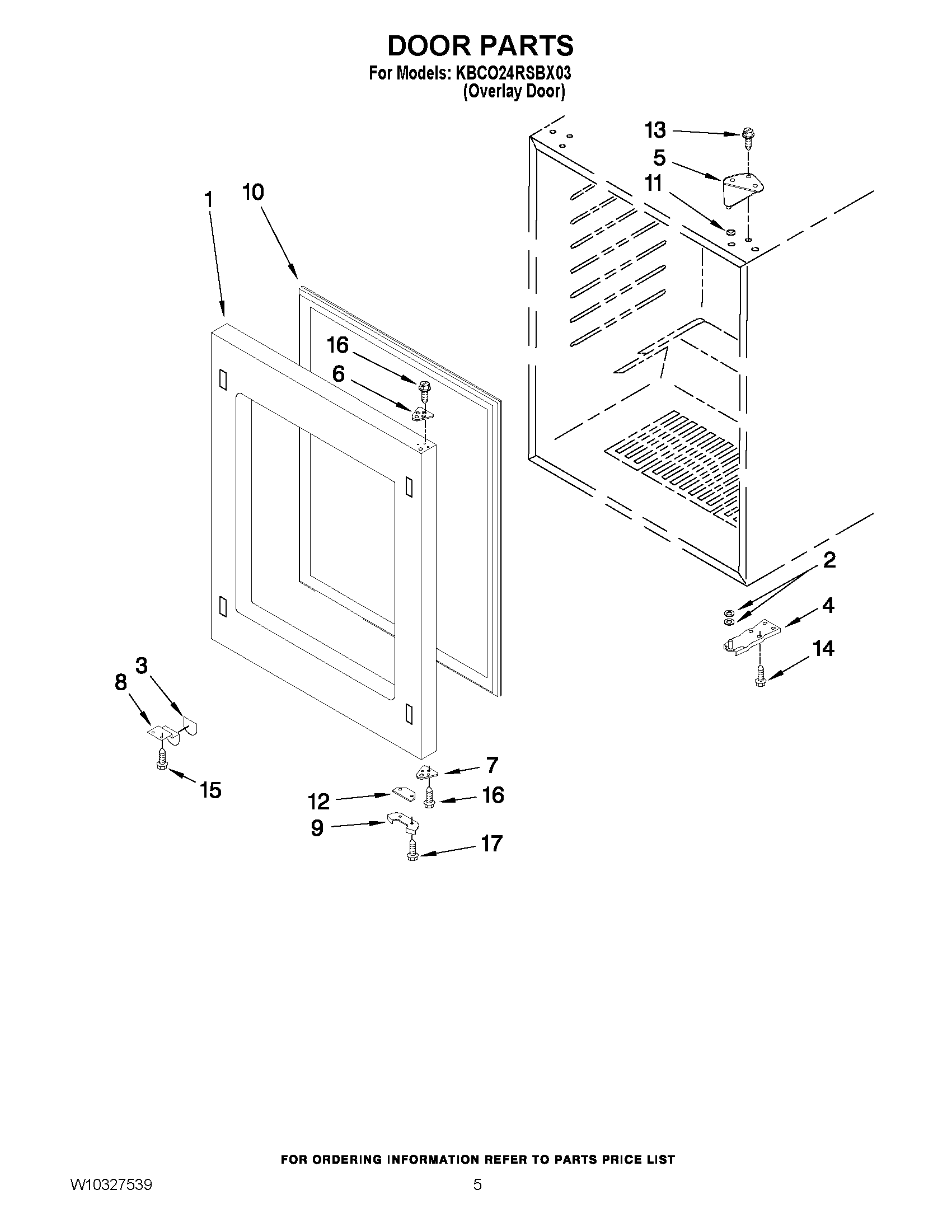

KBCO24RSBX03 03 – DOOR PARTS

KBCO24RSBX03 03 – DOOR PARTS

Written by

in

KBCO24RSBX03 03 – DOOR PARTS

Products

PositionProduct
NIInstallation Kit, Door Panel
1Door Assembly (Includes Gasket)
2W11241702 Whirlpool Refrigerator Washer
3GASKET-PUSH PLATE
4W10239363 Whirlpool Refrigerator Door Hinge
54344754 Whirlpool Refrigerator Door Hinge
64344804 Whirlpool Spacer
74344798 Whirlpool Spacer
84344757 Whirlpool Refrigerator Bracket
94344802 Whirlpool Bracket Assembly
10WPW10238068 Whirlpool Refrigerator Gasket
114344760 Whirlpool Refrigerator Washer
124344803 Whirlpool Spacer
134344796 Whirlpool Refrigerator Screw
14Screw, Lower Hinge (Quantity 1)
14Screw
15W10837731 Whirlpool Screw Assembly
16Screw
174344801 Whirlpool Refrigerator Screw
