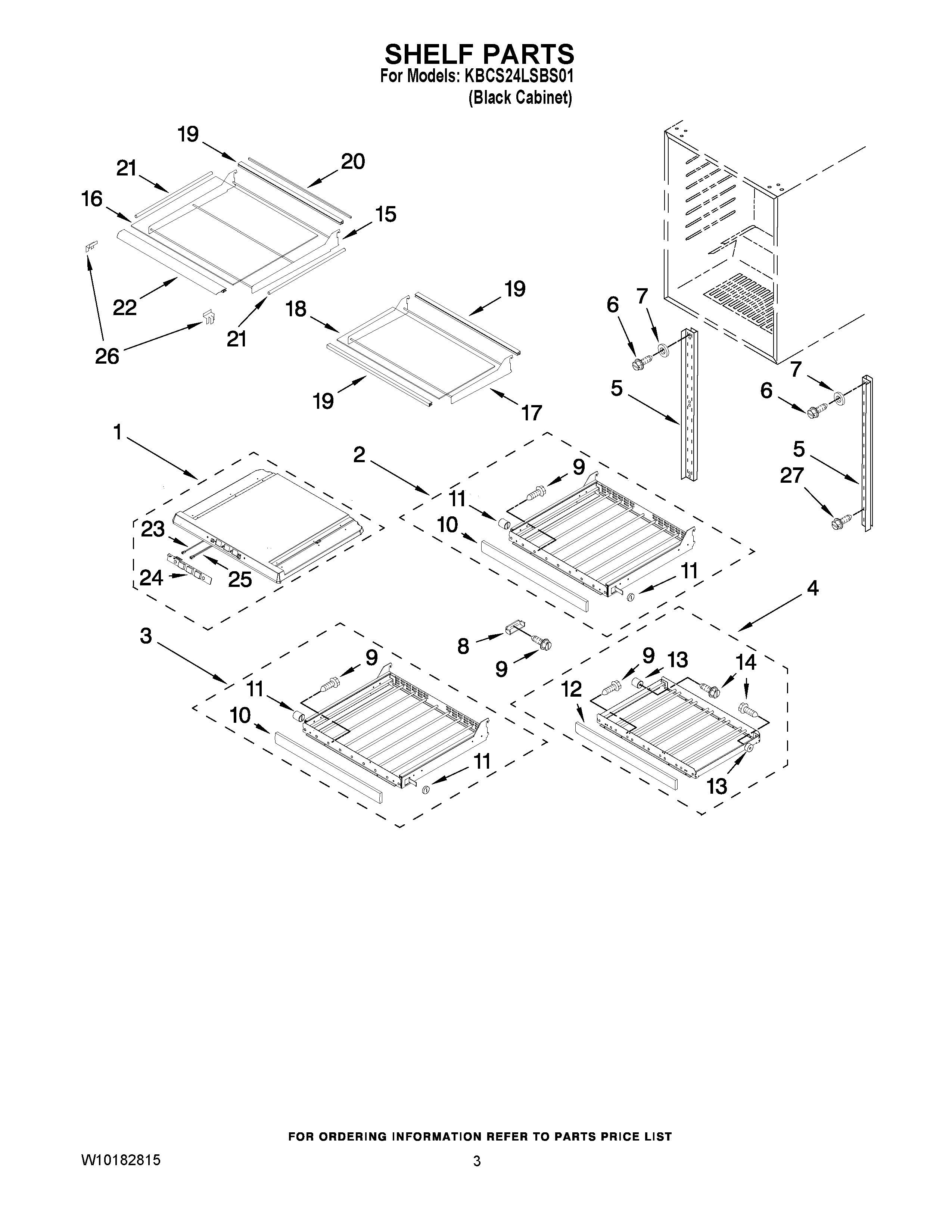

KBCS24LSBS01 02 – SHELF PARTSadmin2025-04-26T11:42:49+00:00KBCS24LSBS01 02 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | W10631952 Whirlpool Refrigerator Separator |
| 2 | Wine Rack, (4) |
| 3 | Wine Rack, (1) |
| 4 | Wine Rack, Lower |
| 5 | Ladder, Shelf (Right Side) |
| 5 | Ladder, Shelf (Left Side) |
| 6 | Screw |
| 7 | Washer |
| 8 | Stop, Lower Rack |
| 9 | Screw |
| 10 | Trim, Top And Middle Racks |
| 11 | Support (Left) |
| 11 | Support (Right) |
| 12 | Trim, Lower Rack |
| 13 | Support, Bumper (Left) |
| 13 | 4344886 Whirlpool Support |
| 14 | Screw (Left) |
| 14 | Screw (Right) |
| 15 | Shelf, Large |
| 16 | Glass, Shelf |
| 17 | Shelf, Small |
| 18 | Glass, Shelf |
| 19 | TRIM, REAR |
| 20 | Seal, Rear |
| 21 | Seal, Side (2) |
| 22 | Seal, Front |
| 23 | Transformer Cable |
| 24 | WPW10238180 Whirlpool Refrigerator Display |
| 25 | Cable |
| 26 | Support, Shelf (Large) |
| 27 | SCREW W/WASHER |
