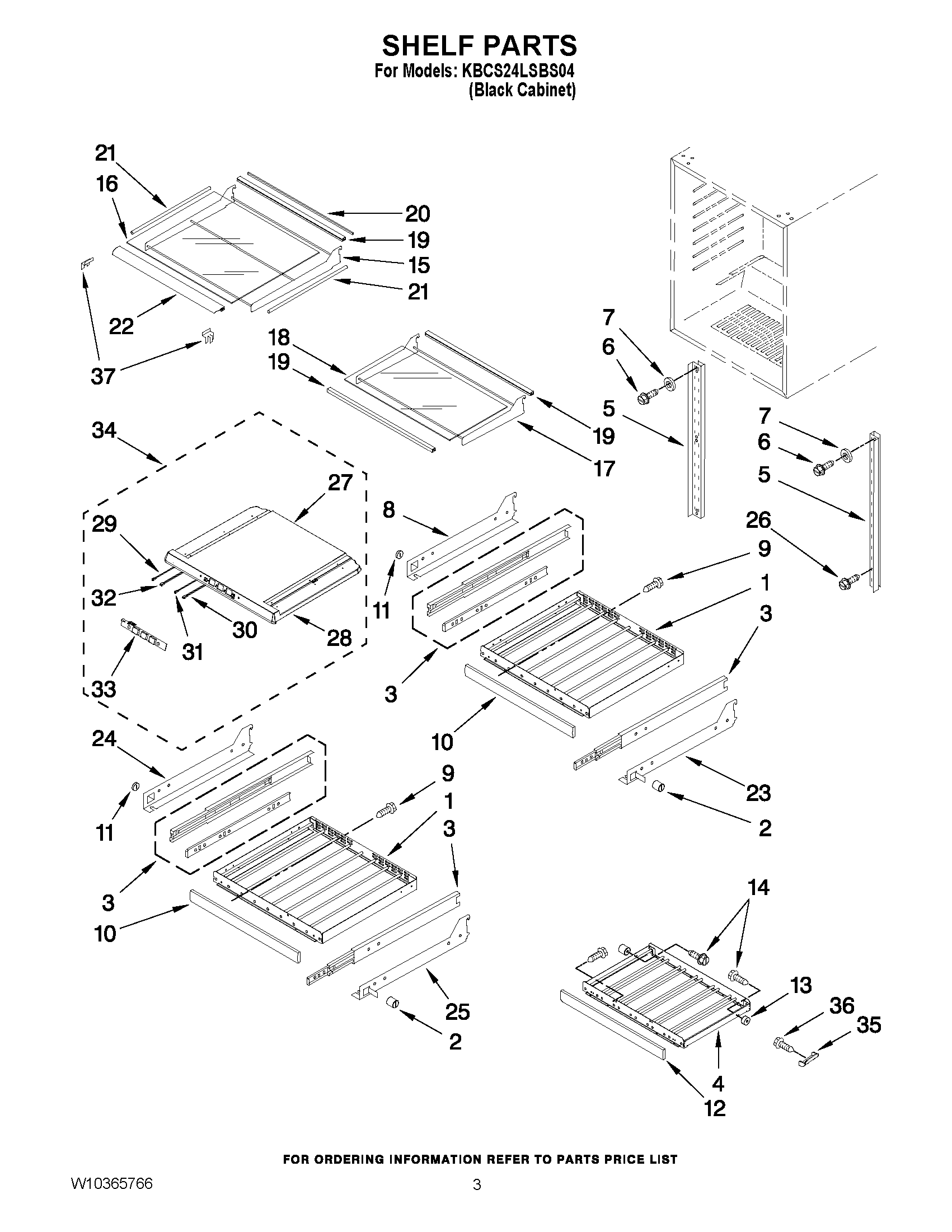

KBCS24LSBS04 02 – SHELF PARTS

Products

Position	Product
NI	LED Spacer
NI	Support
NI	Screw, LED
NI	SCREW, SUPPORT
NI	SEAL
NI	Support Spacer
NI	SCREW
1	Wine Rack Top & Middle
2	Support (Left)
3	Rail Assembly
4	Wine Rack, Lower
5	LADDER, SHELF (RIGHT SIDE)
5	LADDER, SHELF (LEFT SIDE)
6	Screw
7	Washer
8	Shelf Support
9	Screw
10	TRIM, TOP AND MIDDLE RACKS
11	Support (Right)
12	TRIM, LOWER RACK
13	Support, Bumper (Left)
13	4344886 Whirlpool Support
14	Screw (Right)
14	Screw (Left)
15	Shelf, Large
16	Glass, Shelf
17	Shelf, Small
18	Glass, Shelf
19	TRIM, REAR
20	Seal, Rear
21	Seal, Side (2)
22	Seal, Front
23	Shelf Support
24	Shelf Support
25	Shelf Support
26	SCREW W/WASHER
27	Top Cover
28	Bottom Cover
29	W10238024 Whirlpool Wire
30	W10238026 Whirlpool Refrigerator Sensor
31	W10238025 Whirlpool Refrigerator Sensor
32	Extension Cable
33	WPW10238180 Whirlpool Refrigerator Display
34	W10801437 Whirlpool Refrigerator Separator
35	Stop, Lower Rack
36	W10281318 Whirlpool Refrigerator Screw
37	Support, Shelf (Large)
