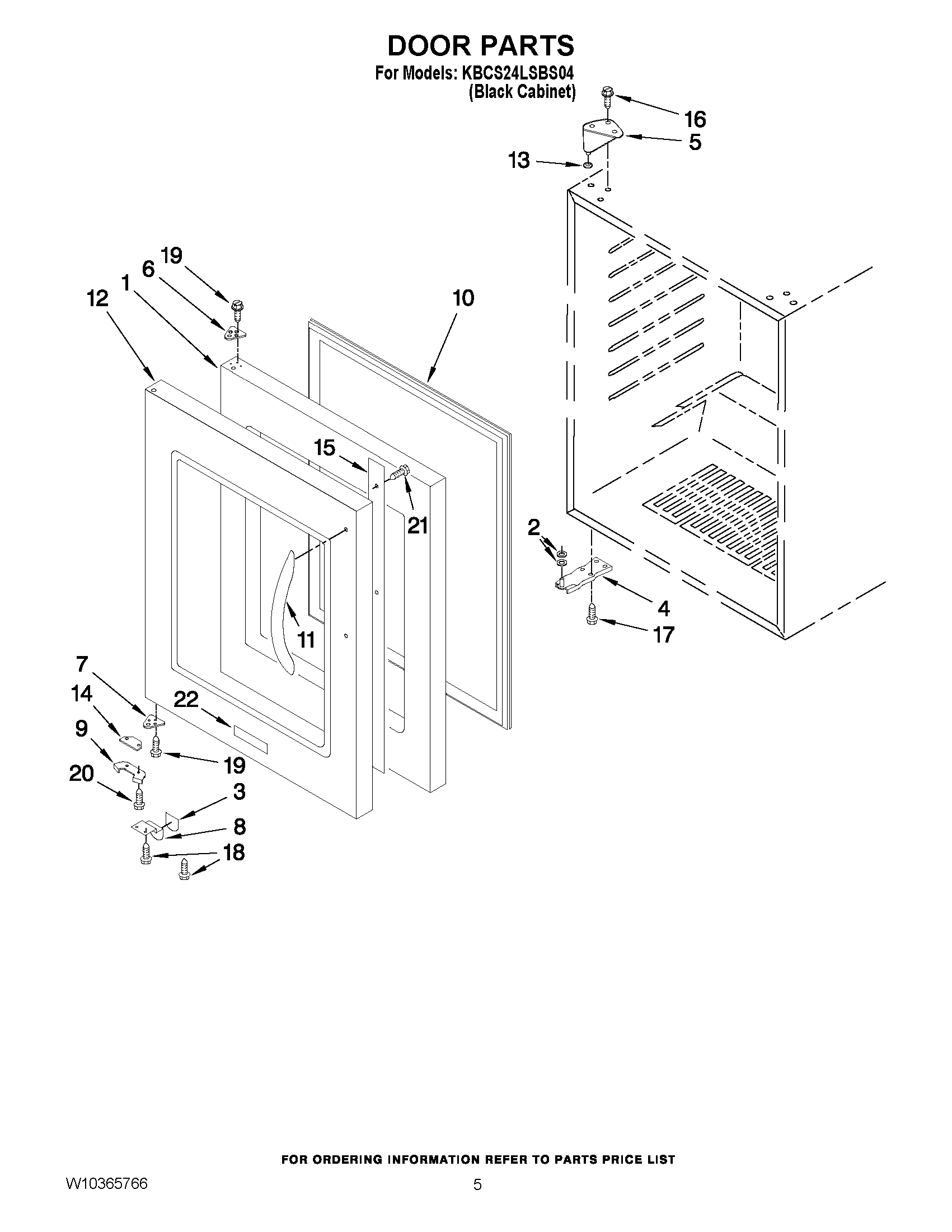

KBCS24LSBS04 03 – DOOR PARTS

Products

Position	Product
NI	CLEANER, STAINLESS STEEL (12 OZ)
1	BRACKET, THERMOSTAT
2	W11241702 Whirlpool Refrigerator Washer
3	GASKET-PUSH PLATE
4	4344787 Whirlpool Refrigerator Door Hinge
5	4344754 Whirlpool Refrigerator Door Hinge
6	4344755 Whirlpool Refrigerator Spacer
7	4344756 Whirlpool Refrigerator Spacer
8	4344757 Whirlpool Refrigerator Bracket
9	DOOR STOP
10	WPW10238068 Whirlpool Refrigerator Gasket
11	WP9872207S Whirlpool Refrigerator Handle
12	DOOR SKIN, (STAINLESS STEEL)
13	4344760 Whirlpool Refrigerator Washer
14	4344803 Whirlpool Spacer
15	Plate
16	4344796 Whirlpool Refrigerator Screw
17	Screw, Lower Hinge (Quantity 1)
17	Screw
18	W10837731 Whirlpool Screw Assembly
19	W10243123 Whirlpool Refrigerator Screw
20	4344801 Whirlpool Refrigerator Screw
21	SCREW, HANDLE
22	NAME PLATE
