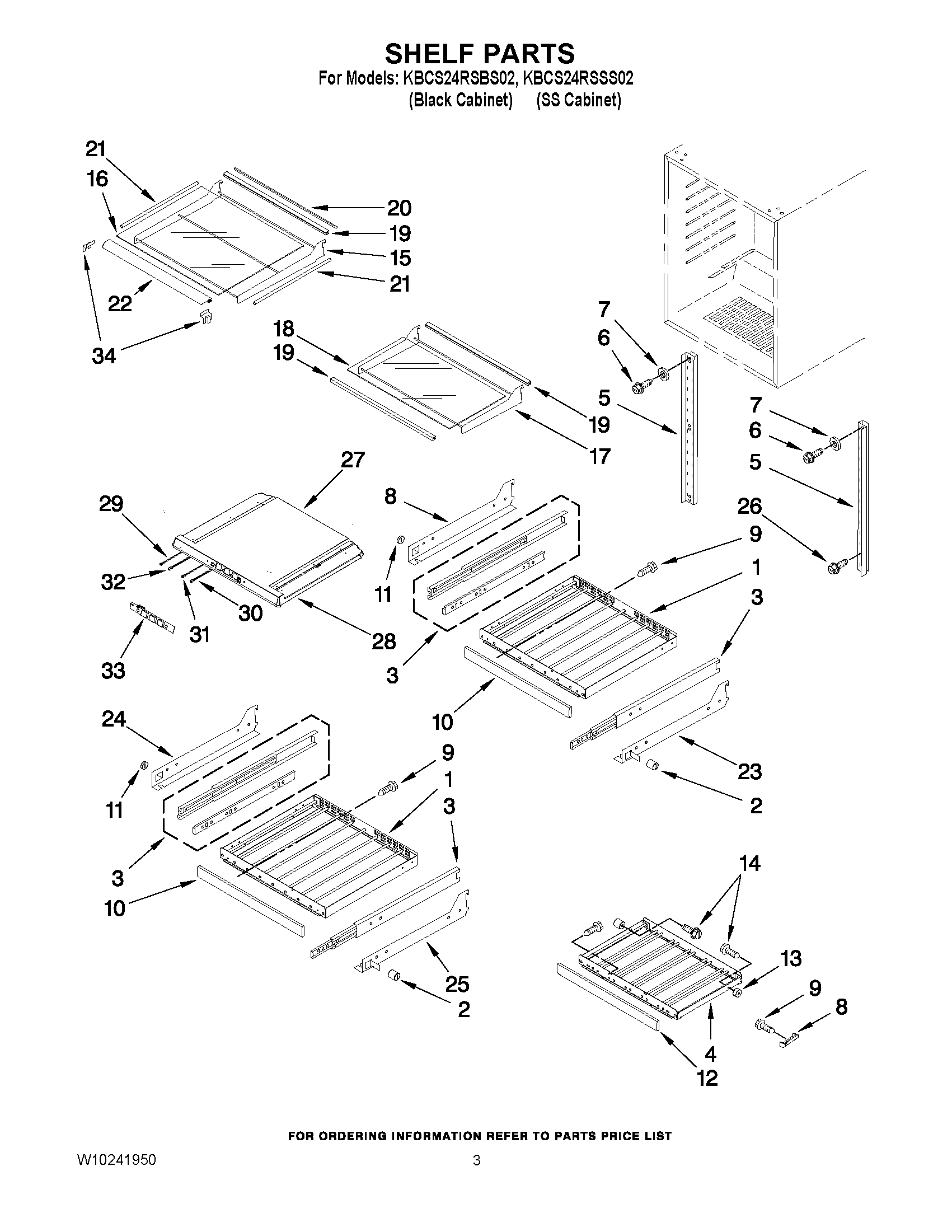

KBCS24RSSS02 02 – SHELF PARTSadmin2025-04-26T11:40:02+00:00KBCS24RSSS02 02 – SHELF PARTS
Products
| Position | Product |
|---|
| NI | Screw, Support |
| NI | Support Spacer |
| NI | Support |
| NI | Seal |
| NI | SCREW |
| NI | LED Spacer |
| NI | SCREW, SUPPORT |
| NI | Screw, LED |
| 1 | Wine Rack Top & Middle |
| 2 | Support (Right) |
| 3 | Rail Assembly |
| 4 | Wine Rack, Lower |
| 5 | Ladder, Shelf (Right Side) |
| 5 | Ladder, Shelf (Left Side) |
| 6 | Screw |
| 7 | Washer |
| 8 | Shelf Support |
| 9 | Screw |
| 10 | Trim, Top And Middle Racks |
| 11 | Support (Left) |
| 12 | Trim, Lower Rack |
| 13 | Support, Bumper (Left) |
| 13 | 4344886 Whirlpool Support |
| 14 | Screw (Right) |
| 14 | Screw (Left) |
| 15 | Shelf, Large |
| 16 | Glass, Shelf |
| 17 | Shelf, Small |
| 18 | Glass, Shelf |
| 19 | TRIM, REAR |
| 20 | Seal, Rear |
| 21 | Seal, Side (2) |
| 22 | Seal, Front |
| 23 | Shelf Support |
| 24 | Shelf Support |
| 25 | Shelf Support |
| 26 | SCREW W/WASHER |
| 27 | Top Cover |
| 28 | Bottom Cover |
| 29 | W10238024 Whirlpool Wire |
| 30 | W10238026 Whirlpool Refrigerator Sensor |
| 31 | W10238025 Whirlpool Refrigerator Sensor |
| 32 | Extension Cable |
| 33 | WPW10238180 Whirlpool Refrigerator Display |
| 34 | Support, Shelf (Large) |
