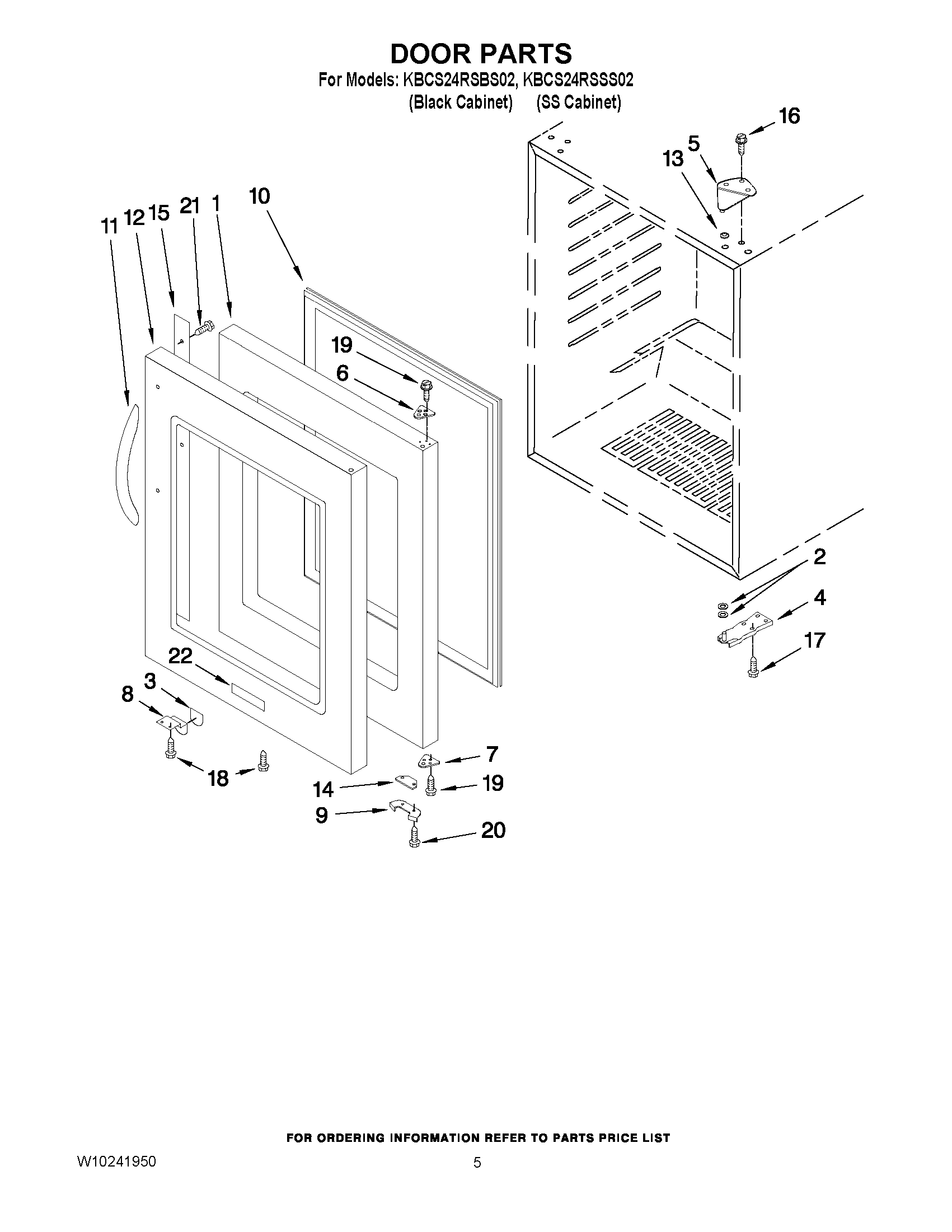

KBCS24RSSS02 03 – DOOR PARTS

Products

PositionProduct
NICLEANER, STAINLESS STEEL (12 OZ)
1Door Assembly (Includes Gasket)
2W11241702 Whirlpool Refrigerator Washer
3GASKET-PUSH PLATE
4W10239363 Whirlpool Refrigerator Door Hinge
54344754 Whirlpool Refrigerator Door Hinge
64344755 Whirlpool Refrigerator Spacer
74344756 Whirlpool Refrigerator Spacer
84344757 Whirlpool Refrigerator Bracket
94344758 Whirlpool Refrigerator Bracket
10WPW10238068 Whirlpool Refrigerator Gasket
11WP9872207S Whirlpool Refrigerator Handle
12Door Skin, Stainless Steel
134344760 Whirlpool Refrigerator Washer
144344788 Whirlpool Refrigerator Spacer
15Plate
164344796 Whirlpool Refrigerator Screw
17Screw, Lower Hinge (Quantity 1)
17Screw
18W10837731 Whirlpool Screw Assembly
19W10243123 Whirlpool Refrigerator Screw
204344801 Whirlpool Refrigerator Screw
21SCREW, HANDLE
22NAME PLATE
