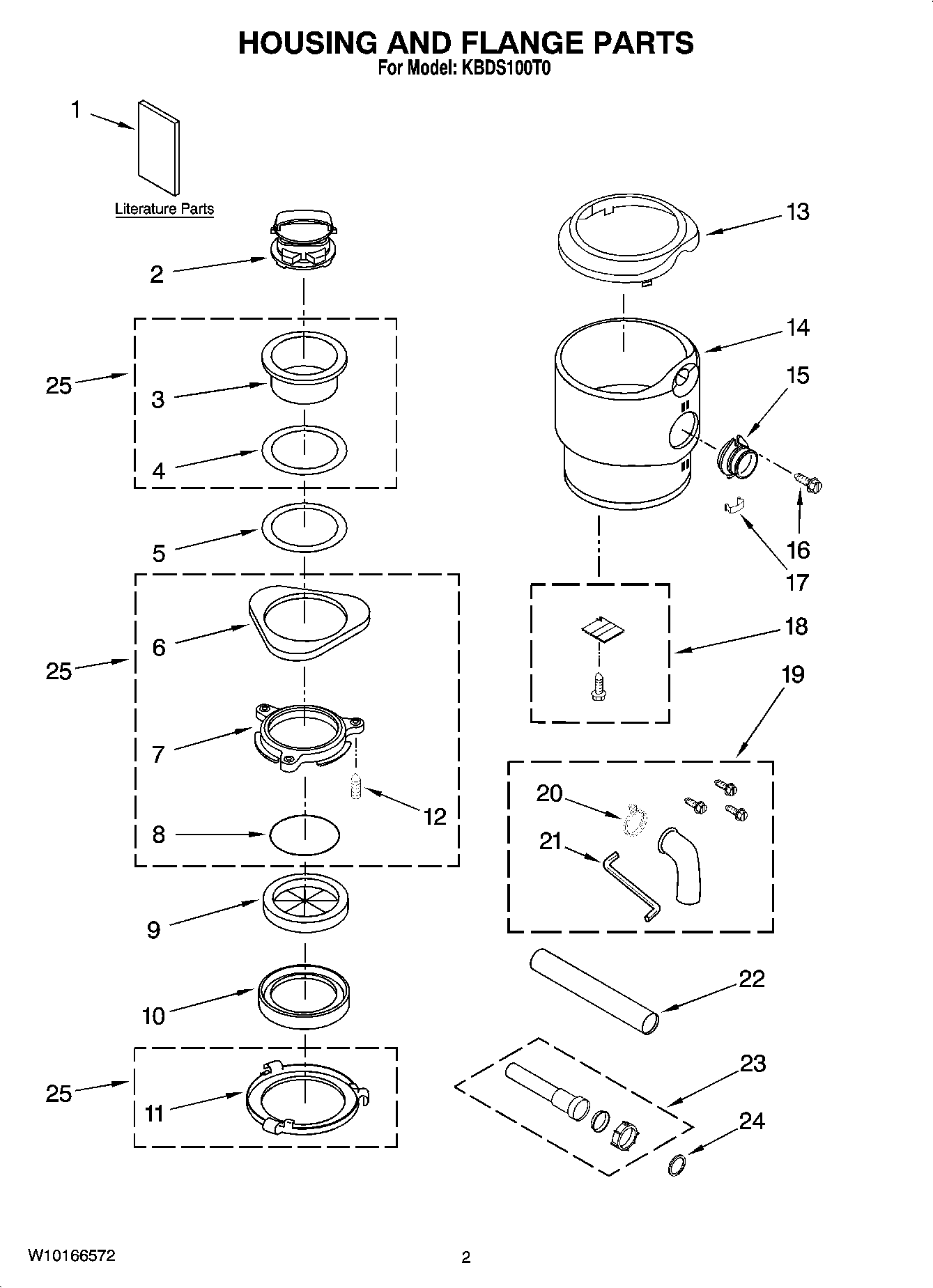

KBDS100T0 01 – HOUSING AND FLANGE PARTS

KBDS100T0 01 – HOUSING AND FLANGE PARTS

Written by

in

KBDS100T0 01 – HOUSING AND FLANGE PARTS

Products

PositionProduct
OPTIONAL PARTS NOT ILLUSTRATED
WPKBDS100TA Whirlpool Disposer
W10175941 Whirlpool Disposer Flange
1Guide, Use & Care
1Repair Parts List
2W10171477A Whirlpool Garbage Disposal Stopper
3Flange, Sink
44211606 Whirlpool Disposer Seal
5WP4211302 Whirlpool Disposer Seal
6Flange, Backup
74211304 Whirlpool Flange Disposer
84211306 Whirlpool Disposer Ring
9Baffle, Sink Guard
10Gasket, Mounting
11Flange, Body
12Screw, Backup
13Trim, Shell (Cap)
14Shell, Trim
15W10352995 Whirlpool Disposer Coupler
16Screw
17Clip
18Cover, Terminal
19W10171110A Whirlpool Disposer Installation Kit
20W11622908 Whirlpool Dishwasher Clamp
21WP8174310 Whirlpool Disposer Wrench
22Tube, Discharge
23Tube, Extension Assembly
24W10171481 Whirlpool Flange
25W10179031A Whirlpool Disposer Flange Kit
