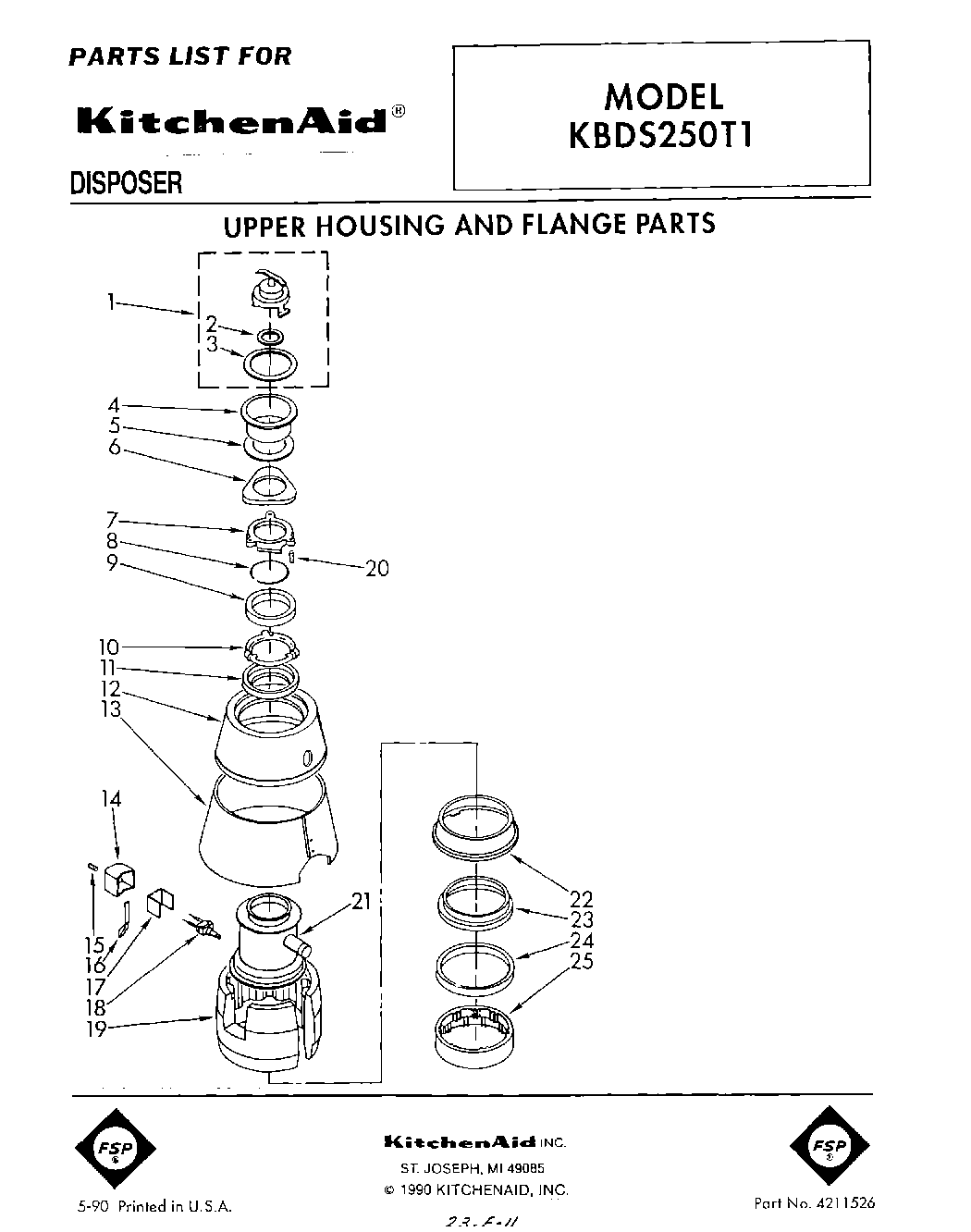

KBDS250T1 01 – SECTION

Products

PositionProduct
Repair Parts List
Instructions, Installation
Guide, Use And Care
1Lock Stopper Assembly
24211355 Whirlpool Disposer Gasket
3Gasket, Stopper (Outer)
44211301 Whirlpool Disposer Flange
5WP4211302 Whirlpool Disposer Seal
64211303 Whirlpool Disposer Flange
74211304 Whirlpool Flange Disposer
84211306 Whirlpool Disposer Ring
9Gasket, Mounting
10Flange, Body
11Gasket, Body
12Shell Assembly, Trim (Top)
13Band Assembly, Trim
14Cover, Switch
15Screw, Tapping (Switch Cover)
16Bracket, Wire Cover
17Insulation, Switch Cover
18Switch, Pushbutton
19Insulation, Top
204211305 Whirlpool Disposer Screw
21Container, Body Assembly (Includes Sound Insulation)
22Body, Lower
23Gasket, Shredder
24Insulation, Sound
25Shredder, Stationary
