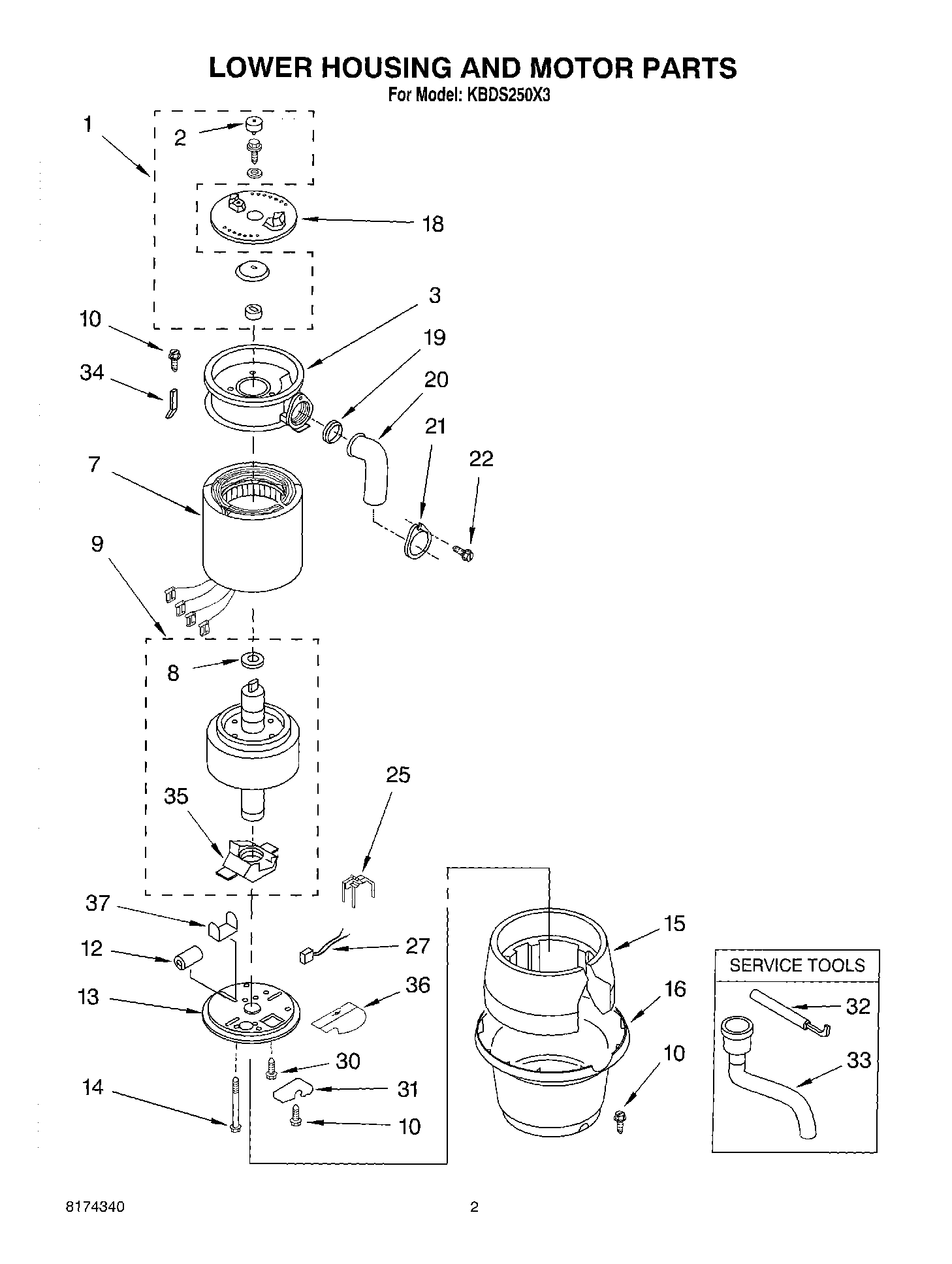

| 2 | 4211578 Whirlpool Disposer Sleeve |
| 3 | End Bell Assembly, Upper |
| 7 | Stator Assembly |
| 8 | 4211321 Whirlpool Washer |
| 9 | Shaft Assembly (Includes 8 & 35) |
| 10 | WP98008545 Whirlpool Screw |
| 12 | Capacitor |
| 13 | End Frame, Assembly (Lower) |
| 14 | Bolt, Thru |
| 15 | Insulation, Bottom |
| 16 | Trim, Shell Assembly |
| 18 | Shredder Assembly, Rotating |
| 19 | Gasket, Tailpipe |
| 20 | 4211317 Whirlpool Disposer Tail Pipe |
| 21 | Flange, Tailpipe |
| 22 | WP8204624 Whirlpool Bolt |
| 25 | Switch Assembly, Start & Reverse |
| 27 | Overload, Protector |
| 30 | Screw, Tailpipe |
| 31 | Cover, Terminal |
| 32 | WP8174310 Whirlpool Disposer Wrench |
| 33 | 4211396 Whirlpool Disposer Adapter |
| 34 | Shield, Wire Cover |
| 35 | 4211322 Whirlpool Disposer Actuator |
| 36 | Shield, Wire |
| 37 | Clip, Capacitor |
