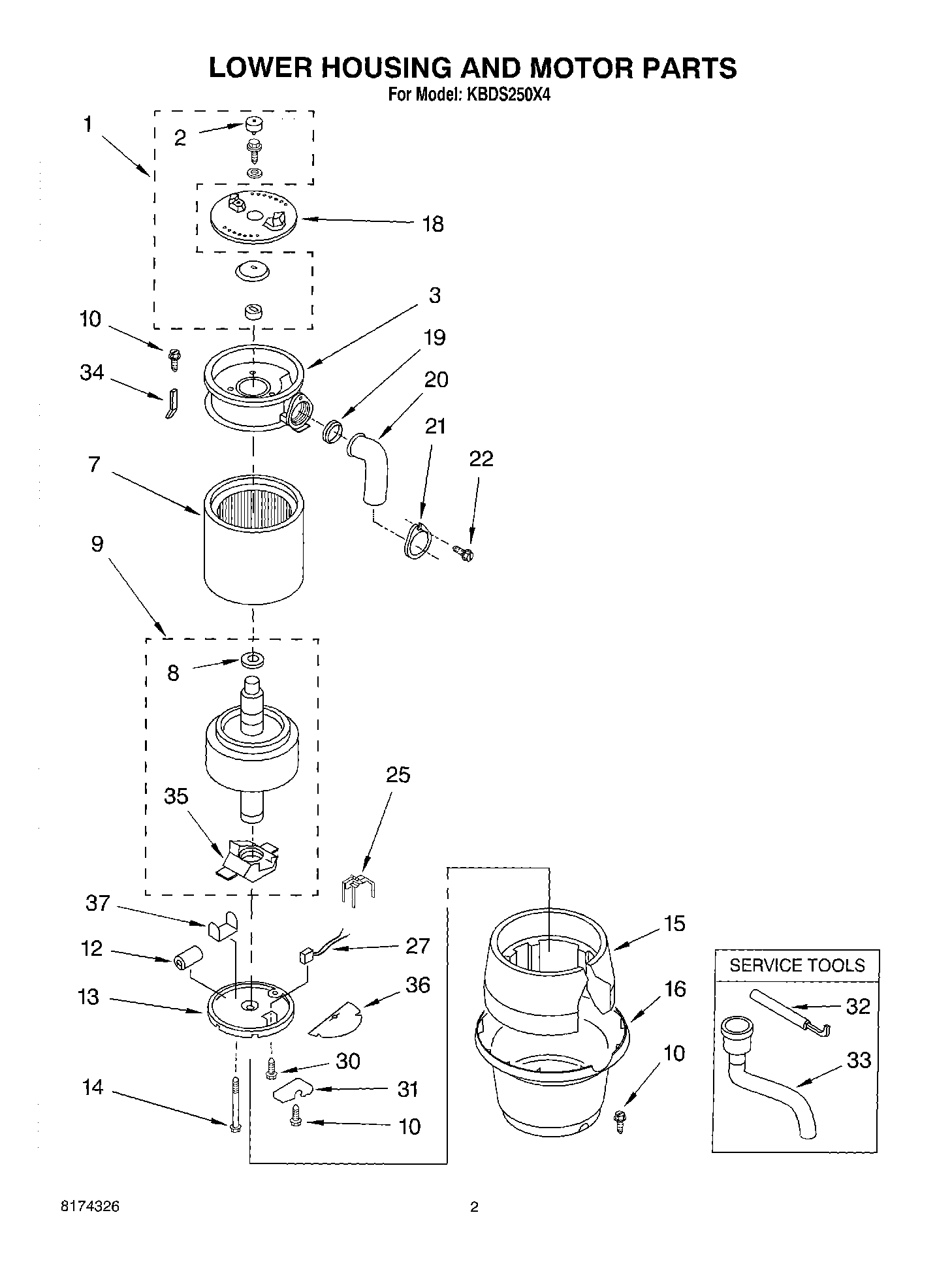

KBDS250X4 02 – SECTION

Products

Position	Product
2	4211578 Whirlpool Disposer Sleeve
3	End Bell Assembly, Upper
7	Stator Assembly
8	4211321 Whirlpool Washer
9	Shaft Assembly (Includes 8 & 35)
10	WP98008545 Whirlpool Screw
12	Capacitor
13	End Frame, Assembly (Lower)
14	Bolt, Thru
15	Insulation, Bottom
16	Trim, Shell Assembly
18	Shredder Assembly, Rotating
19	Gasket, Tailpipe
20	4211317 Whirlpool Disposer Tail Pipe
21	Flange, Tailpipe
22	WP8204624 Whirlpool Bolt
25	Switch Assembly, Start & Reverse
27	Overload, Protector
30	Screw, Tailpipe
31	Cover, Terminal
32	WP8174310 Whirlpool Disposer Wrench
33	4211396 Whirlpool Disposer Adapter
34	Shield, Wire Cover
35	4211322 Whirlpool Disposer Actuator
36	Shield, Wire
37	Clip, Capacitor
