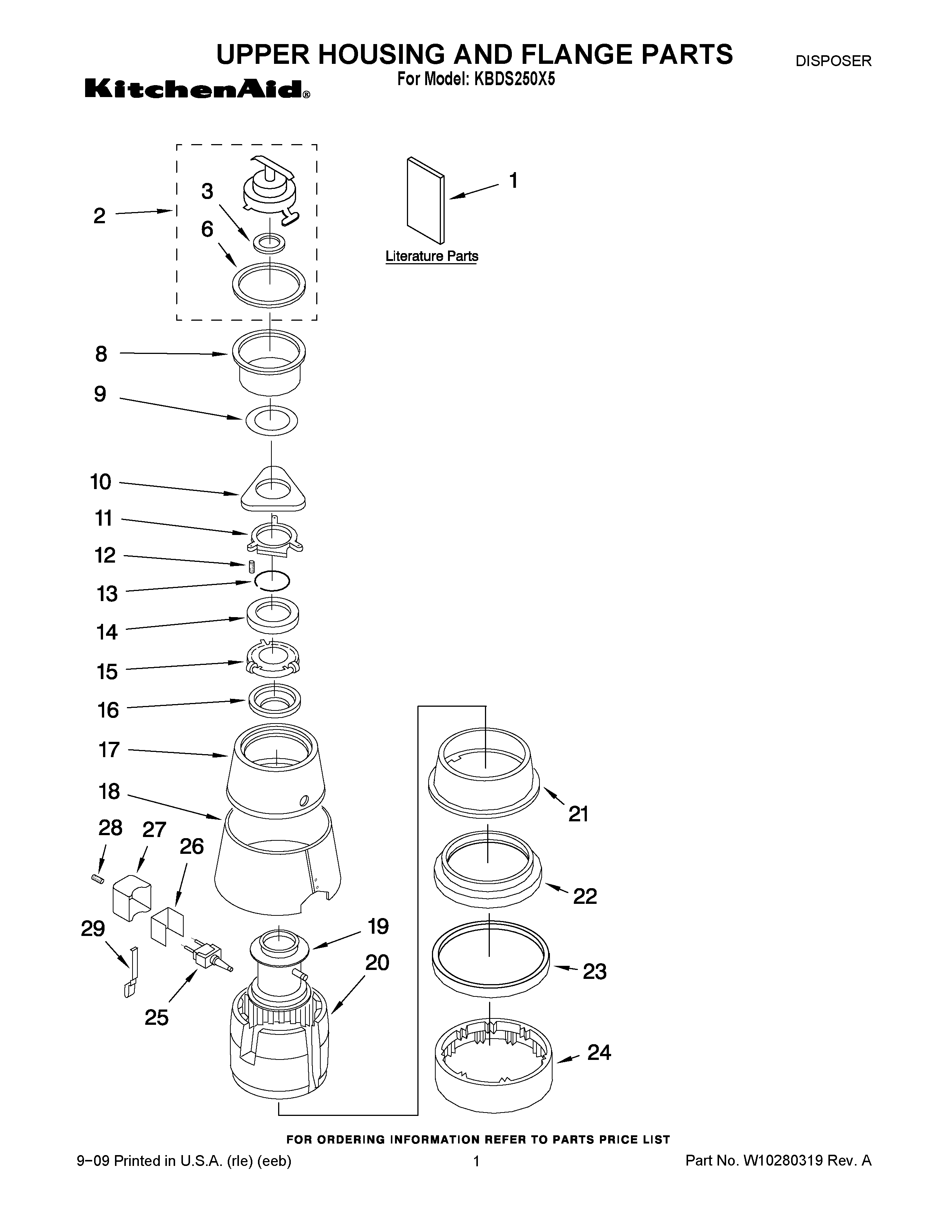

KBDS250X5 01 – UPPER HOUSING AND FLANGE PARTS

KBDS250X5 01 – UPPER HOUSING AND FLANGE PARTS

Written by

in

KBDS250X5 01 – UPPER HOUSING AND FLANGE PARTS

Products

PositionProduct
1GUIDE, USE & CARE
1REPAIR PARTS LIST
1INSTRUCTIONS, INSTALLATION
2Lock Stopper Assembly
34211355 Whirlpool Disposer Gasket
6Gasket, Stopper (Outer)
84211301 Whirlpool Disposer Flange
94211606 Whirlpool Disposer Seal
104211303 Whirlpool Disposer Flange
114211304 Whirlpool Flange Disposer
124211305 Whirlpool Disposer Screw
134211306 Whirlpool Disposer Ring
14Gasket, Mounting
15Flange, Body
16Gasket, Body
17Shell Assembly, Trim (Top)
18Band Assembly, Trim
19Container, Body Assembly (Includes Sound Insulation)
20Insulation, Top
21Body, Lower
22Gasket, Shredder
23Insulation, Sound
24Shredder, Stationary
25Switch, Pushbutton
26Insulation, Switch Cover
27Cover, Switch
28Screw, Tapping (Switch Cover)
29Bracket, Wire Cover
