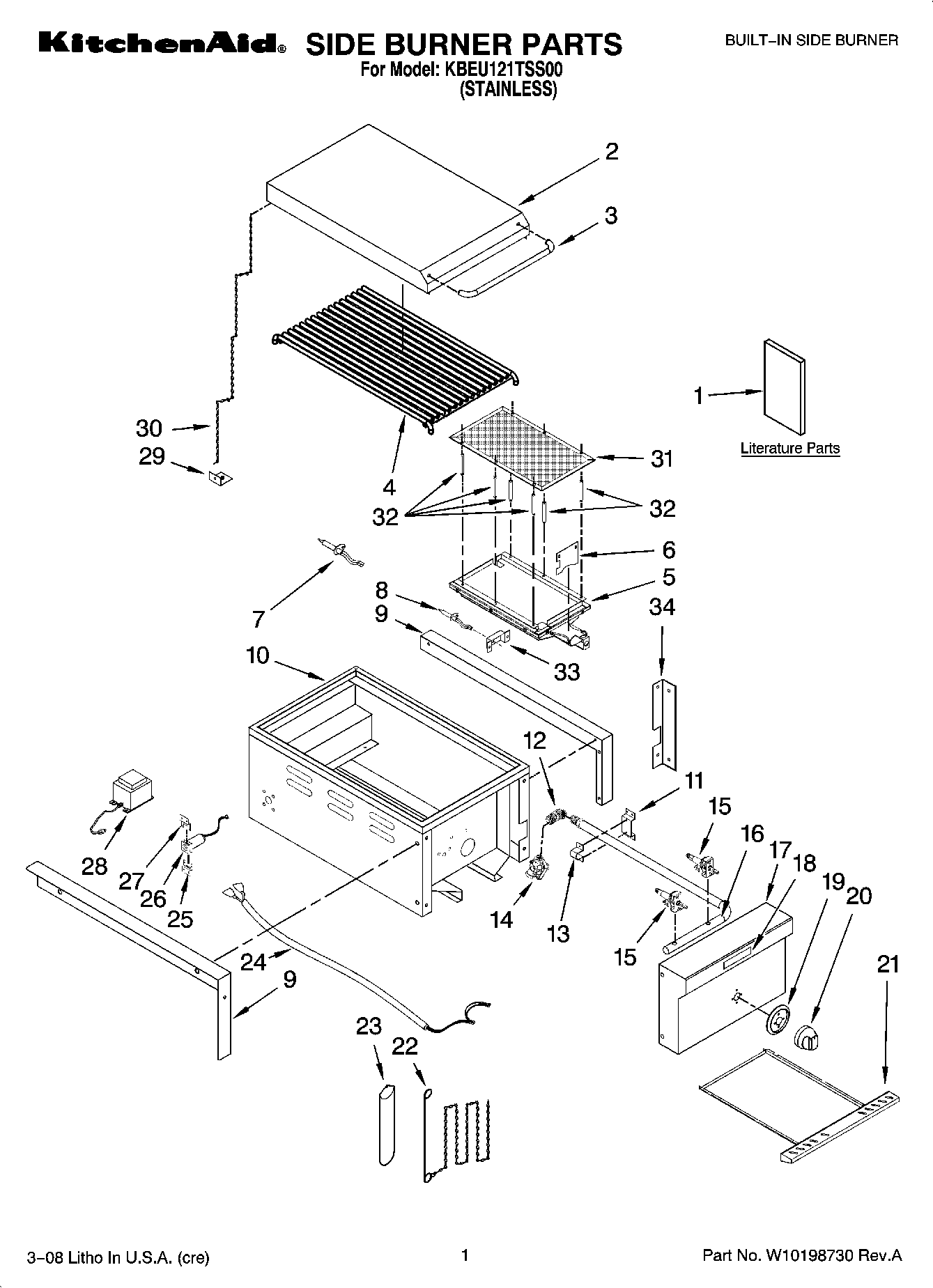

KBEU121TSS00 01 – SIDE BURNER PARTS

Products

Position	Product
1	U & C Guide / Instructions, Installation
2	Cover, Burner
3	Bar, Tool
4	Grate, Burner
5	WPW10134795 Whirlpool Burner
6	Panel, Burner
7	Ignitor, Gas Coll.
8	Ignitor, Surface
9	Flange (Left)
9	Flange (Right)
10	Box, Burner
11	WPL W10128749
12	Connector (Bra
13	Fixture, Manifold
14	Regulator (NG)
15	WPW10128764 Whirlpool Oven Main Valve
16	Manifold
17	Panel, Control
18	Nameplate
19	Bezel, Knob
20	KNOB
21	Drip Tray Assy
22	Rod, Lighting
23	Bag, Lighting Rod
24	Harness, Wire
25	Brkt, Trnsfrmr (Btm)
26	Outlet, Trnsfrmr
27	Brkt, Trnsfrmr (Top)
28	TRANSFORMER
29	Stator, Chain
30	CHAIN
31	Screen
32	Rod, Connecting
33	Bracket, Sear Ign.
34	Control Panel Trim (Left)
34	Control Panel Trim (Right)
