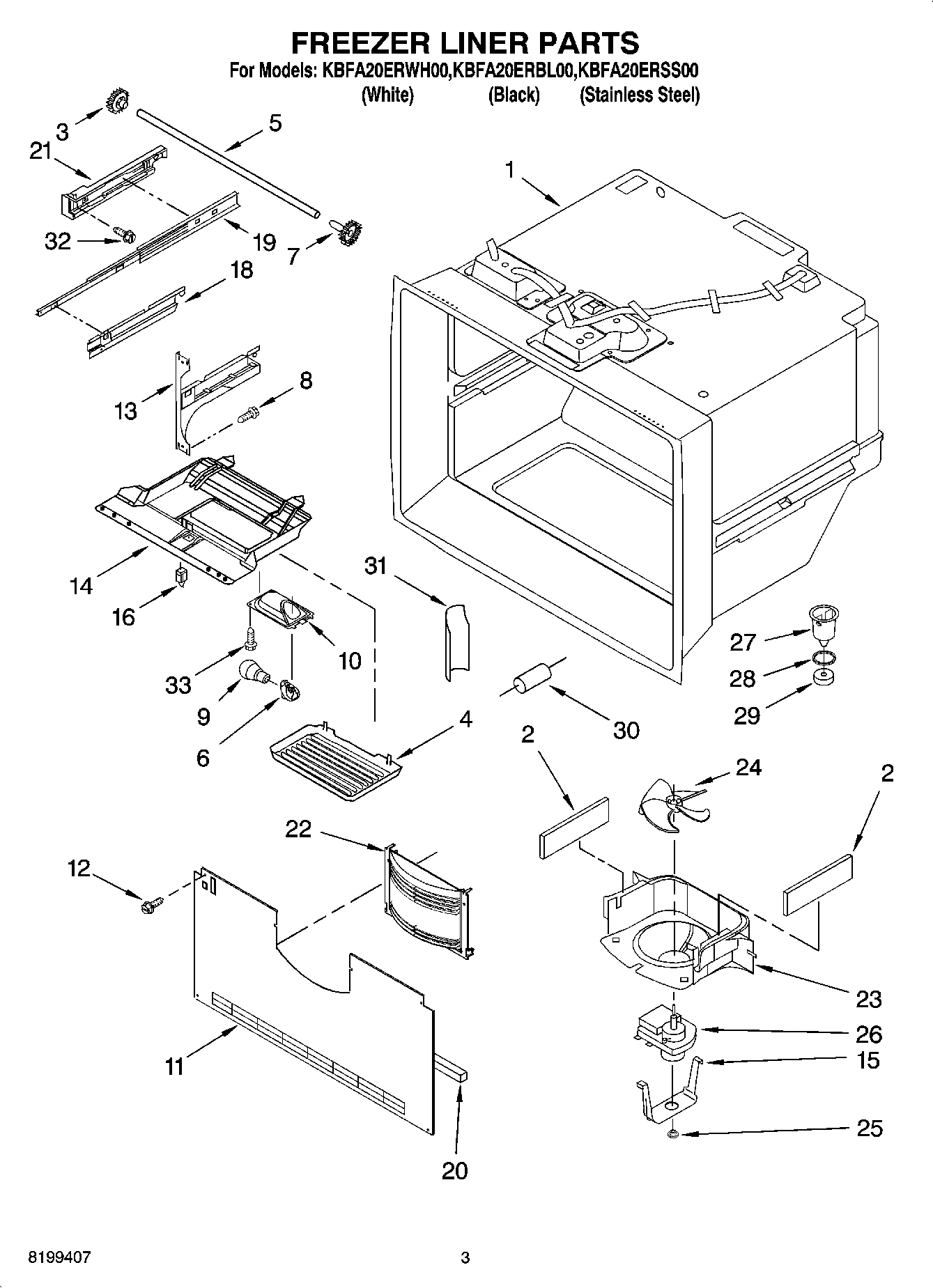

KBFA20ERBL00 02 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	W10856123 Whirlpool Refrigerator Gasket
4	Cover, Light
5	W11028221 Whirlpool Refrigerator Shaft
6	W11447232 Whirlpool Refrigerator Socket
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	WP98165 Whirlpool Screw
9	RANGE ONLY 40W 120V APPL BULB
10	Housing, Light
11	W11727809 Whirlpool Evaporator Cover
12	WPL 4344167
13	WPW10330991 Whirlpool Refrigerator Bracket
13	WPW10330993 Whirlpool Refrigerator Bracket
14	67003906 Whirlpool Refrigerator Control Module
15	Clip, Evap. Motor
16	W11396033 Whirlpool Refrigerator Rocker Switch
18	W10251557 Whirlpool Refrigerator Bracket
19	Slide, Drawer (2)
20	W11451451 Whirlpool Refrigerator Gasket
21	W10284690 Whirlpool Refrigerator Bracket
21	Bracket, Slide (Right)
22	WPW10175909 Whirlpool Grille Assembly
23	Shroud, Evap.Fan
24	WP2169142 Whirlpool Fan Blade
25	WP67002780 Whirlpool Refrigerator Grommet
26	WPW10128551 Whirlpool Evaporator Fan Motor
27	W10815413 Whirlpool Refrigerator Funnel
28	WPM0500703 Whirlpool Refrigerator O-Ring Seal
29	WPB8381501 Whirlpool Refrigerator Door Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	WP67003924 Whirlpool Refrigerator Cover
32	WP489474 Whirlpool Refrigerator Screw
33	Harness, Lights (Freezer)
33	FOLLOWING PARTS NOT ILLUSTRATED
33	WPW10139210 Whirlpool Screw
