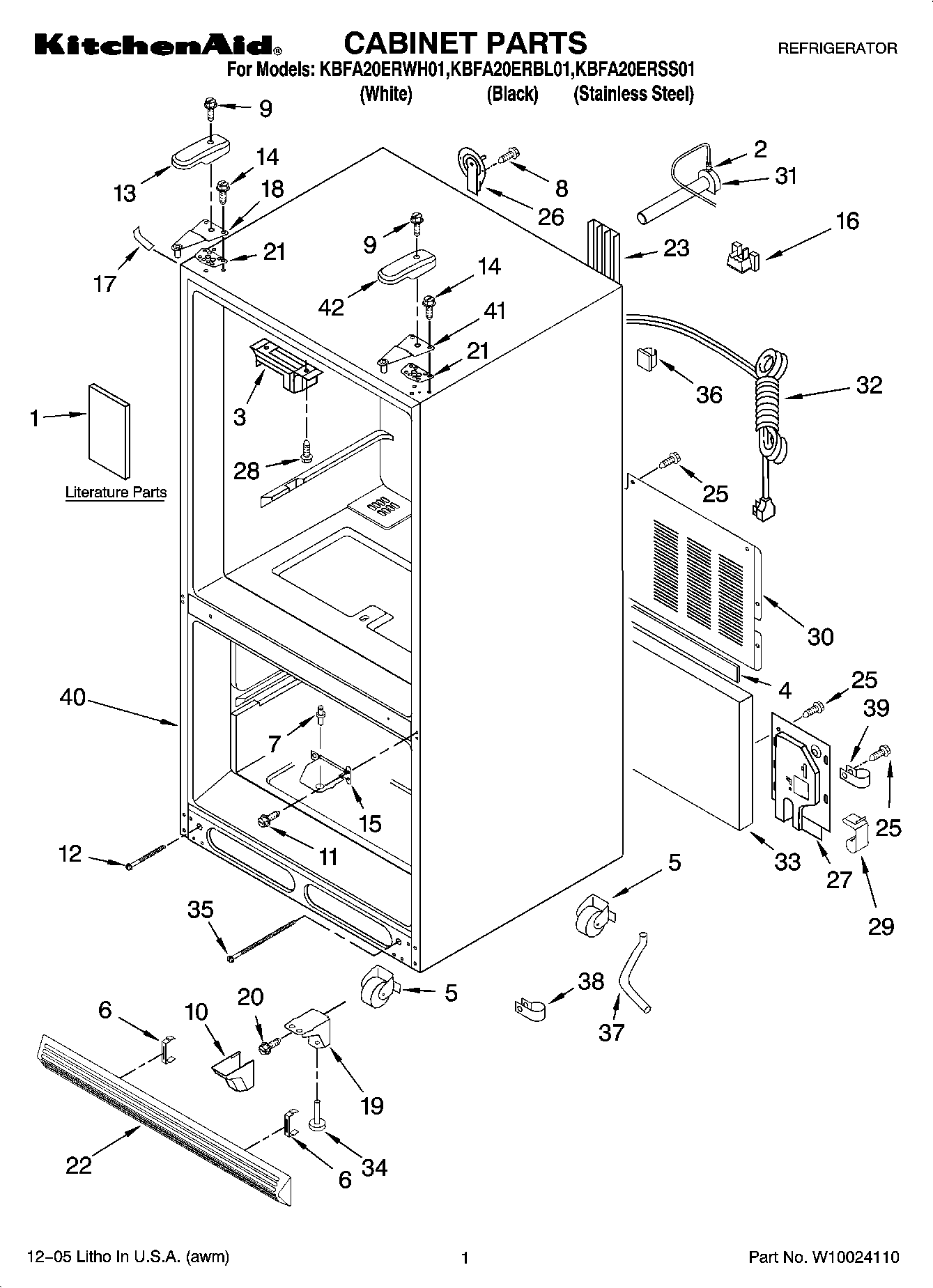

KBFA20ERBL01 01 – CABINET PARTS

KBFA20ERBL01 01 – CABINET PARTS

Written by

in

KBFA20ERBL01 01 – CABINET PARTS

Products

Position	Product
1	Tech Sheet
1	Guide, Energy
1	Owners Manual
2	WPM0114003 Whirlpool Microwave Speed Clip Clamp
3	WP67003405 Whirlpool Pivot Block
4	GASKET
5	Roller Assembly
6	Clip, Grille
7	12002311 Whirlpool Refrigerator Center Hinge Pin Kit
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10	Hinge Cover, Bottom (White)
10	Hinge Cover, Bottom (Black)
11	WP67006380 Whirlpool Screw
12	71003131 Whirlpool Oven Screw
13	Cover, Left Hinge (White)
13	Cover, Left Hinge (Black)
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	WP12777701 Whirlpool Refrigerator Filler Block
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	WP12566607ED Whirlpool Refrigerator Door Hinge
19	Hinge Bottom (White)
19	Hinge Bottom (Black)
20	Screw
21	Shim, Hinge
22	Grille Assembly (Includes Clips) (White)
22	WP67002224 Whirlpool Refrigerator Grille Assembly
23	WPL 8208152
25	WPL 4344167
26	12726003 Whirlpool Refrigerator Water Cover
27	Cover, Water Valve
28	SCREW
29	Clip, Water Line
30	Cover, Unit
31	W11176463 Whirlpool Refrigerator Water Tube
32	WP67006506 Whirlpool Refrigerator Power Cord
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	W11177593 Whirlpool Leveling Feet
35	Bolt, Adjusting (Rear)
36	WPM0104106 Whirlpool Refrigerator Clip
37	Tube, Drain
38	67001067 Whirlpool Refrigerator Drain Tube Clip
39	W10833902 Whirlpool Refrigerator Clamp
40	Cabinet (Not A Servicable Part)
41	WP12566606ED Whirlpool Refrigerator Door Hinge
42	Cover, Right Hinge (White)
42	Cover, Right Hinge (Black)
