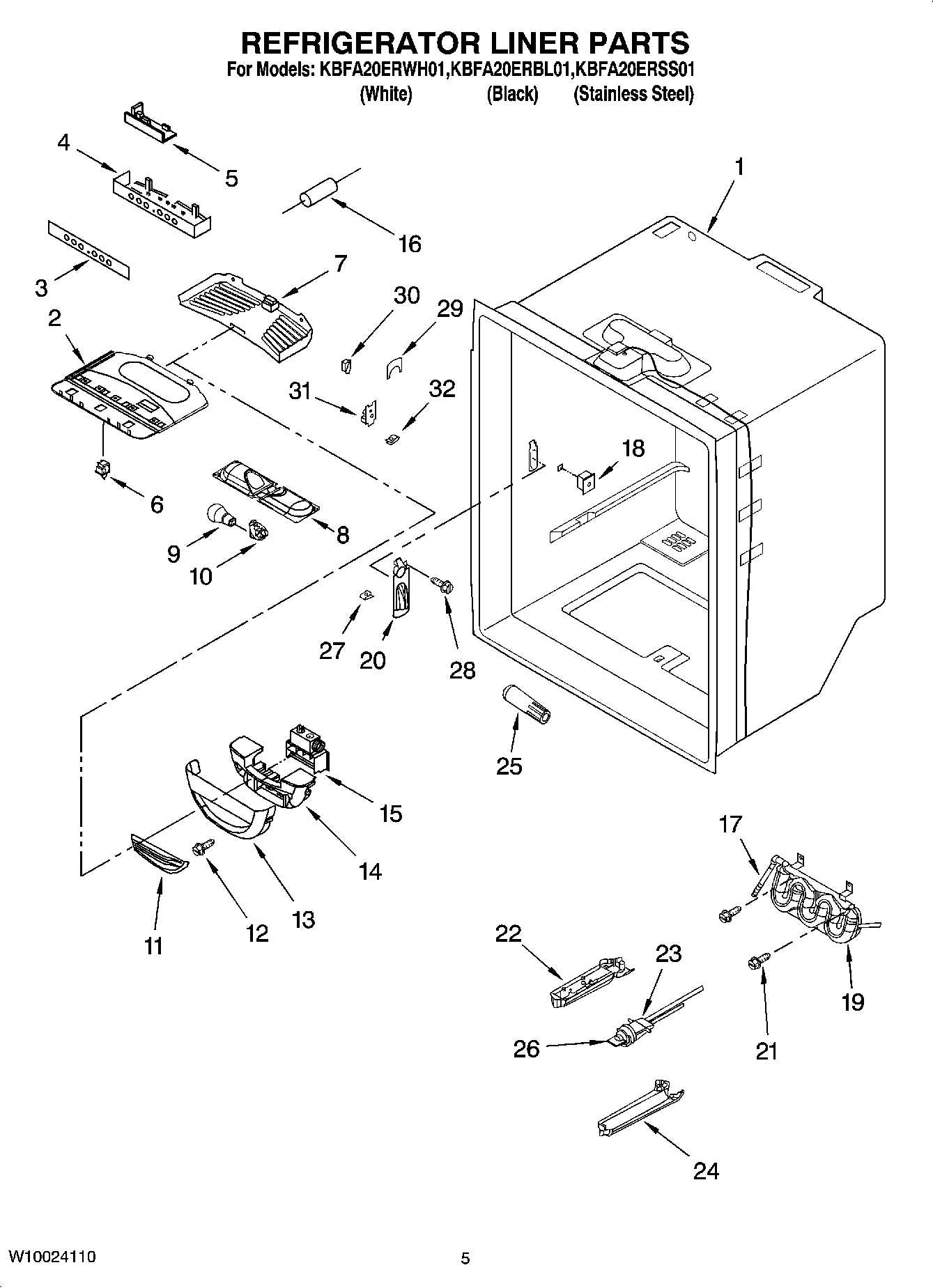

KBFA20ERBL01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Bracket, Control and Lights
3	Overlay
4	W11416469 Whirlpool Refrigerator Housing
5	WPW10207861-includeCORE Whirlpool WPW10207861 Refrigerator Electronic Control Board + Core
6	W11384469 Whirlpool Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	12806601 Whirlpool Refrigerator Light Housing
9	RANGE ONLY 40W 120V APPL BULB
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	WP67003904 Whirlpool Refrigerator Insulation
15	WP67003903 Whirlpool Refrigerator Damper Control
16	12002355 Whirlpool Refrigerator Thermistor Kit
17	WP2300868 Whirlpool Refrigerator Fitting
18	Grommet, Screw
19	Tank, Water
20	Dispenser
21	WP98165 Whirlpool Screw
22	PLATE-FIL
23	WP67004106 Whirlpool Water Filter Housing
24	WP12568001 Whirlpool Filter Cover
25	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26	Head, Filter Bypass
27	67002816 Whirlpool Refrigerator Waterline Clip
28	67006425 Whirlpool Refrigerator Screw
29	W11519867 Whirlpool Refrigerator Cover
30	WP12575501 Whirlpool Refrigerator Micro Switch
31	12707303SP Whirlpool Refrigerator Plate
32	Clip, Front
32	Harness, Damper Control
32	67005417 Whirlpool Refrigerator Harness F
32	FOLLOWING PARTS NOT ILLUSTRATED
