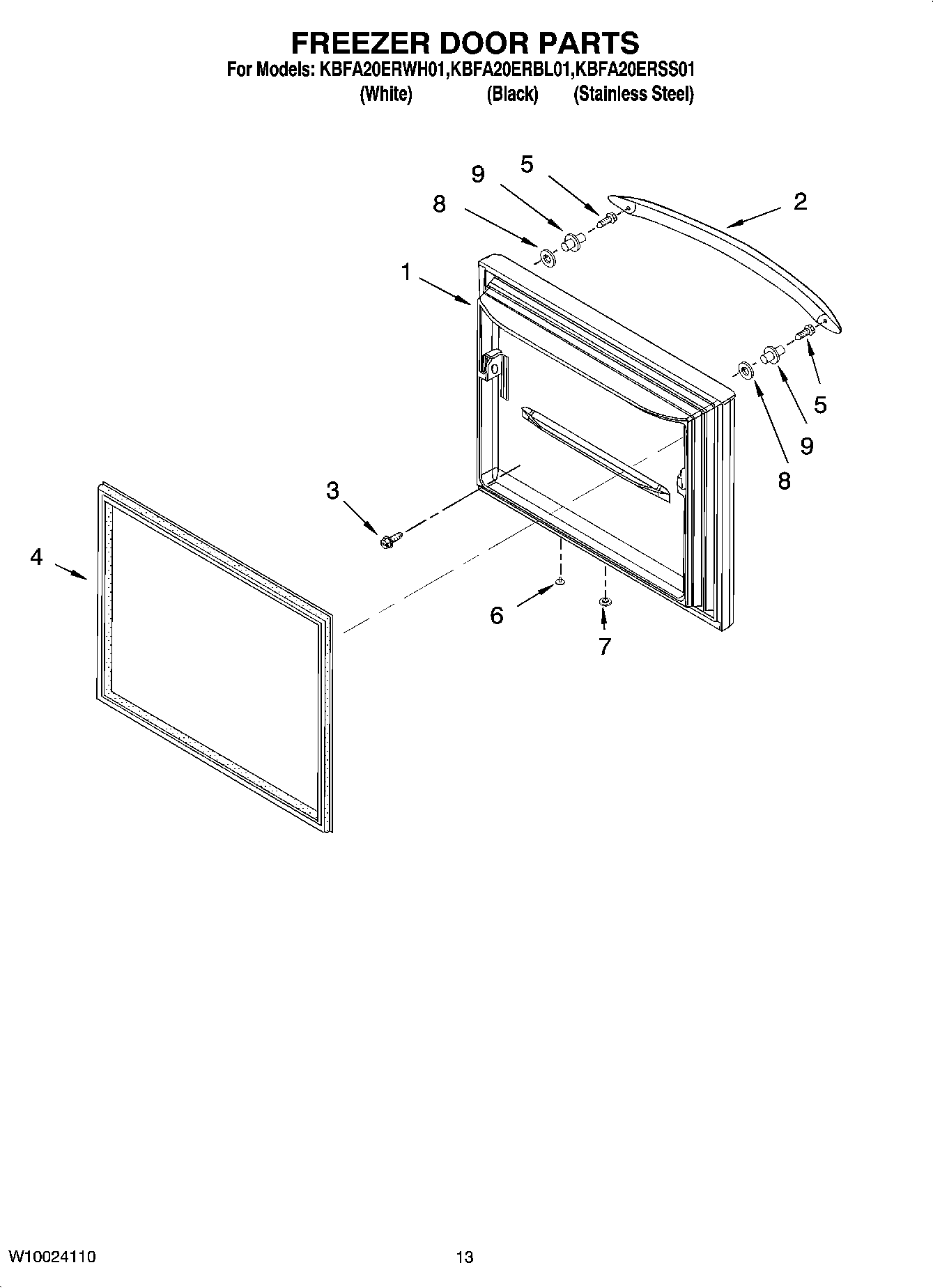

KBFA20ERBL01 07 – FREEZER DOOR PARTS

KBFA20ERBL01 07 – FREEZER DOOR PARTS

Written by

in

KBFA20ERBL01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Insulation) (White)
1Freezer Door (Includes Insulation) (Black)
1Freezer Door (Includes Insulation) (Stainless Steel)
2Door Handle (Black)
2Door Handle (White)
2Door Handle (Stainless)
3WP3400805 Whirlpool Screw Assembly
4Door Gasket, Magnetic (White)
4W10436252 Whirlpool Door Gasket
5WP3387230 Whirlpool Screw
6Plug, Button (White)
6Plug, Button
710712401 Whirlpool Refrigerator Vent Plug (White)
767004838 Whirlpool Refrigerator Button Vent Plug
8Washer
9Stud, Handle
