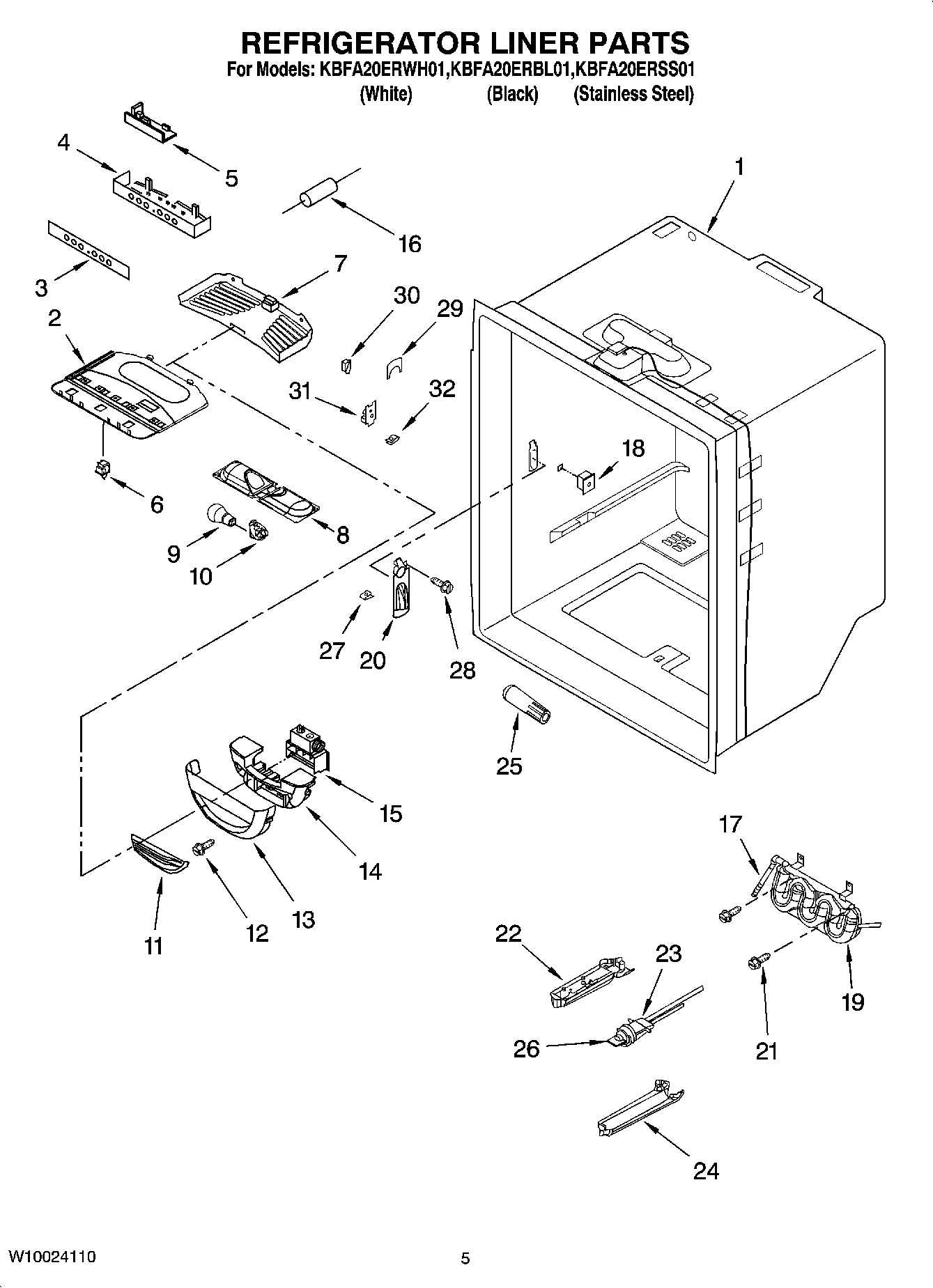

KBFA20ERWH01 03 – REFRIGERATOR LINER PARTSadmin2025-04-26T11:40:34+00:00KBFA20ERWH01 03 – REFRIGERATOR LINER PARTS ProductsPositionProduct1Liner (Not A Serviceable Part)2Bracket, Control and Lights3Overlay4W11416469 Whirlpool Refrigerator Housing5WPW10207861-includeCORE Whirlpool WPW10207861 Refrigerator Electronic Control Board + Core6W11384469 Whirlpool Door Switch7W11284721 Whirlpool Refrigerator Cover812806601 Whirlpool Refrigerator Light Housing9RANGE ONLY 40W 120V APPL BULB10W11447232 Whirlpool Refrigerator Socket1167003900 Whirlpool Refrigerator Insert Damper Cover12WP400021-1 Whirlpool Screw13WP12806701 Whirlpool Refrigerator Box Cover14WP67003904 Whirlpool Refrigerator Insulation15WP67003903 Whirlpool Refrigerator Damper Control1612002355 Whirlpool Refrigerator Thermistor Kit17WP2300868 Whirlpool Refrigerator Fitting18Grommet, Screw19Tank, Water20Dispenser21WP98165 Whirlpool Screw22PLATE-FIL23WP67004106 Whirlpool Water Filter Housing24WP12568001 Whirlpool Filter Cover25everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water26Head, Filter Bypass2767002816 Whirlpool Refrigerator Waterline Clip2867006425 Whirlpool Refrigerator Screw29W11519867 Whirlpool Refrigerator Cover30WP12575501 Whirlpool Refrigerator Micro Switch3112707303SP Whirlpool Refrigerator Plate32Clip, Front32Harness, Damper Control3267005417 Whirlpool Refrigerator Harness F32FOLLOWING PARTS NOT ILLUSTRATED
