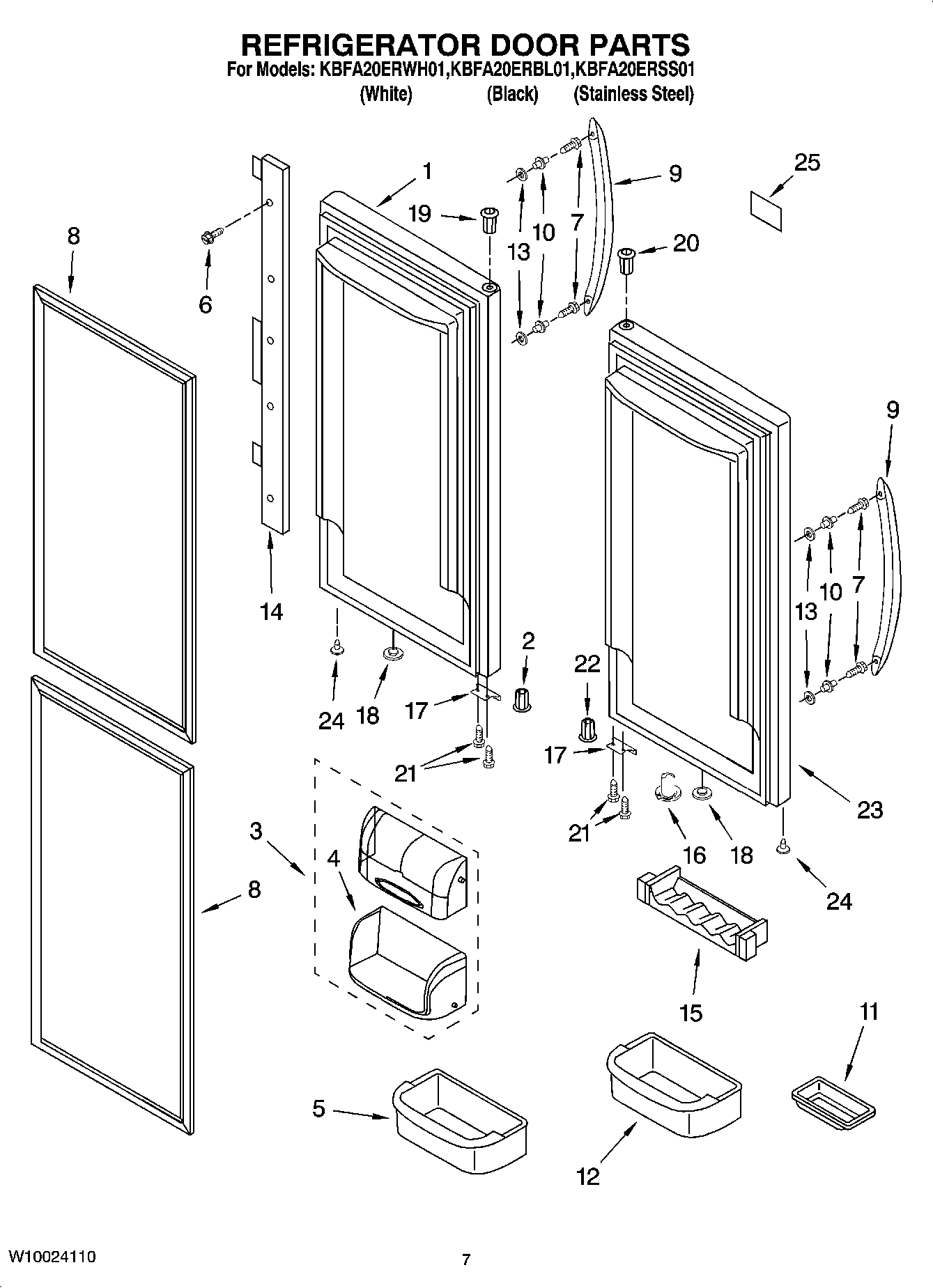

KBFA20ERWH01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Left (Stainless Steel)
1	Door, Left (Black)
1	Door, Left (White)
2	WP67002721 Whirlpool Refrigerator Door Bushing
2	67002722 Whirlpool Refrigerator White Door Bushing
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371195 Whirlpool Refrigerator Cantilever Bin
6	WP9740848 Whirlpool Dishwasher Screw
7	WP3387230 Whirlpool Screw
8	W10830189 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
9	Door Handle (White)
9	Door Handle (Stainless)
9	Door Handle (Black)
10	Stud, Handle
11	WPL 4344296
12	WPW10289498 Whirlpool Refrigerator Cantilever Bin
13	Washer
14	RAIL-MULLN WHITE
14	WP12722803B Whirlpool Door Guide
15	WP67005626 Whirlpool Refrigerator Can Caddy
16	WP67003638 Whirlpool Closing Cam
16	WP67003639 Whirlpool Refrigerator Closer
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
18	Plug, Button
18	Plug, Button (White)
19	Bushing, Door (Upper Left) (White)
19	Bushing, Door (Upper Left) (Black)
20	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
20	67004978 Whirlpool Refrigerator Black Door Bushing
21	WP98165 Whirlpool Screw
22	WP67002731 Whirlpool Refrigerator Door Bushing
22	12028601W Whirlpool Refrigerator Hinge Bushing
23	Door, Right (White)
23	Door, Right (Black)
23	Door, Right (Stainless Steel)
24	67004838 Whirlpool Refrigerator Button Vent Plug
24	10712401 Whirlpool Refrigerator Vent Plug (White)
25	Nameplate
25	Nameplate (White)
