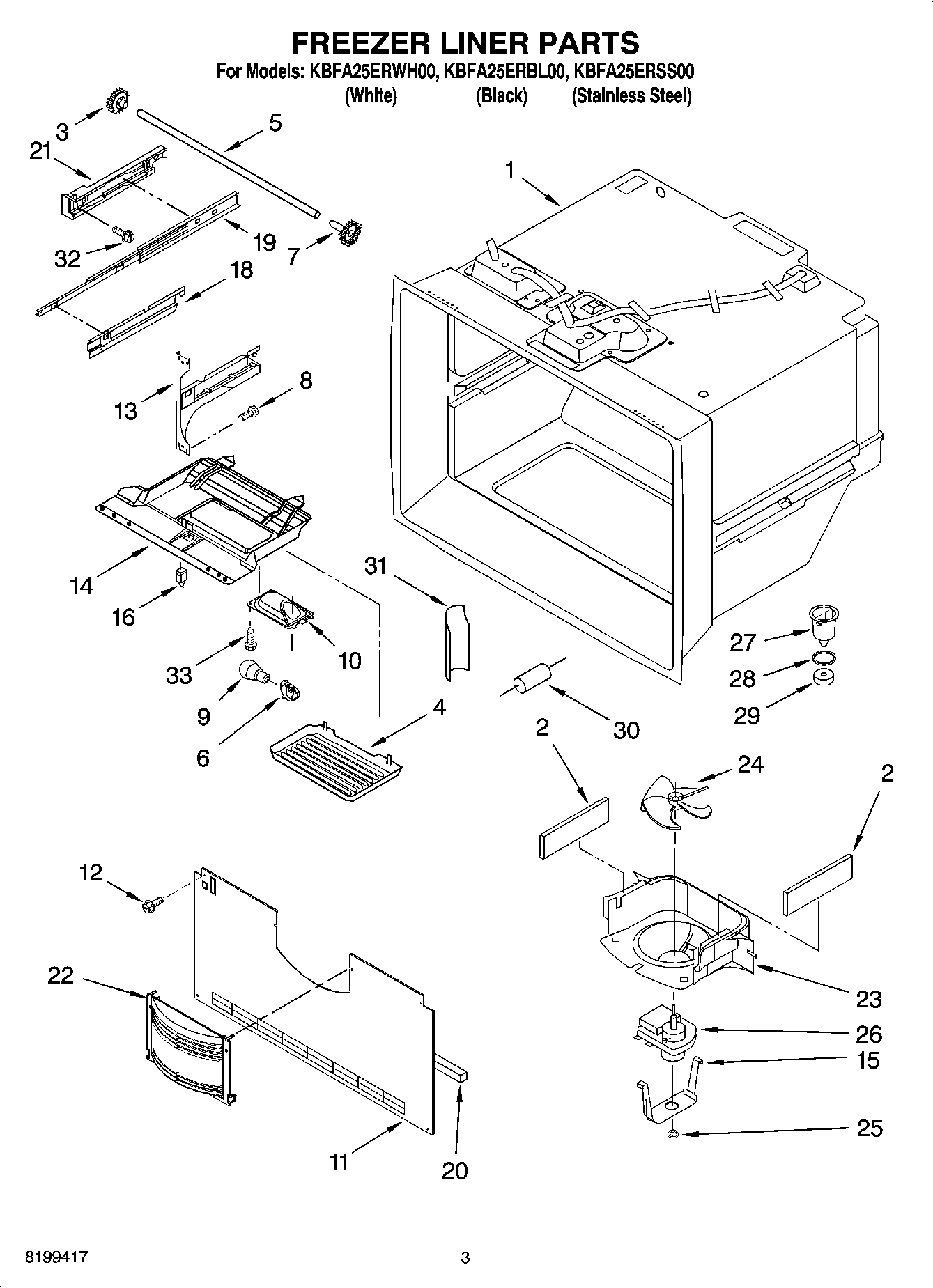

KBFA25ERBL00 02 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	W10856123 Whirlpool Refrigerator Gasket
4	Cover, Light
5	W11028221 Whirlpool Refrigerator Shaft
6	W11447232 Whirlpool Refrigerator Socket
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	WP98165 Whirlpool Screw
9	RANGE ONLY 40W 120V APPL BULB
10	Housing, Light
11	W11727809 Whirlpool Evaporator Cover
12	WPL 4344167
13	Bracket, Door (Left)
13	Bracket, Door (Right)
14	67003906 Whirlpool Refrigerator Control Module
15	Clip, Evap Motor
16	W11396033 Whirlpool Refrigerator Rocker Switch
18	WPW10280613 Whirlpool Refrigerator Bracket
18	WPW10280608 Whirlpool Refrigerator Bracket
19	Slide, Drawer (2)
20	W11159728 Whirlpool Refrigerator Gasket
21	Bracket, Slide (Right)
21	Bracket, Slide (Left)
22	WPW10175909 Whirlpool Grille Assembly
23	Shroud, Evap.Fan
24	Blade, Fan (Evaporator)
25	WP67002780 Whirlpool Refrigerator Grommet
26	12002744 Whirlpool Refrigerator Evaporator Fan Motor Kit
27	W10815413 Whirlpool Refrigerator Funnel
28	WPM0500703 Whirlpool Refrigerator O-Ring Seal
29	WPB8381501 Whirlpool Refrigerator Door Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	WP67003924 Whirlpool Refrigerator Cover
32	WP489474 Whirlpool Refrigerator Screw
33	Harness, Lights (Freezer)
33	FOLLOWING PARTS NOT ILLUSTRATED
33	WPW10139210 Whirlpool Screw
