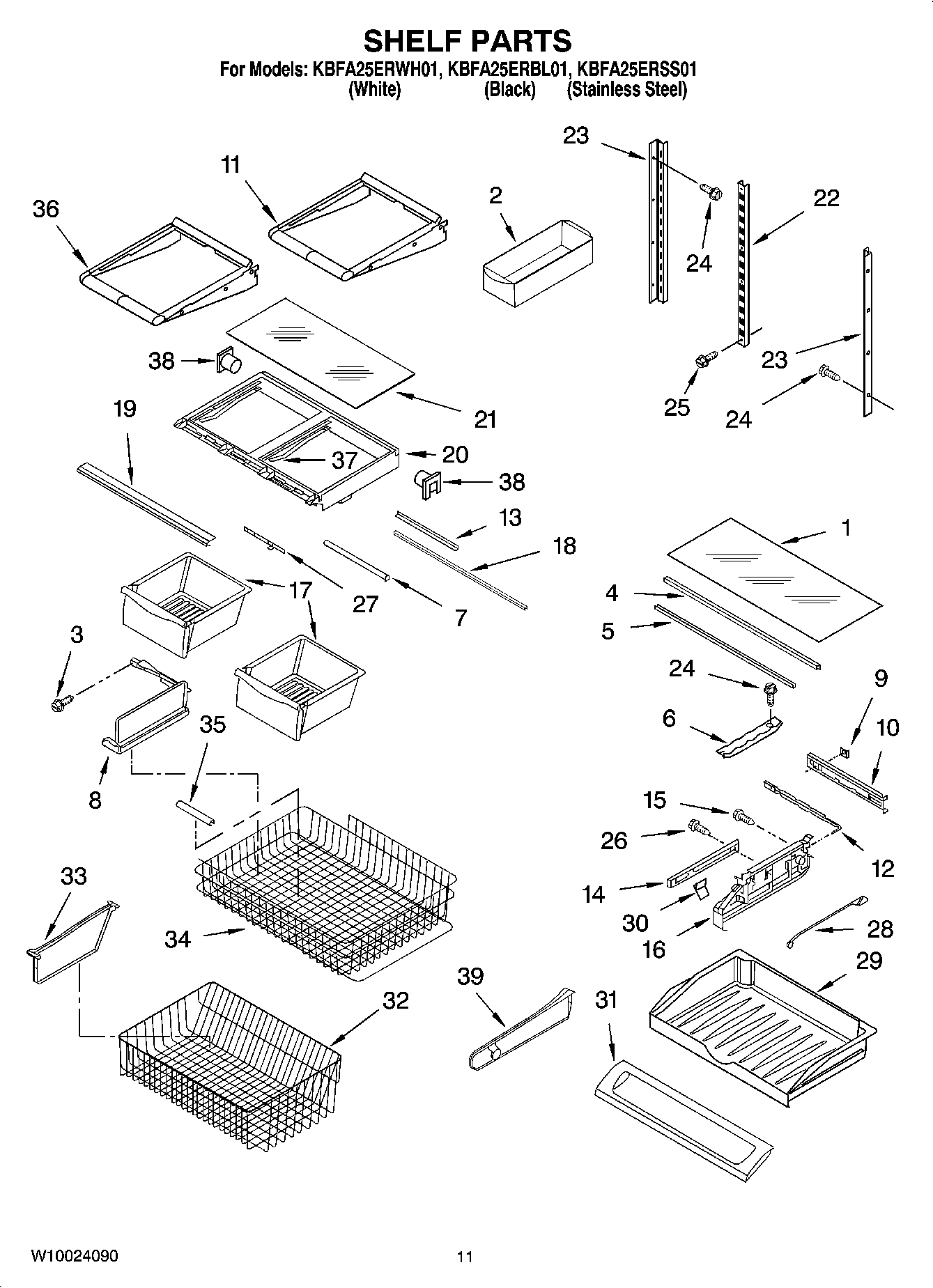

KBFA25ERWH01 06 – SHELF PARTS

Products

Position	Product
1	Glass, Pantry
2	W10136387A Whirlpool Refrigerator Egg Container
3	Screw
4	WP67006010 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
7	WP67003417 Whirlpool Refrigerator Front Seal
8	Divider, Upper Basket
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	12656202 Whirlpool Refrigerator Housing
11	Shelf Assembly (2)
12	WP67003793 Whirlpool Refrigerator Temperature Slide
13	WP67002513 Whirlpool Refrigerator Rear Crisper Seal
14	WPW10235370 Whirlpool Refrigerator Glide
15	WPL 4344523
16	W10874836 Whirlpool Endcap Assembly Left Hand and Right
17	Pan, Crisper (2)
18	WP12642303WD Whirlpool Refrigerator Drawer Support
19	Trim, Crisper
20	WP67003854 Whirlpool Shelf Frame
21	WP67006704 Whirlpool Glass Crisper Cover
22	67001073 Whirlpool Refrigerator Center Ladder
23	67002489 Whirlpool Refrigerator Ladder L/R Side
24	67006425 Whirlpool Refrigerator Screw
25	Screw
26	WP98165 Whirlpool Screw
27	SLIDE
28	WP67003795 Whirlpool Refrigerator Temperature Control Bar
29	WP67003531 Whirlpool Drawer Assembly
30	W11498983 Whirlpool Refrigerator Knob
31	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32	WPW10503184 Whirlpool Refrigerator Freezer Basket
33	Divider, Lower Basket
34	67004987 Whirlpool Refrigerator Upper Basket
35	Handle, Basket
36	Shelf, Fixed (2)
37	WPW10326469 Whirlpool Drawer Slide Rail
38	WP12603701 Whirlpool Refrigerator Support
39	WP67002759 Whirlpool Refrigerator Divider
