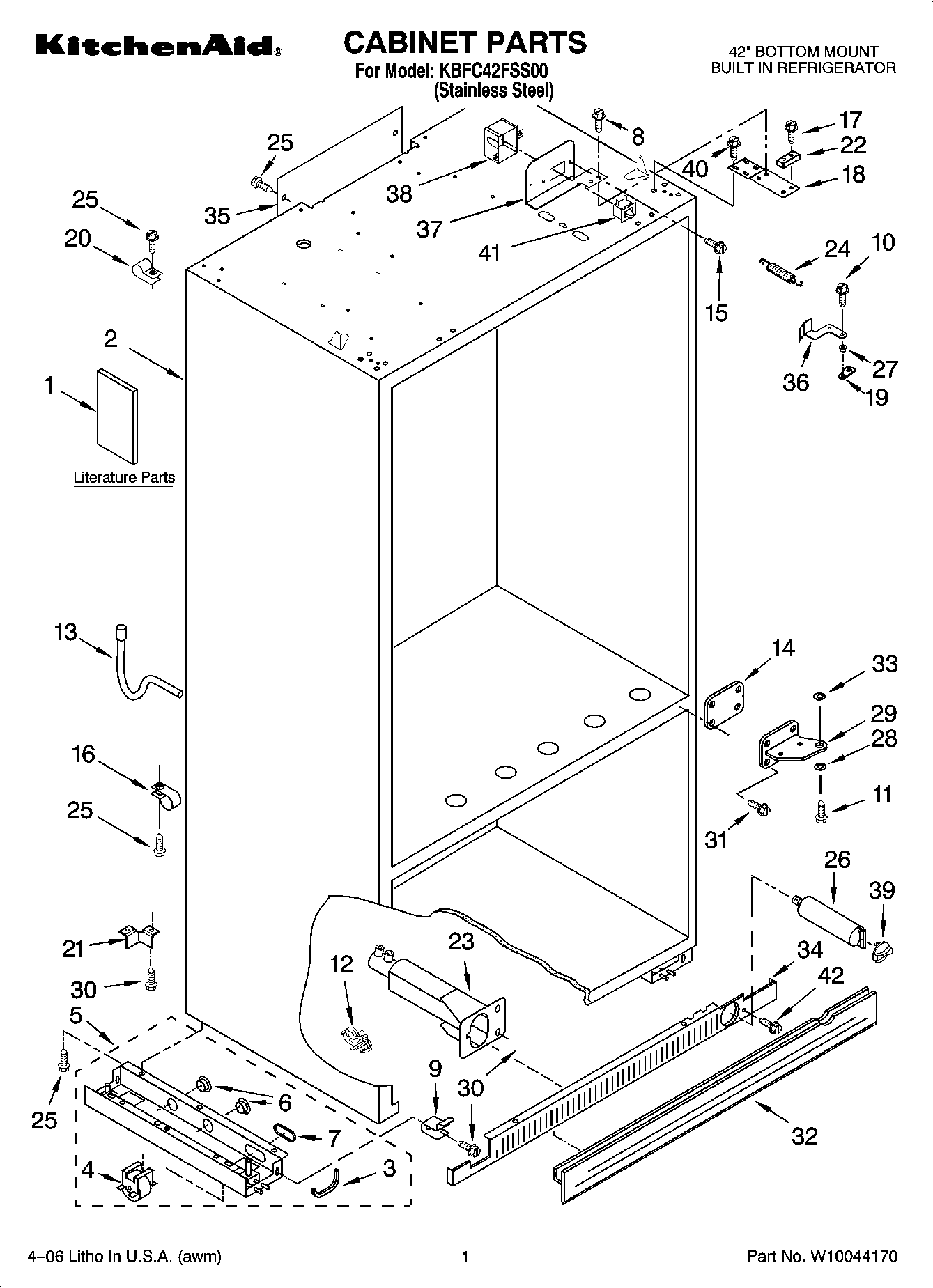

KBFC42FSS00 01 – CABINET PARTS

Products

Position	Product
1	Main Control Service Sheet
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
1	Use & Care Guide
1	Installation Instructions
1	Energy Label
2	Cabinet, (Not A Serviceable Part)
3	Grommet, Crossover Tube
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	Grommet, Wiring
7	Grommet, Flexible
8	WP8281164 Whirlpool Refrigerator Screw
9	Mounting Bracket, Grill
10	SCREW
11	SCREW
12	Clamp
13	2314064 Whirlpool Refrigerator Drain Tube
14	2207470 Whirlpool Refrigerator Hinge Shim
15	WP965173 Whirlpool Dishwasher Screw
16	WP488366 Whirlpool Refrigerator Clamp
17	Screw, Door Stop
18	W11218690 Whirlpool Refrigerator Door Hinge
19	Cam-Closer, Door
20	W10833902 Whirlpool Refrigerator Clamp
21	2006617 Whirlpool Refrigerator Bracket
22	W11403572 Whirlpool Refrigerator Bracket
23	WP2209022 Whirlpool Refrigerator Housing
24	WP2004517 Whirlpool Refrigerator Spring
25	W11624204 Whirlpool Screw
26	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
27	WP2316859 Whirlpool Refrigerator Bushing
28	WP2004994 Whirlpool Refrigerator Hinge Bushing
29	W10337505 Whirlpool Refrigerator Door Hinge
30	WP489464 Whirlpool Refrigerator Screw
31	W11474472 Whirlpool Screw
32	SKIRT, GRILLE (BOTTOM)
33	2314023 Whirlpool Bushing
34	Grille Base, Front
35	2215612 Whirlpool Refrigerator Duct Cover
36	W11298172 Whirlpool Refrigerator Extension
36	W10847927 Whirlpool Refrigerator Extension
37	2221096 Whirlpool Refrigerator Bracket
37	2221097 Whirlpool Refrigerator Bracket
38	2215938 Whirlpool Refrigerator Switch Cover
39	WP2186494B Whirlpool Refrigerator Filter Cap
40	W11189635 Whirlpool Refrigerator Screw
41	W11384469 Whirlpool Door Switch
