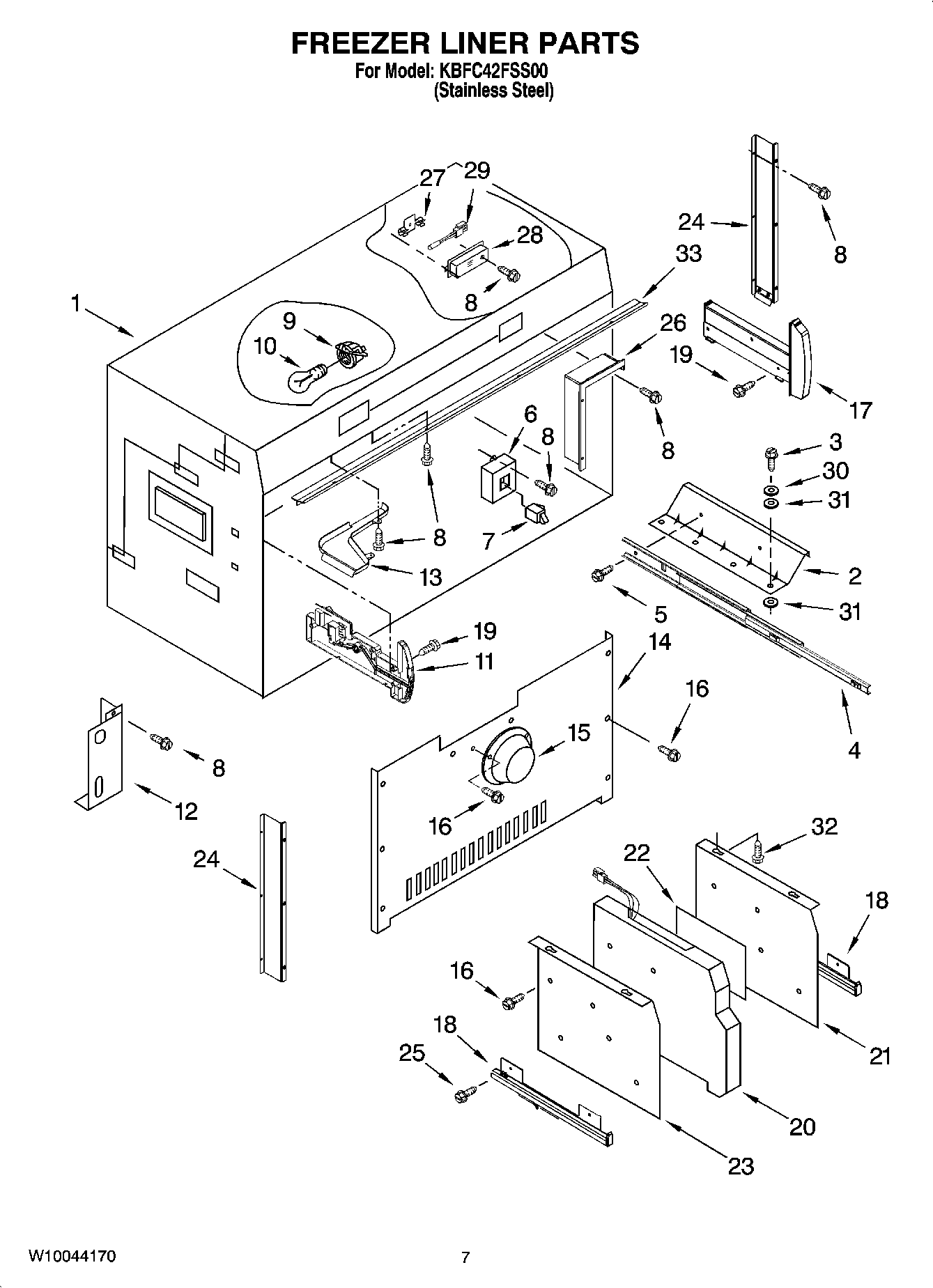

KBFC42FSS00 05 – FREEZER LINER PARTS

Products

Position	Product
1	Liner, Freezer (Not Servicable)
2	W10744329 Whirlpool Refrigerator Support
3	WP8204624 Whirlpool Bolt
4	Drawer Slide, Freezer Basket (2)
5	Screw
6	Cover, Light Switch
7	W11384469 Whirlpool Door Switch
8	W11624204 Whirlpool Screw
9	WPW10191429 Whirlpool Refrigerator Socket
10	WPA3073101 Whirlpool Light Bulb
11	Switch Assembly, Icemaker (Includes emitter)
12	Cover, Wiring (Icemaker)
13	2317005 Whirlpool HVAC Air Duct
14	Cover, Evaporator
15	2317829 Whirlpool Refrigerator Cover
16	WP488729 Whirlpool Refrigerator Door Screw
17	2306106 Whirlpool Refrigerator Track
18	2306116 Whirlpool Refrigerator Slide
18	2306117 Whirlpool Refrigerator Slide
19	WP488163 Whirlpool Refrigerator Screw
20	Divider, Freezer Bins (Includes receiver)
21	W10716209 Whirlpool Refrigerator Support
22	SHIELD
23	SUPPORT, SLIDE LEFT
24	Bracket, Evaporator Cover (Left Side)
24	Bracket, Evaporator Cover (Right Side)
25	WPW10141625 Whirlpool Refrigerator Screw Assembly
26	Bracket, Air Return
27	Clip, Thermistor
28	1116793 Whirlpool Refrigerator Cover
29	WP2188820 Whirlpool Refrigerator Thermistor
30	W10075920 Whirlpool Refrigerator Washer
31	Washer (EPDM)
32	WP8533928 Whirlpool Refrigerator Screw
33	Gasket, Air Deflector
