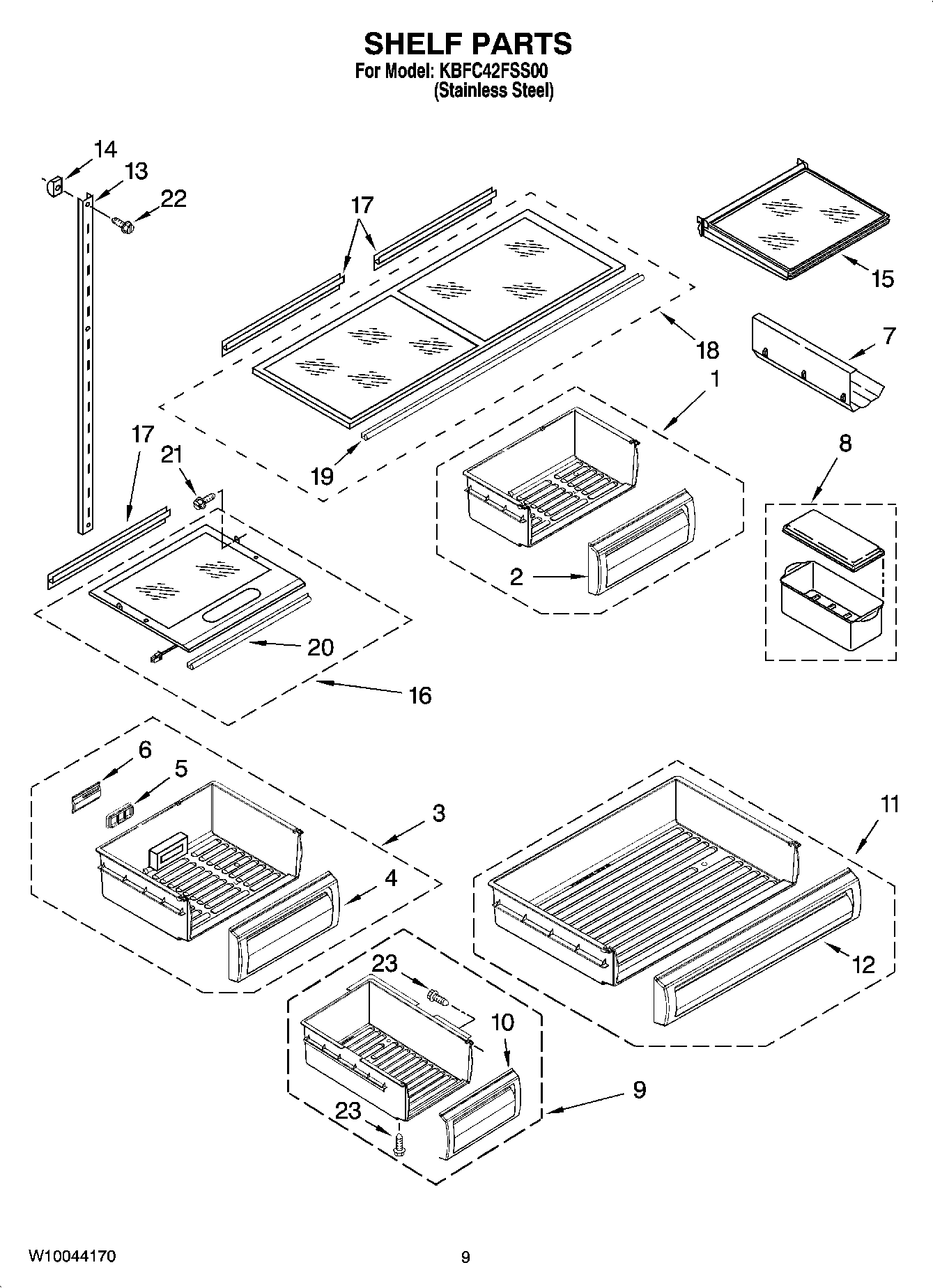

KBFC42FSS00 06 – SHELF PARTS

Products

Position	Product
1	Crisper Pan Assembly (Includes 2) (Left)
1	Crisper Pan Assembly (Includes 2) (Right)
2	WP2256247 Whirlpool Front Pan
3	Deli Pan Assembly (Incl. 4, 5 & 6) (Left)
3	Deli Pan Assembly (Incl. 4, 5 & 6) (Right)
4	WP2256365 Whirlpool Refrigerator Front Pan
5	2307810 Whirlpool Refrigerator Air Duct
6	2317939 Whirlpool Refrigerator Deflector
7	W10777924 Whirlpool Refrigerator Wine Rack
8	Egg Bin Assembly
9	Ice Pan Assembly (Includes 10)
10	2306175 Whirlpool Refrigerator Front Pan
11	2327511 Whirlpool Refrigerator Pan
12	WP2256367 Whirlpool Refrigerator Front Pan
13	Ladder, Shelf (4)
14	520965 Whirlpool Refrigerator Support
15	Shelf (4)
16	Cover, Deli Bin (Right)
16	Cover, Deli Bin (Left)
17	2309400 Whirlpool Pan Gasket
18	W11430640 Whirlpool Glass Shelf
19	Gasket, Front (Crisper Cover)
20	Gasket, Front (2) (Deli Cover)
21	Screw 8-15 x 1/2 (White)
22	2006475 Whirlpool Refrigerator Screw
23	WP488787 Whirlpool Refrigerator Screw
