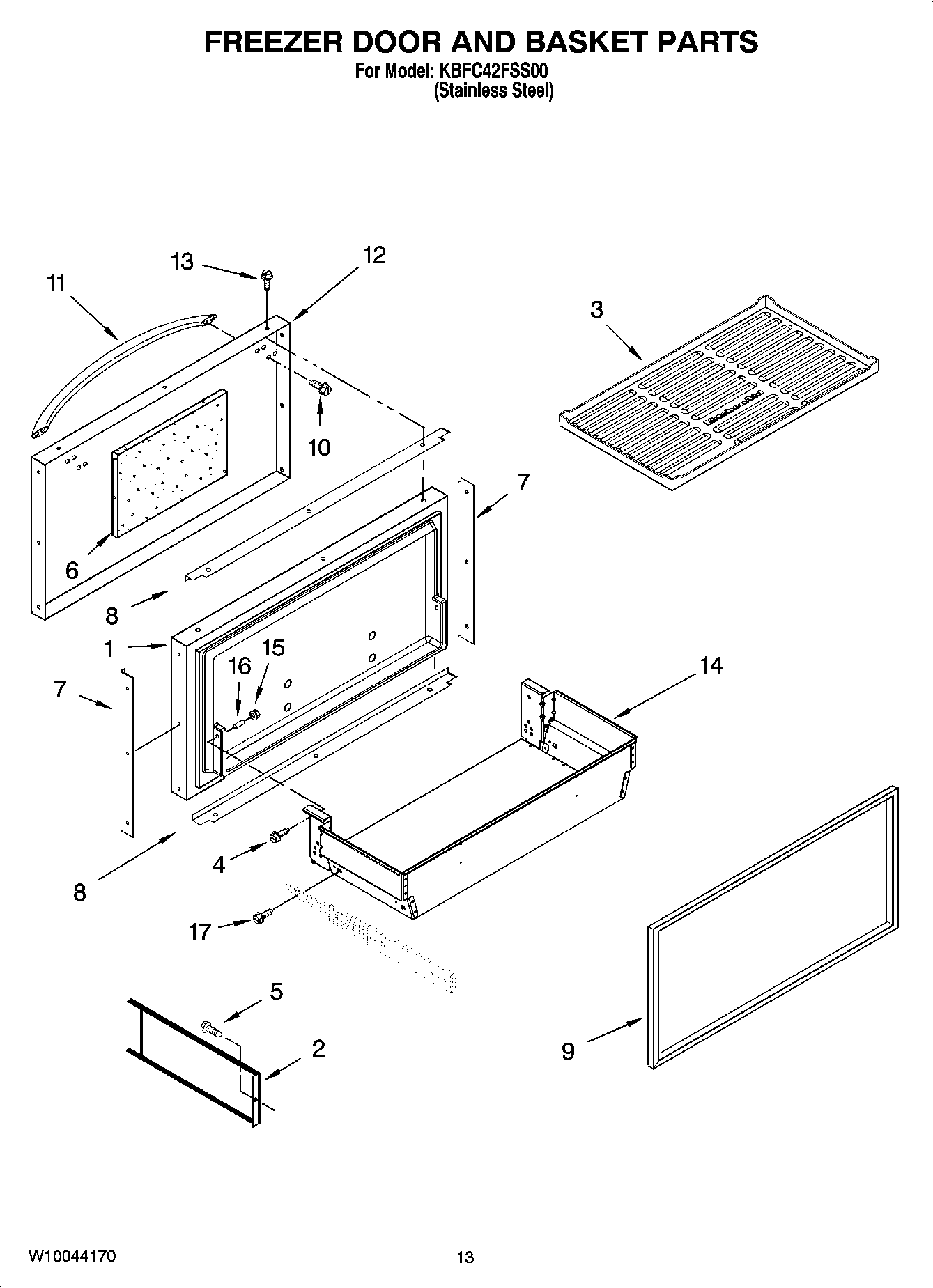

KBFC42FSS00 08 – FREEZER DOOR AND BASKET PARTS

KBFC42FSS00 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBFC42FSS00 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Item 9)
2Divider, Basket (2)
3W10665413 Whirlpool Refrigerator Mat
4Screw, 5/16 x 1
5WPW10001160 Whirlpool Refrigerator Screw
62309219 Whirlpool Refrigerator Filler
7Spacer, Door Edge – Side
8SPACER, DOOR EDGE TOP & BOTTOM
92309216 Whirlpool Refrigerator Door Gasket
10WP308544 Whirlpool Screw
11Handle, Door (Stainless Steel)
12Skin, Door
13WP8281250 Whirlpool Refrigerator Screw
14Basket Assembly, Freezer
15WP2207454 Whirlpool Refrigerator Nut
16WASHER
17WPW10001180 Whirlpool Refrigerator Screw
