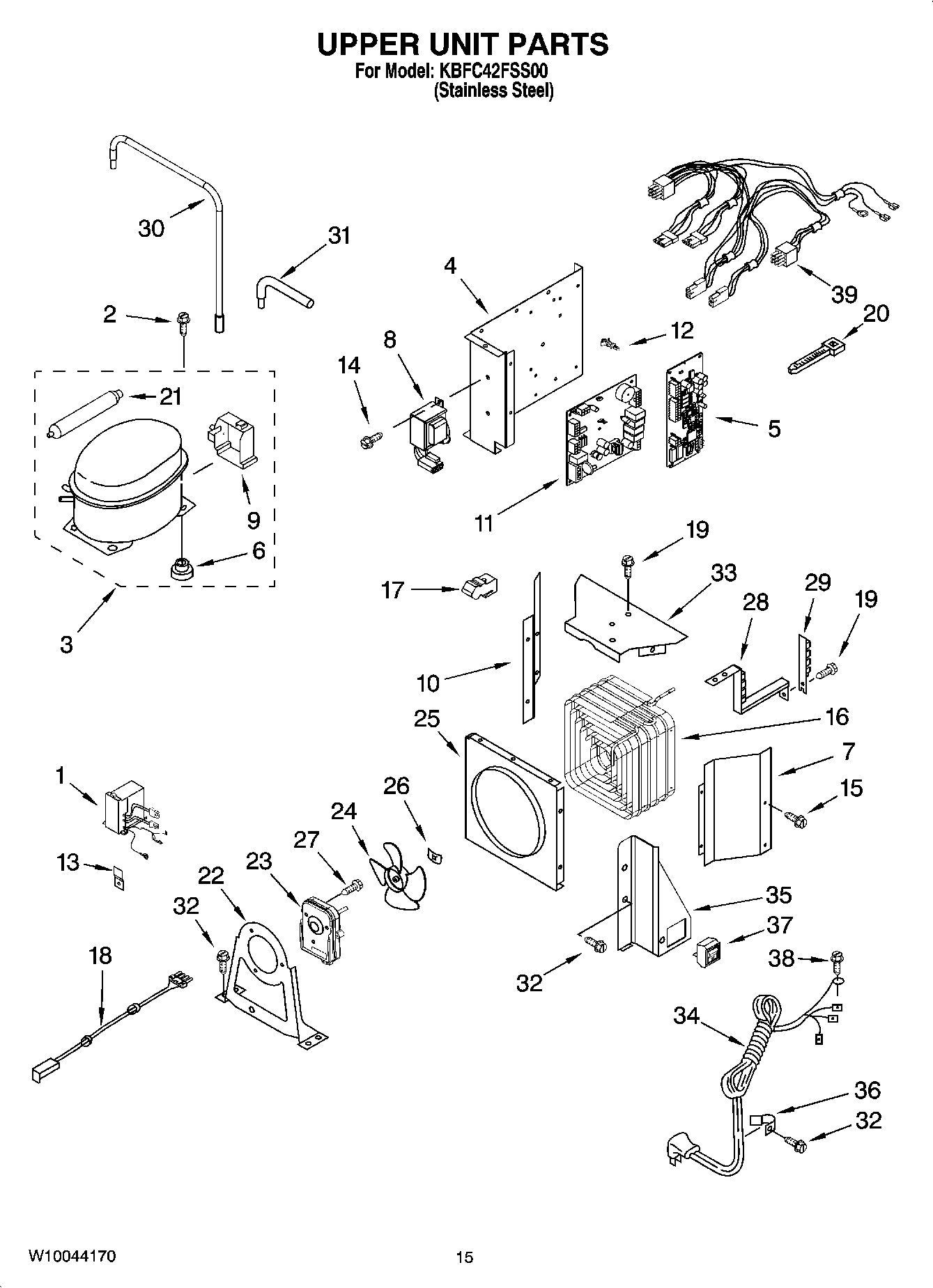

KBFC42FSS00 09 – UPPER UNIT PARTS

KBFC42FSS00 09 – UPPER UNIT PARTS

Written by

in

KBFC42FSS00 09 – UPPER UNIT PARTS

Products

PositionProduct
1W10629033 Whirlpool Refrigerator Inverter Control Box
3W10841139 Whirlpool Refrigerator Compressor
4Housing, Control Board
5WP2303091 Whirlpool Refrigerator Electronic Control Board
6876811 Whirlpool Grommet
7Support, Condenser (Right)
8Transformer
92215676 Whirlpool Refrigerator Terminal Cover
10Support, Condenser (Left)
11W10219462 Whirlpool Refrigerator Electronic Control Board
12WP2203075 Whirlpool Refrigerator Spacer
132256328 Whirlpool Bracket Assembly
15WP489069 Whirlpool Compactor Screw
162307998 Whirlpool Refrigerator Condenser
172309431 Whirlpool Grommet
18WP2187629 Whirlpool Refrigerator Wire Jumper
19WP489399 Whirlpool Refrigerator Screw
20WPW10339879 Whirlpool Wire Tie
21W10843121 Whirlpool Refrigerator Tube
22Bracket, Fan Motor
23MOTOR-COND/INCL BLADE&BRKT
24Blade, Fan
25Orifice, Fan
26WP486692 Whirlpool Refrigerator Nut
278281160 Whirlpool Screw
28BRACKET, VIBRATION (CONDENSER)
29ARM, VIBRATION (CONDENSER)
302307566 Whirlpool Refrigerator Tube
31W10528578 Whirlpool Refrigerator Tube
32W11624204 Whirlpool Screw
33Cover, Condenser
34Service Cord
35W10185556 Whirlpool Refrigerator Bracket
36549193 Whirlpool Refrigerator Power Clamp
37WP2266802 Whirlpool Refrigerator Switch
38WP489128 Whirlpool Refrigerator Screw
39Following Parts Not Illustrated and Optional Parts Not Included
39Wiring Harness, Unit Compartment
39VALVE, ACCESS (5/8“)
39978026 Whirlpool Refrigerator Primary Valve
39876764 Whirlpool Refrigerator Primary Valve
39978027 Whirlpool Refrigerator Primary Valve
39978030 Whirlpool Refrigerator Valve
39WP978025 Whirlpool Refrigerator Valve
39VALVE, ACCESS (1/2“)
39REFRIGERANT CHARGE 6.25 oz. (R-134A)
