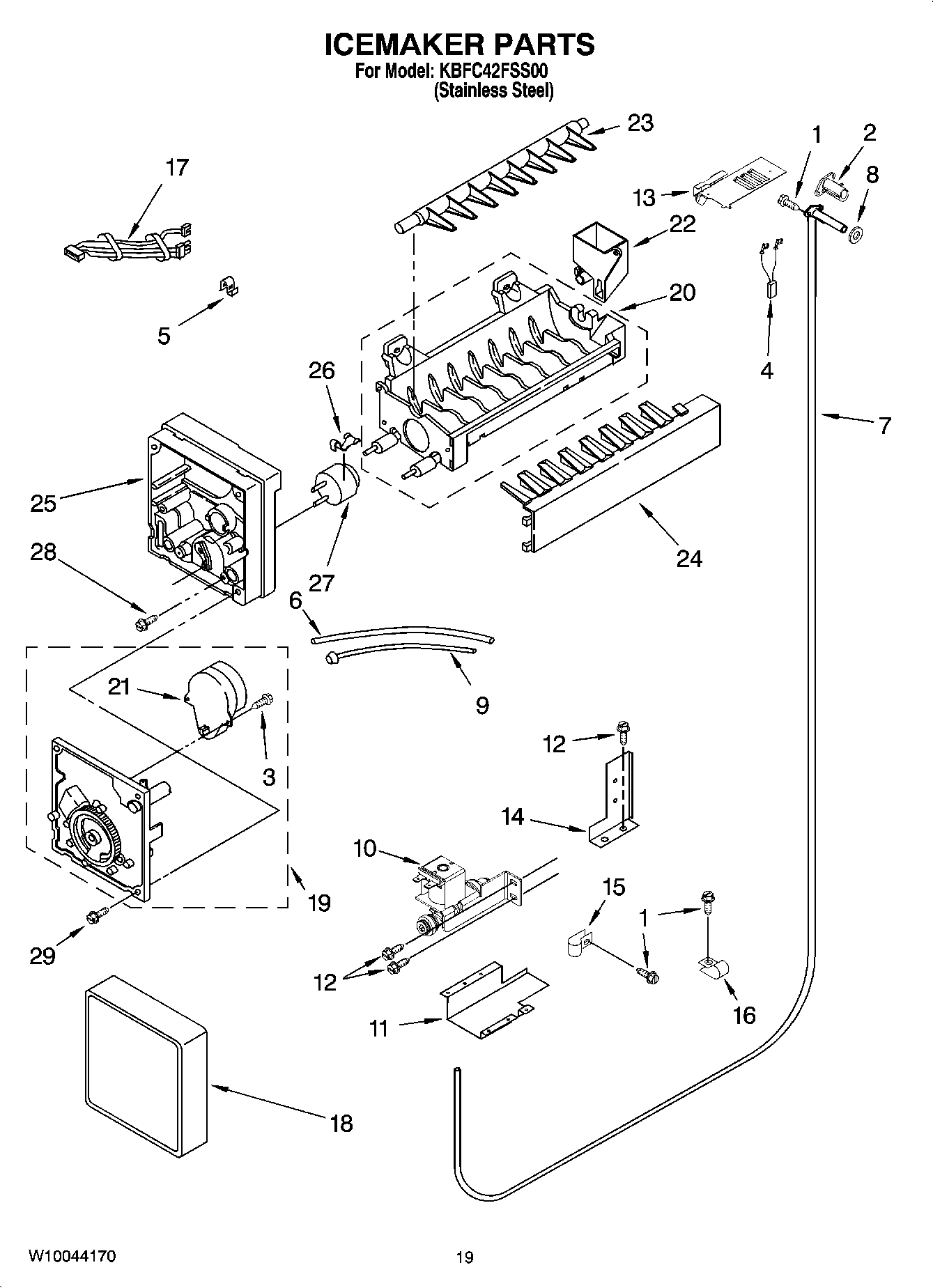

KBFC42FSS00 11 – ICEMAKER PARTSadmin2025-04-26T12:04:02+00:00KBFC42FSS00 11 – ICEMAKER PARTS ProductsPositionProduct1W11624204 Whirlpool Screw2WP2221240 Whirlpool Refrigerator Heater3489136 Whirlpool Refrigerator Screw4Jumper, Heater Fill Tube5WP628379 Whirlpool Refrigerator Clip6Tube, Filter Inlet7Tube Assembly, Water Inlet8WP1106508 Whirlpool Refrigerator Gasket9Tube, Filter Outlet10Valve, Solenoid11Cover, Bottom12WP489464 Whirlpool Refrigerator Screw13WP2221231 Whirlpool Refrigerator Shield14Mounting Bracket, Water Valve15489348 Whirlpool Refrigerator Tube Clamp16488946 Whirlpool Air Conditioner Clamp172310136 Whirlpool Refrigerator Wire Harness18Cover198201515 Whirlpool Refrigerator Motor and Gear Module Kit20WPW10190929 Whirlpool Refrigerator Ice Maker Mold21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw29WP681249 Whirlpool Screw Assembly100Cleaner, Stainless Steel100WPW10277450 Whirlpool Refrigerator Icemaker100Following Parts Not Illustrated (Optional Parts Only)
