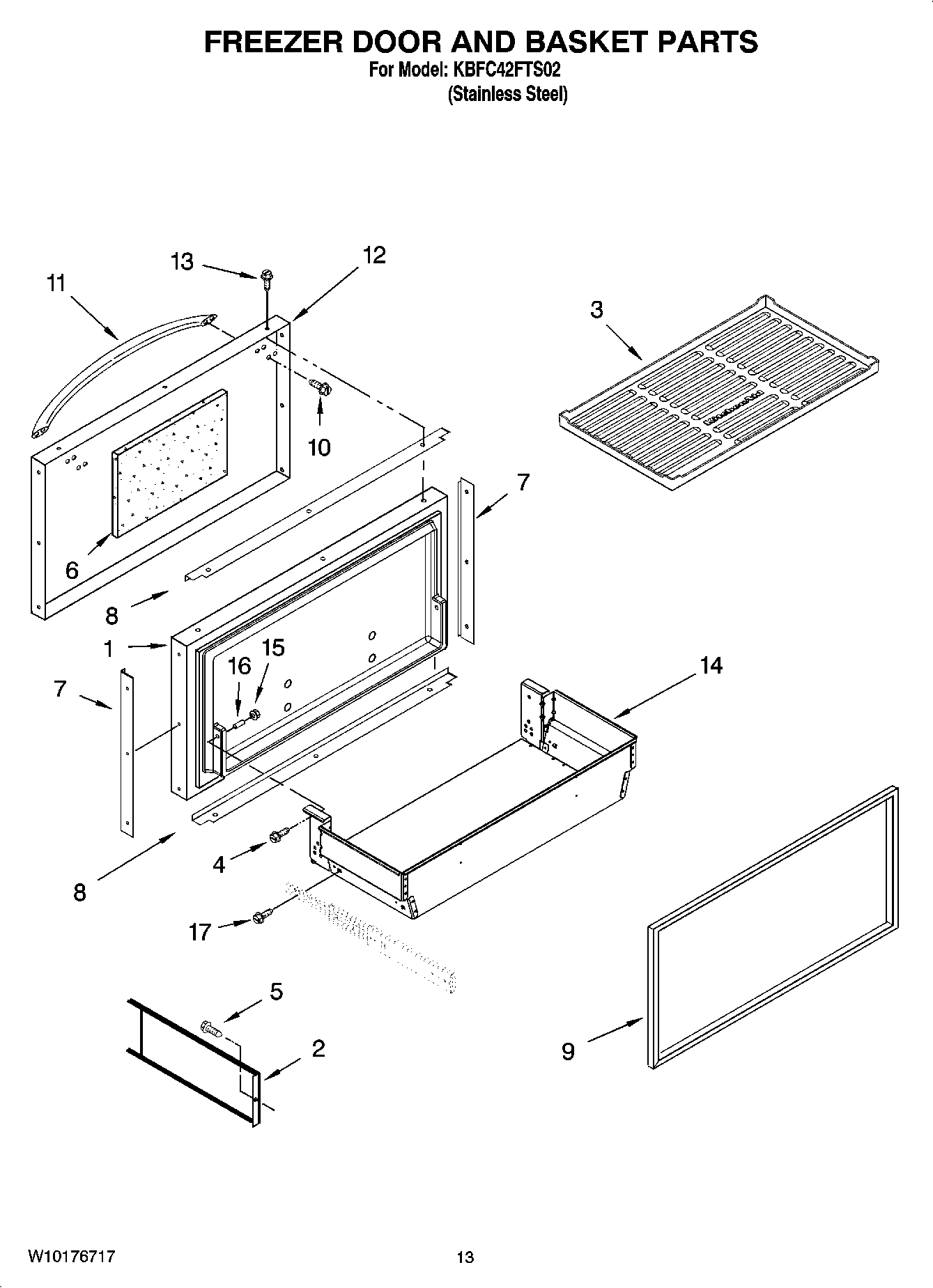

KBFC42FTS02 08 – FREEZER DOOR AND BASKET PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.9)
2	Divider, Basket (2)
3	W10665413 Whirlpool Refrigerator Mat
5	WPW10001160 Whirlpool Refrigerator Screw
6	2309219 Whirlpool Refrigerator Filler
7	Spacer, Door Edge – Side
8	SPACER, DOOR EDGE TOP & BOTTOM
9	2309216 Whirlpool Refrigerator Door Gasket
10	WP308544 Whirlpool Screw
11	WP2316868 Whirlpool Refrigerator Handle
12	Skin, Door
13	WP8281250 Whirlpool Refrigerator Screw
14	Basket Assembly, Freezer
15	WP2207454 Whirlpool Refrigerator Nut
16	WASHER
17	Screw, 5/16 x 1
