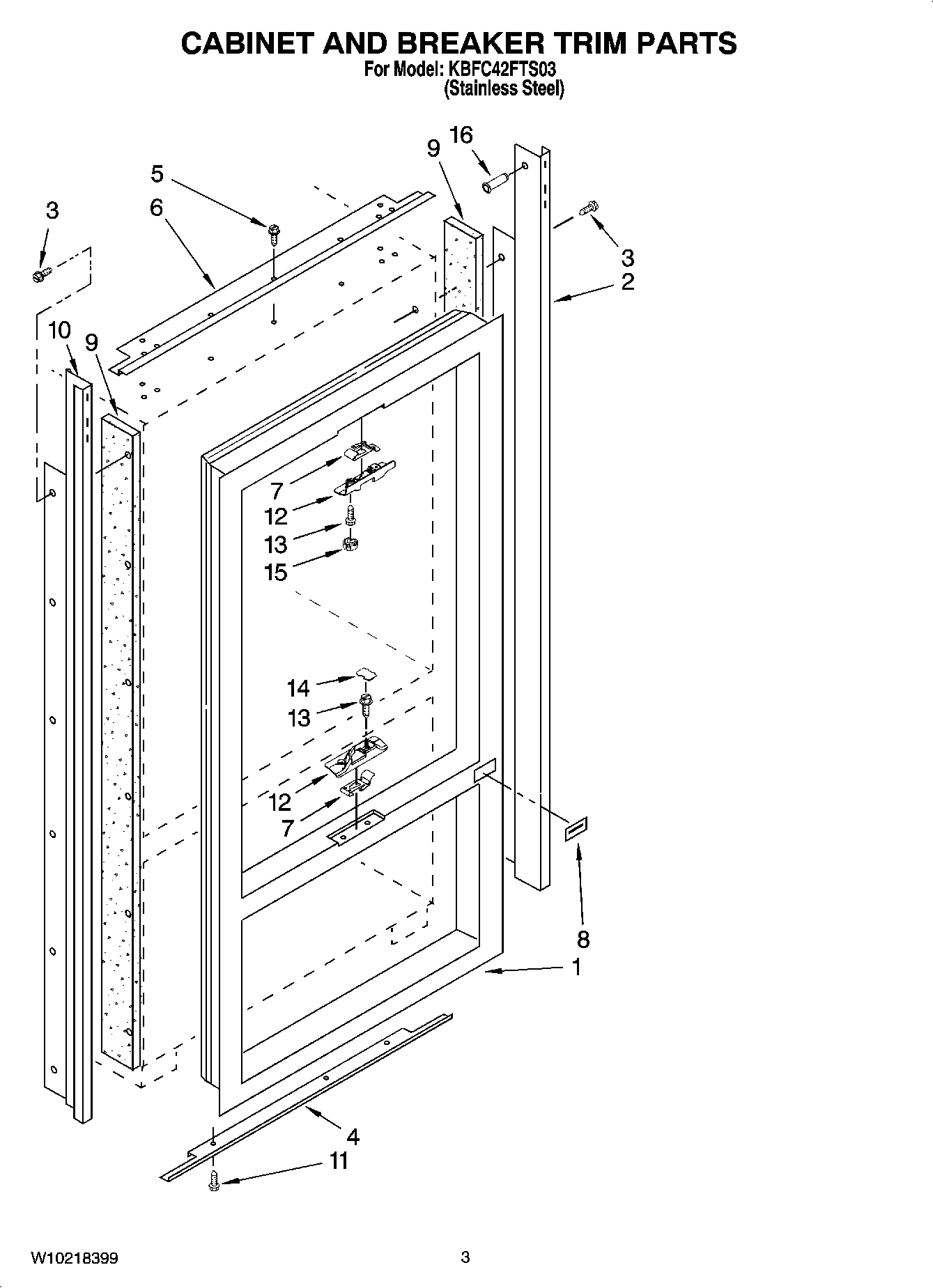

KBFC42FTS03 02 – CABINET AND BREAKER TRIM PARTS

KBFC42FTS03 02 – CABINET AND BREAKER TRIM PARTS

Written by

in

KBFC42FTS03 02 – CABINET AND BREAKER TRIM PARTS

Products

PositionProduct
1Breaker Trim (Not Serviced)
2CABINET TRIM, RIGHT SIDE
3WP1163283 Whirlpool Air Conditioner Screw
42316687 Whirlpool Refrigerator Cabinet Trim
62314017 Whirlpool Refrigerator Cabinet Trim
72316857 Whirlpool Refrigerator Slide
72316858 Whirlpool Refrigerator Slide
8Cover, Hinge
9Seal, Side Trim
10CABINET TRIM, LEFT SIDE
11WP489464 Whirlpool Refrigerator Screw
122309231 Whirlpool Refrigerator Clip
122309230 Whirlpool Refrigerator Clip
13W11624204 Whirlpool Screw
142316899 Whirlpool Refrigerator Cover
152317078 Whirlpool Cover
16WPW10121451 Whirlpool Refrigerator Insert
