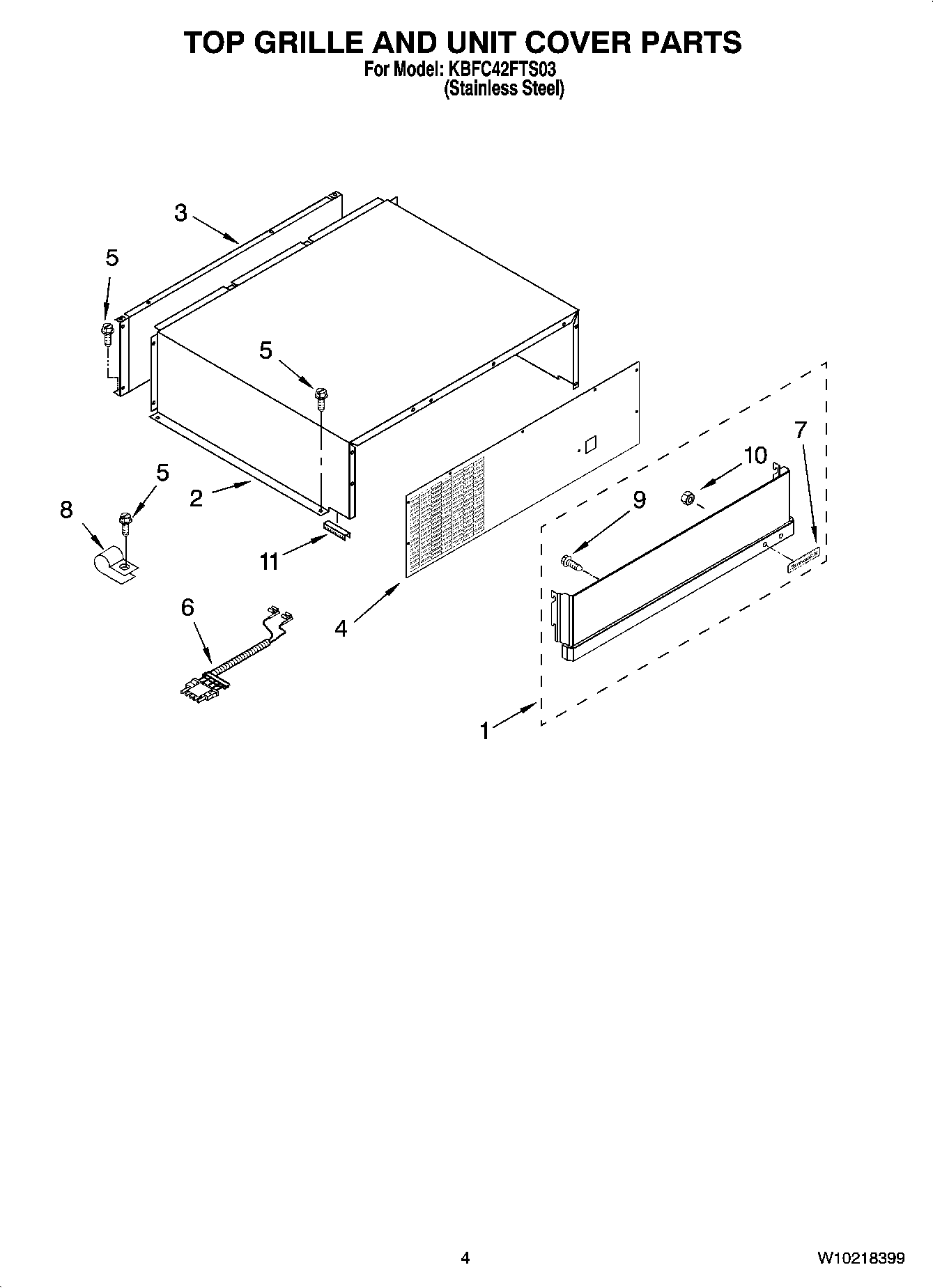

KBFC42FTS03 03 – TOP GRILLE AND UNIT COVER PARTS

KBFC42FTS03 03 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KBFC42FTS03 03 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly
2Cover, Unit
32256466 Whirlpool Refrigerator Unit Cover
4Front, Unit Cover
5WP965173 Whirlpool Dishwasher Screw
62187946 Whirlpool Refrigerator Wire Jumper
7NAMEPLATE
8489348 Whirlpool Refrigerator Tube Clamp
9WP489399 Whirlpool Refrigerator Screw
10WP2004333 Whirlpool Refrigerator Nut
112215910 Whirlpool Refrigerator Grommet
