KBFC42FTS03 08 – FREEZER DOOR AND BASKET PARTS

KBFC42FTS03 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

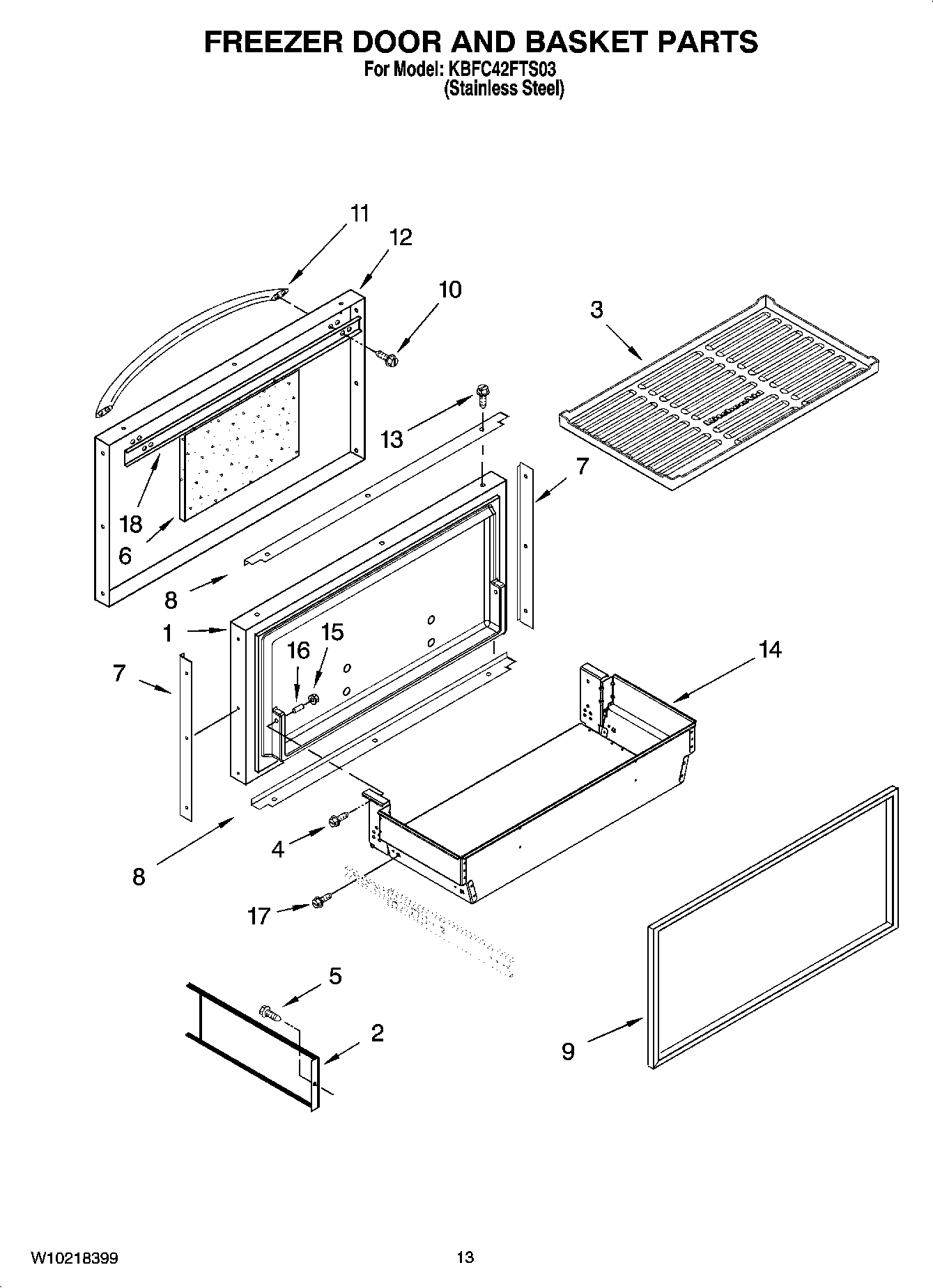

KBFC42FTS03 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1Freezer Door (Includes 9)
2Divider, Basket (2)
3W10665413 Whirlpool Refrigerator Mat
4W10135775 Whirlpool Refrigerator Screw
5WPW10001160 Whirlpool Refrigerator Screw
62309219 Whirlpool Refrigerator Filler
7Spacer, Door Edge – Side
8SPACER, DOOR EDGE TOP & BOTTOM
92309216 Whirlpool Refrigerator Door Gasket
10WP308544 Whirlpool Screw
11WP2316868 Whirlpool Refrigerator Handle
12Skin, Door
13WP8281250 Whirlpool Refrigerator Screw
14Basket Assembly, Freezer
15WP2207454 Whirlpool Refrigerator Nut
16WASHER
17W10109030 Whirlpool Refrigerator Screw
18W10127710 Whirlpool Refrigerator Plate
