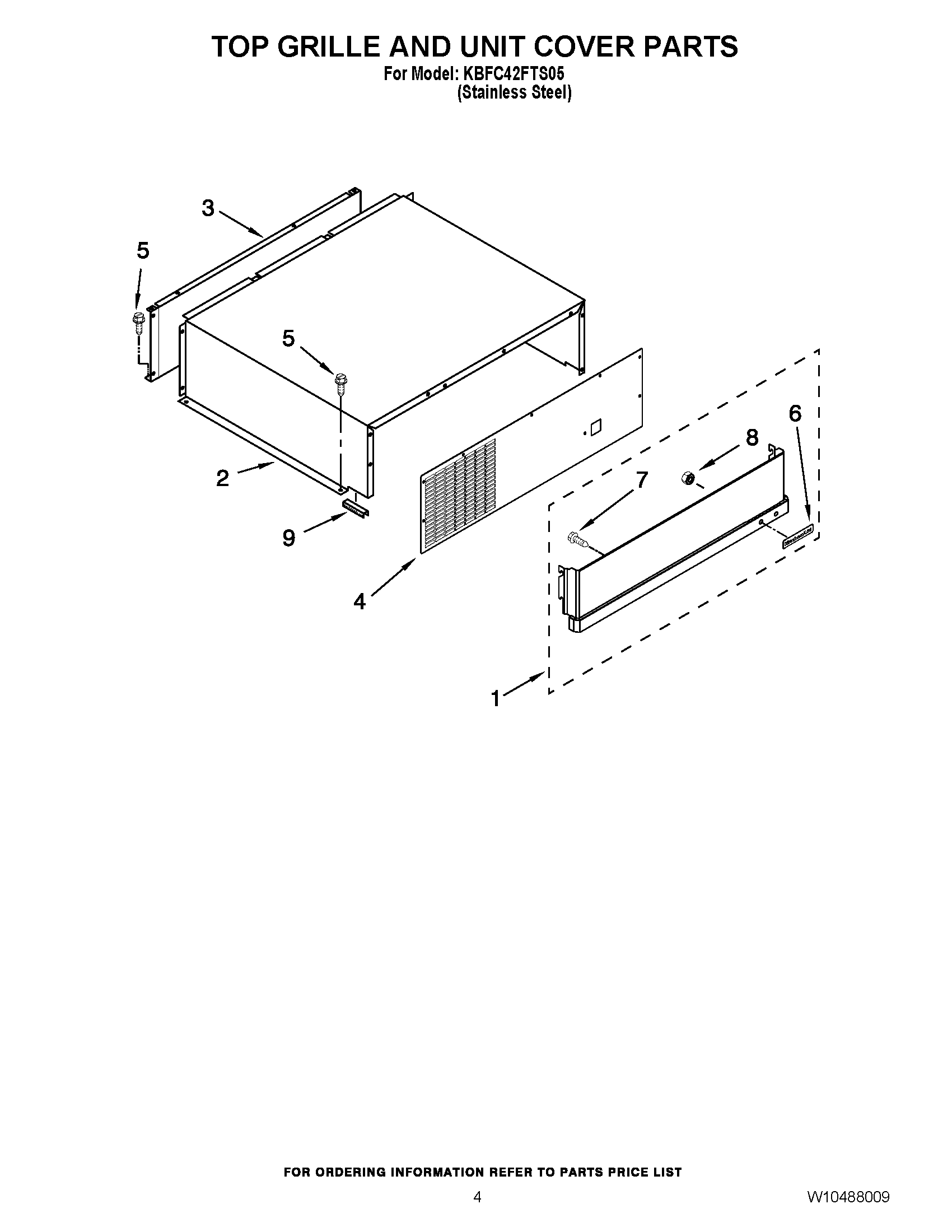

KBFC42FTS05 03 – TOP GRILLE AND UNIT COVER PARTS

Written by

Products

Position	Product
1	Top Grille Assembly
2	COVER, UNIT
3	2256466 Whirlpool Refrigerator Unit Cover
4	FRONT, UNIT COVER
5	WP489069 Whirlpool Compactor Screw
6	NAMEPLATE
7	WP489399 Whirlpool Refrigerator Screw
8	WP2004333 Whirlpool Refrigerator Nut
9	2215910 Whirlpool Refrigerator Grommet
