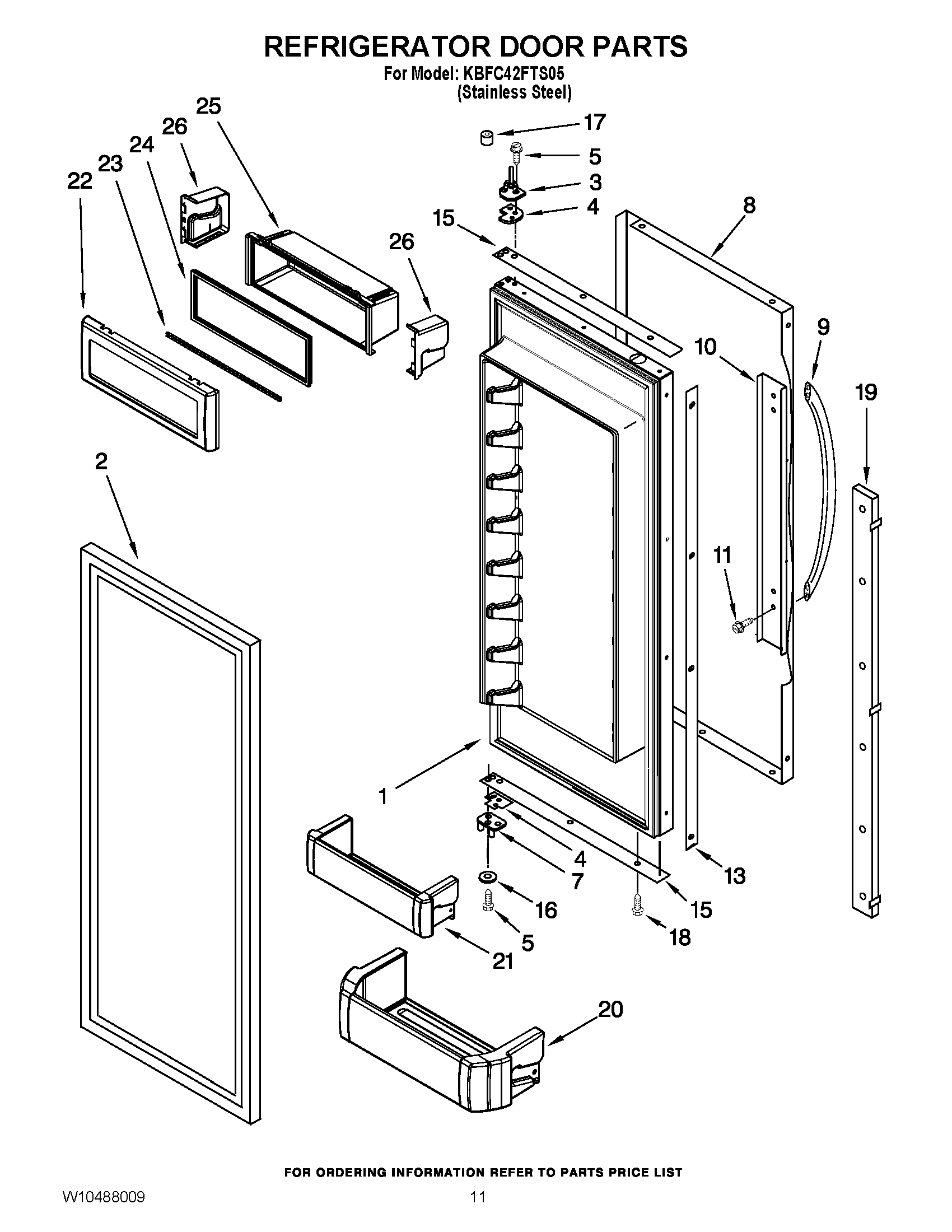

KBFC42FTS05 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Refrigerator (Includes Item 2) (Left Side)
1Door, Refrigerator (Includes Item 2) (Right Side)
28201809 Whirlpool Refrigerator Door Gasket
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
7W10273369 Whirlpool Refrigerator Door Hinge
7W10273367 Whirlpool Refrigerator Door Hinge
8Skin, Door
9WP2316868 Whirlpool Refrigerator Handle
10W10127710 Whirlpool Refrigerator Plate
11WP308544 Whirlpool Screw
13Spacer, Door Edge (Handle Side)
15SPACER, DOOR EDGE (TOP / BOTTOM)
16WP2006346 Whirlpool Refrigerator Washer
17W11500952 Whirlpool Refrigerator Hinge Bushing
18WP8281250 Whirlpool Refrigerator Screw
19Mullion Assembly
20W10323746 Whirlpool Refrigerator Cantilever Bin
21W10323598 Whirlpool Refrigerator Cantilever Bin
22WPW10131132 Whirlpool Refrigerator Door Compressor
232222795 Whirlpool Refrigerator Rail
24WP2222981 Whirlpool Refrigerator Gasket
25WPW10323035 Whirlpool Refrigerator Cantilever Bin
26WPW10323173 Whirlpool Refrigerator Retainer End Cap
26WPW10323172 Whirlpool Refrigerator Retainer End Cap
