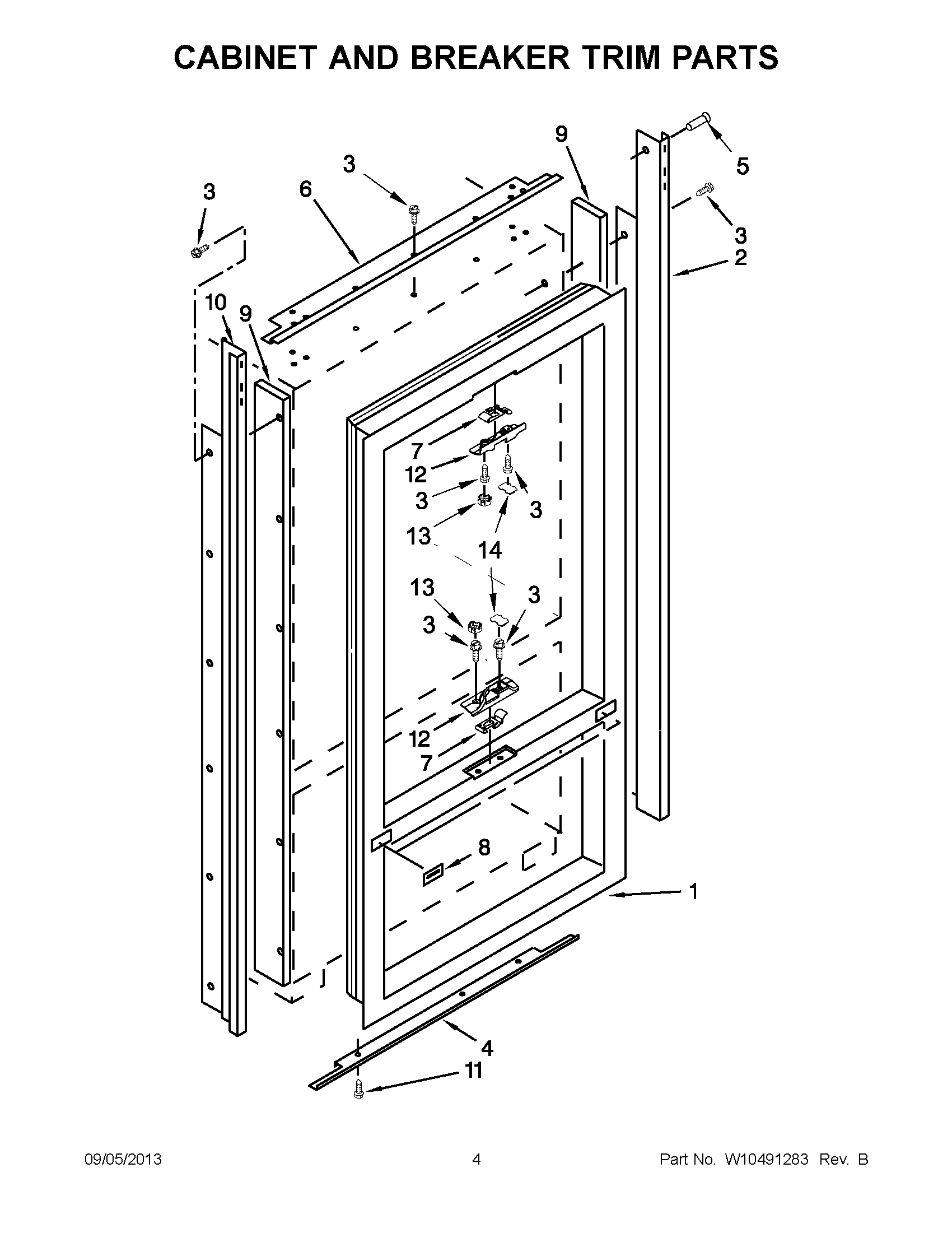

KBFC42FTS06 03 – CABINET AND BREAKER TRIM PARTS

KBFC42FTS06 03 – CABINET AND BREAKER TRIM PARTS

Written by

in

KBFC42FTS06 03 – CABINET AND BREAKER TRIM PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2CABINET TRIM, RIGHT SIDE
3W11624204 Whirlpool Screw
42316687 Whirlpool Refrigerator Cabinet Trim
5WPW10121451 Whirlpool Refrigerator Insert
62314017 Whirlpool Refrigerator Cabinet Trim
72316857 Whirlpool Refrigerator Slide
72316858 Whirlpool Refrigerator Slide
8Cover, Hinge
9Seal, Side Trim
10CABINET TRIM, LEFT SIDE
11WP489464 Whirlpool Refrigerator Screw
122309230 Whirlpool Refrigerator Clip
122309231 Whirlpool Refrigerator Clip
132317078 Whirlpool Cover
142316899 Whirlpool Refrigerator Cover
