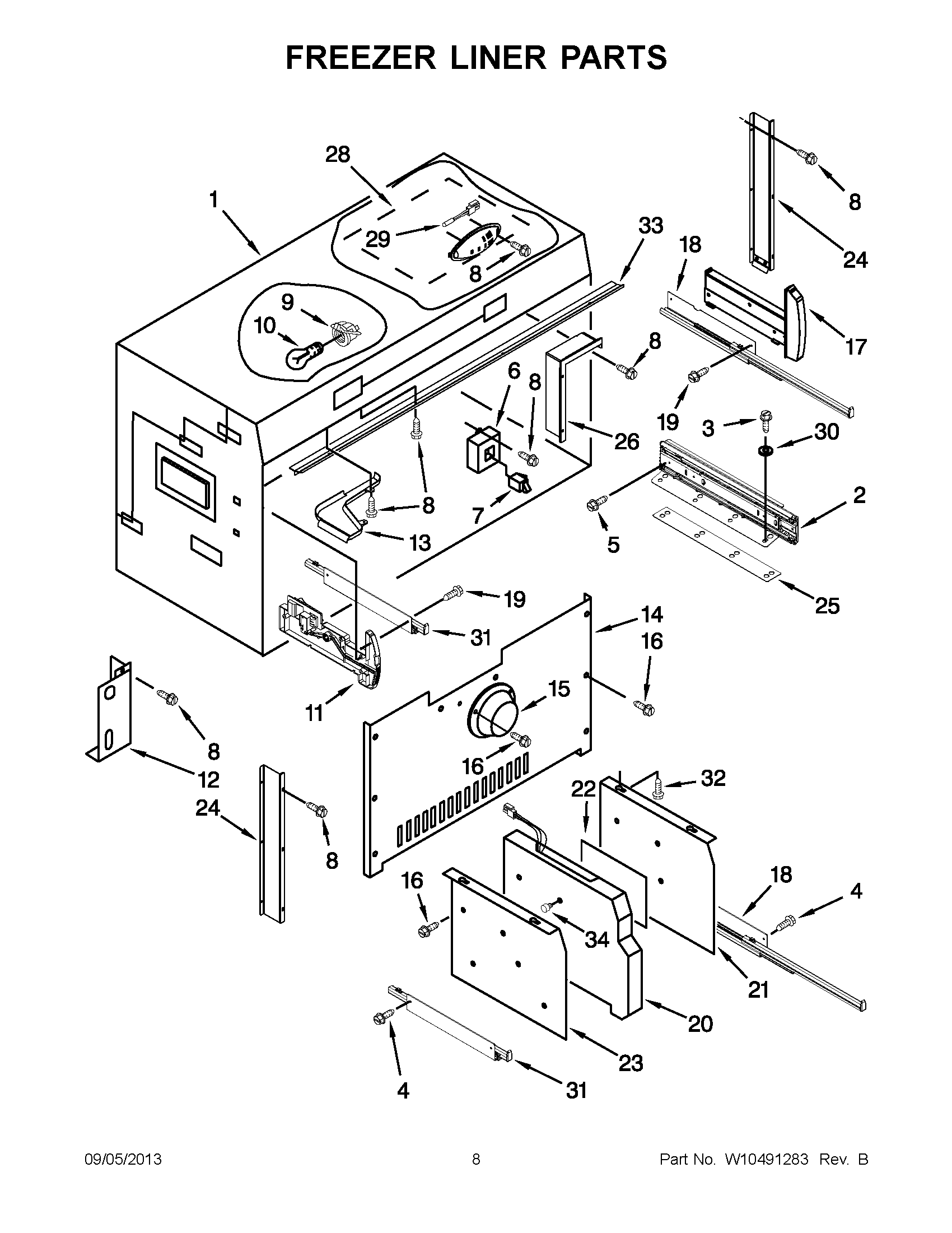

KBFC42FTS06 05 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	SLIDE AND BRACKET ASSEMBLY (LEFT)
2	SLIDE AND BRACKET ASSEMBLY (RIGHT)
3	WP8204624 Whirlpool Bolt
4	WPW10001160 Whirlpool Refrigerator Screw
5	Screw
6	W10234211 Whirlpool Refrigerator Cover
7	W11384469 Whirlpool Door Switch
8	W11624204 Whirlpool Screw
9	WPW10191429 Whirlpool Refrigerator Socket
10	WPA3073101 Whirlpool Light Bulb
11	SPACER ASSEMBLY, ICEMAKER (INCLUDES EMITTER)
12	Cover, Wiring (Icemaker)
13	2317005 Whirlpool HVAC Air Duct
14	Cover, Evaporator
15	2317829 Whirlpool Refrigerator Cover
16	WP488729 Whirlpool Refrigerator Door Screw
17	2306106 Whirlpool Refrigerator Track
18	2306116 Whirlpool Refrigerator Slide
19	WP488163 Whirlpool Refrigerator Screw
20	DIVIDER, FREEZER BINS (INCLUDES ITEM 34)
21	W10716209 Whirlpool Refrigerator Support
22	SHIELD
23	SUPPORT, SLIDE LEFT
24	Bracket, Evaporator Cover (Right Side)
24	Bracket, Evaporator Cover (Left Side)
25	SLIDE BRACKET SHIM
26	Bracket, Air Return
28	WP2317844 Whirlpool Refrigerator Cover
29	WP2188820 Whirlpool Refrigerator Thermistor
30	W10075920 Whirlpool Refrigerator Washer
31	2306117 Whirlpool Refrigerator Slide
32	WP8533928 Whirlpool Refrigerator Screw
33	Air Deflector Asy
34	WP2198643 Whirlpool Refrigerator Lens
