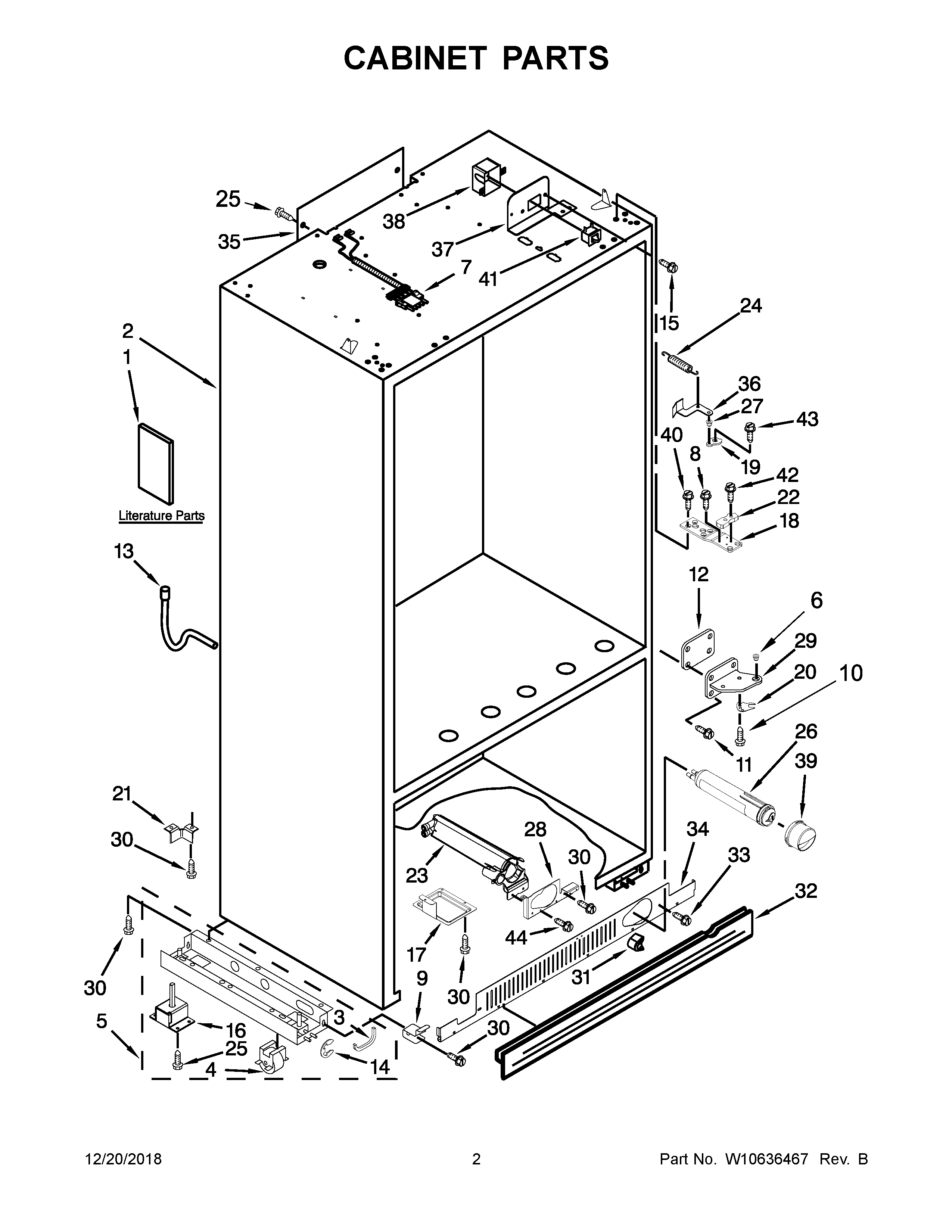

KBFC42FTS08 02 – CABINET PARTS

Products

Position	Product
1D	Modular Icemaker Service Sheet
1C	MAIN CONTROL SERVICE SHEET
1	USE & CARE GUIDE
1B	SERVICE & WIRING SHEET
1A	Energy Guide
2	CABINET (NOT A SERVICEABLE PART)
3	2307584 Whirlpool Refrigerator Grommet
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860448 Whirlpool Refrigerator Support
5A	W10860229 Whirlpool Refrigerator Support
6	2314023 Whirlpool Bushing
7	2187946 Whirlpool Refrigerator Wire Jumper
8	WP8281164 Whirlpool Refrigerator Screw
9	W10839844 Whirlpool Refrigerator Bracket
10	WP488234 Whirlpool Air Conditioner Screw
11	W11474472 Whirlpool Screw
12	2207470 Whirlpool Refrigerator Hinge Shim
13	2314064 Whirlpool Refrigerator Drain Tube
14	2006841 Whirlpool Ring
15	WP965173 Whirlpool Dishwasher Screw
16	2005032 Whirlpool Refrigerator Leveler
17	2318189 Whirlpool Refrigerator Drip Pan
18	W11218690 Whirlpool Refrigerator Door Hinge
19	WP2320509 Whirlpool Refrigerator Door Cam
20	WP2004994 Whirlpool Refrigerator Hinge Bushing
21	2006617 Whirlpool Refrigerator Bracket
22	W11403572 Whirlpool Refrigerator Bracket
23	WPW10121140 Whirlpool Refrigerator Housing
24	WP2004517 Whirlpool Refrigerator Spring
25	W11624204 Whirlpool Screw
26	FILTER 3-SINGLE TEAL
27	WP2316859 Whirlpool Refrigerator Bushing
28	W10674648 Whirlpool Refrigerator Bracket
29	W10337505 Whirlpool Refrigerator Door Hinge
30	WP489464 Whirlpool Refrigerator Screw
31	WP2260503B Whirlpool Refrigerator Button
32	SKIRT, GRILLE (BOTTOM)
34	Grille Base, Front
35	2215612 Whirlpool Refrigerator Duct Cover
36A	W11298172 Whirlpool Refrigerator Extension
36	W10847927 Whirlpool Refrigerator Extension
37	2221097 Whirlpool Refrigerator Bracket
37A	2221096 Whirlpool Refrigerator Bracket
38	2215938 Whirlpool Refrigerator Switch Cover
39	W11238395 Whirlpool Refrigerator Filter Cap
40	W11189635 Whirlpool Refrigerator Screw
41	W11384469 Whirlpool Door Switch
42	Screw, Door Stop
43	WP8533980 Whirlpool Refrigerator Screw
44	WP8281163 Whirlpool Refrigerator Screw
