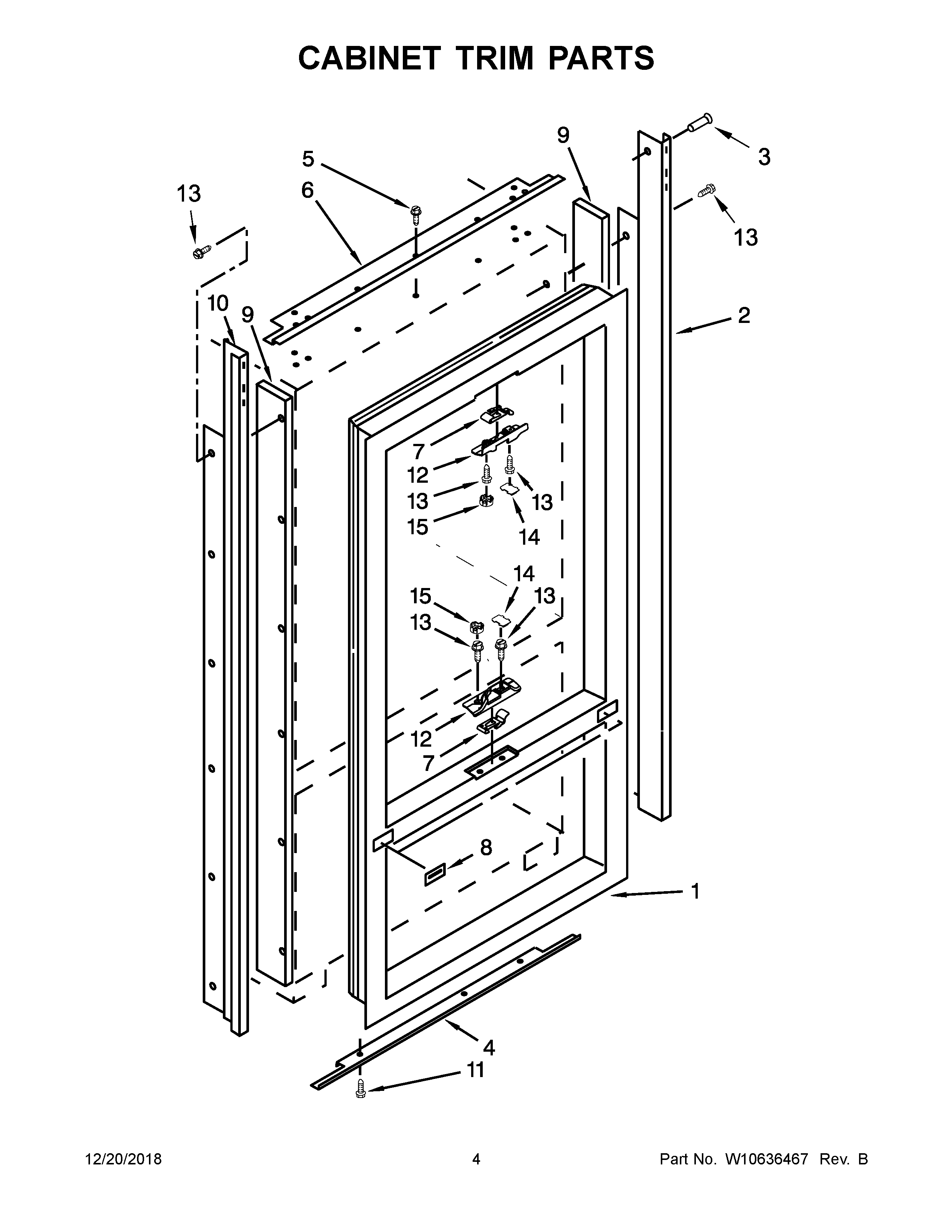

KBFC42FTS08 03 – CABINET TRIM PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2CABINET TRIM, RIGHT SIDE
3WPW10121451 Whirlpool Refrigerator Insert
42316687 Whirlpool Refrigerator Cabinet Trim
62314017 Whirlpool Refrigerator Cabinet Trim
7A2316858 Whirlpool Refrigerator Slide
72316857 Whirlpool Refrigerator Slide
8Cover, Hinge
9Seal, Side Trim
10CABINET TRIM, LEFT SIDE
11WP489464 Whirlpool Refrigerator Screw
12A2309231 Whirlpool Refrigerator Clip
122309230 Whirlpool Refrigerator Clip
13W11624204 Whirlpool Screw
142316899 Whirlpool Refrigerator Cover
152317078 Whirlpool Cover
