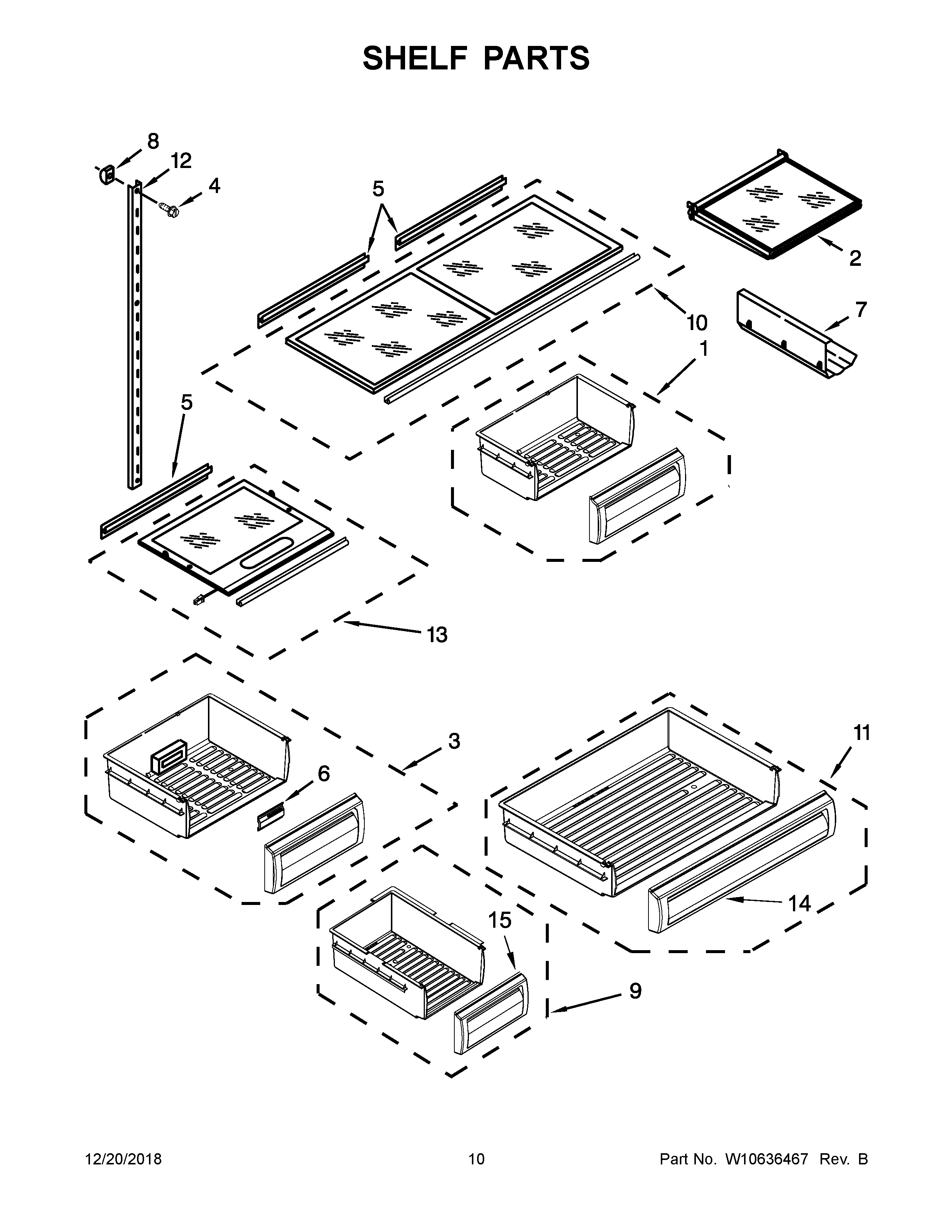

KBFC42FTS08 06 – SHELF PARTS

Products

PositionProduct
1CRISPER PAN ASSEMBLY (INCLUDES ITEM 2) (LEFT)
1ACRISPER PAN ASSEMBLY (INCLUDES ITEM 2) (RIGHT)
2Shelf (4)
3ADELI PAN ASSEMBLY (INCLUDES ITEMS 4, 5 & 6) (RIGHT)
3DELI PAN ASSEMBLY (INCLUDES ITEMS 4, 5 & 6) (LEFT)
42006475 Whirlpool Refrigerator Screw
52309400 Whirlpool Pan Gasket
62317939 Whirlpool Refrigerator Deflector
7W10777924 Whirlpool Refrigerator Wine Rack
8520965 Whirlpool Refrigerator Support
9Ice Pan Assembly (Includes 10)
10W11430640 Whirlpool Glass Shelf
112327511 Whirlpool Refrigerator Pan
12Ladder, Shelf (4)
13W10757973-includeCORE Whirlpool W10757973 Refrigerator Electronic Control Board + Core
13AW10757993-includeCORE Whirlpool W10757993 Refrigerator Electronic Control Board + Core
14WP2256367 Whirlpool Refrigerator Front Pan
152306175 Whirlpool Refrigerator Front Pan
