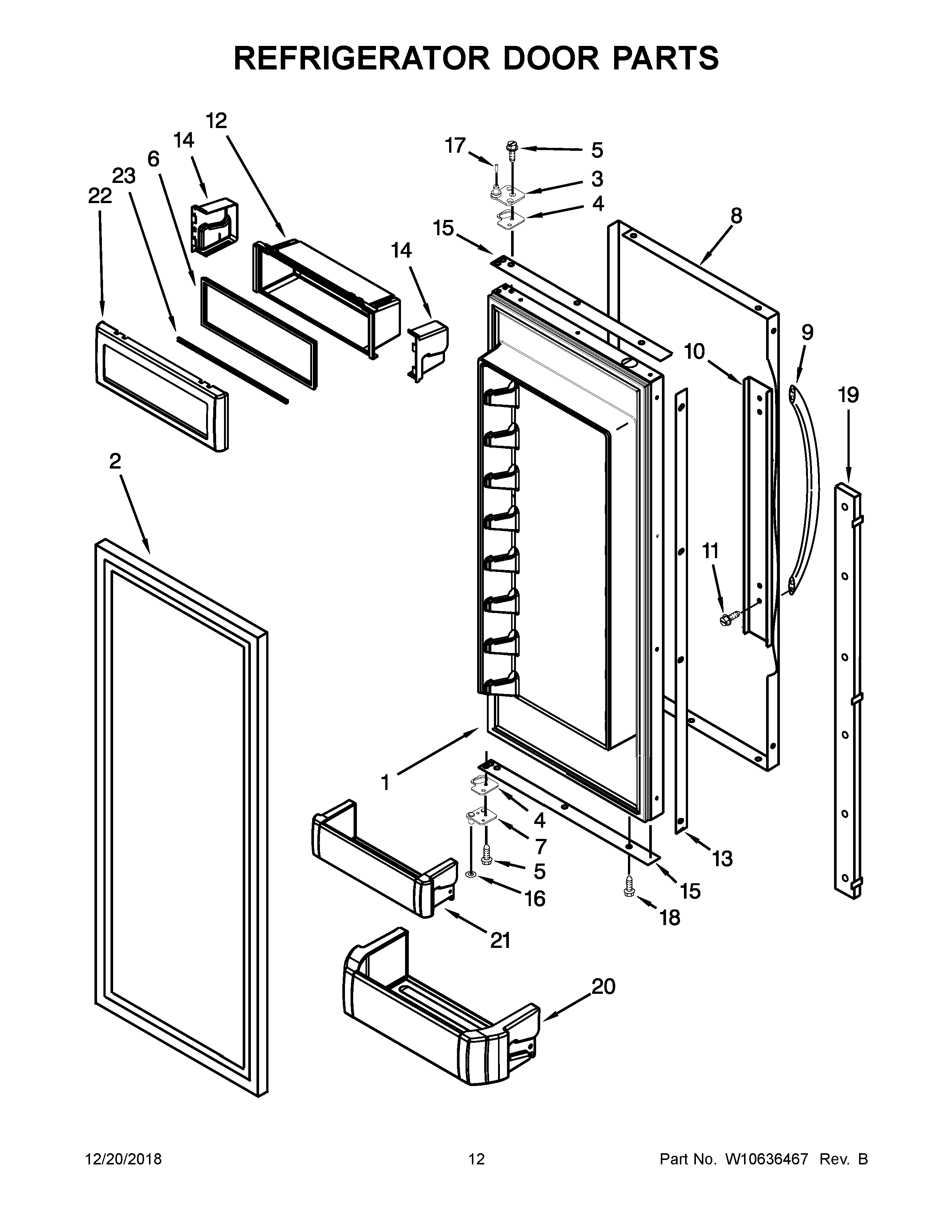

KBFC42FTS08 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Includes Item 2) (Left Side)
1A	Door, Refrigerator (Includes Item 2) (Right Side)
2	8201809 Whirlpool Refrigerator Door Gasket
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	WP2222981 Whirlpool Refrigerator Gasket
7A	W10273367 Whirlpool Refrigerator Door Hinge
7	W10273369 Whirlpool Refrigerator Door Hinge
8	SKIN, DOOR (STAINLESS)
9	WP2316868 Whirlpool Refrigerator Handle
10	W10127710 Whirlpool Refrigerator Plate
11	WP308544 Whirlpool Screw
12	WPW10323035 Whirlpool Refrigerator Cantilever Bin
13	Spacer, Door Edge (Handle Side)
14	WPW10323173 Whirlpool Refrigerator Retainer End Cap
14A	WPW10323172 Whirlpool Refrigerator Retainer End Cap
15	SPACER, DOOR EDGE (TOP / BOTTOM)
16	WP2006346 Whirlpool Refrigerator Washer
17	W11500952 Whirlpool Refrigerator Hinge Bushing
18	WP8281250 Whirlpool Refrigerator Screw
19	Mullion Assembly
20	W10323746 Whirlpool Refrigerator Cantilever Bin
21	W10323598 Whirlpool Refrigerator Cantilever Bin
22	WPW10131132 Whirlpool Refrigerator Door Compressor
23	2222795 Whirlpool Refrigerator Rail
