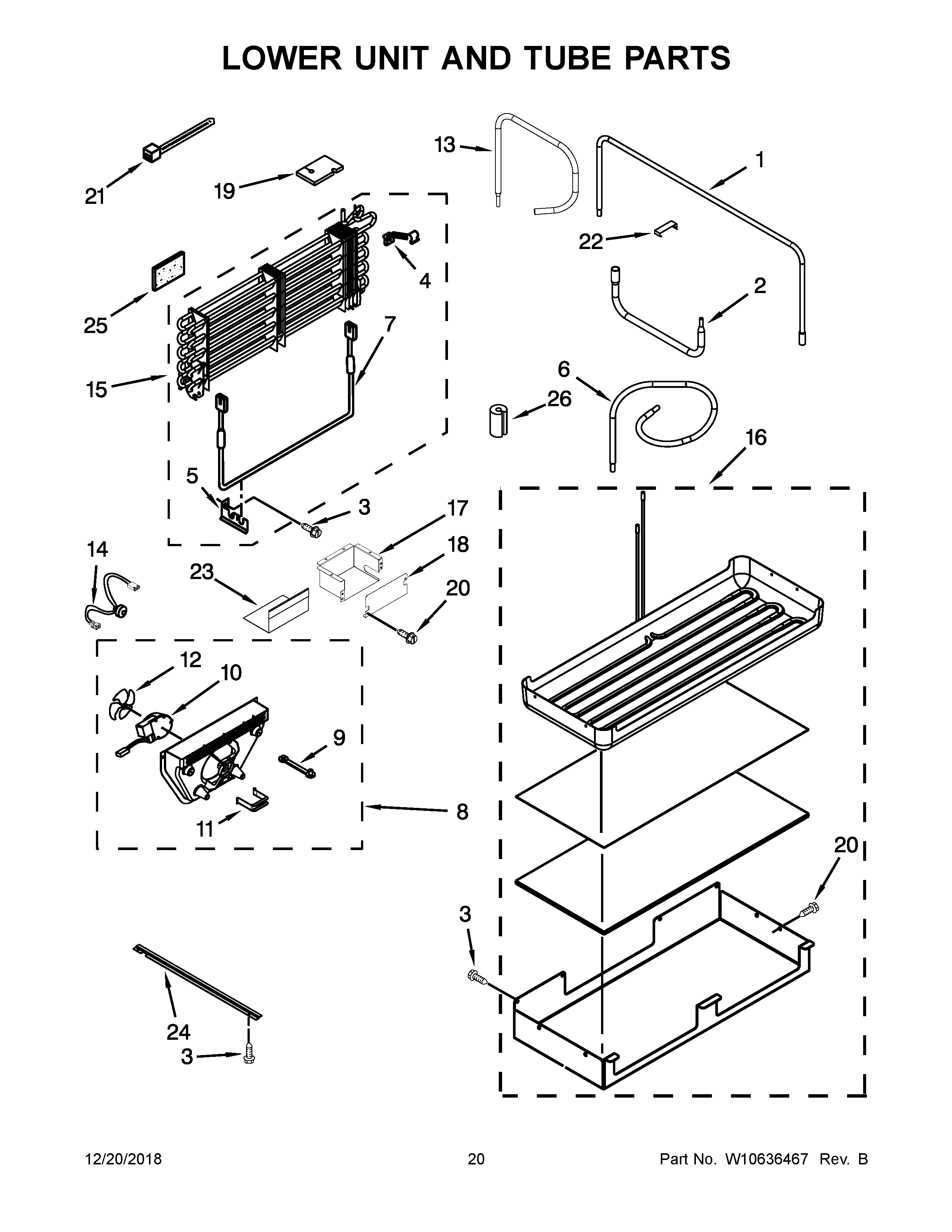

KBFC42FTS08 11 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	TUBE, TRANSITION (CONDENSER/DRAIN PAN)
2	W10388653 Whirlpool Refrigerator Tube
3	W11624204 Whirlpool Screw
4	2307944 Whirlpool Clip
5	Bracket, Mounting
6	W10306442 Whirlpool Refrigerator Tube
7	W10219166 Whirlpool Refrigerator Heater
8	SCROLL ASSEMBLY
9	GROMMET, MOTOR
10	W11671461 Whirlpool Evaporator Motor
11	W11671527 Whirlpool Retainer Assembly
12	WP2169142 Whirlpool Fan Blade
13	W10404239 Whirlpool Refrigerator Tube
14	W10482185 Whirlpool Refrigerator Wire Harness
15	W10195924 Whirlpool Refrigerator Evaporator
16	WPW10281063 Whirlpool Refrigerator Heater Pan
17	WPW10309012 Whirlpool Wire Cover
18	WIRE BOX COVER
19	Block, Evaporator
20	WP489069 Whirlpool Compactor Screw
21	WPW10339879 Whirlpool Wire Tie
22	W10169509 Whirlpool Refrigerator Clip
23	W10321050 Whirlpool Refrigerator Shield
24	2320554 Whirlpool Bracket
25	W11553819 Whirlpool Refrigerator Insulation
26	W11715935 Whirlpool Dampener
