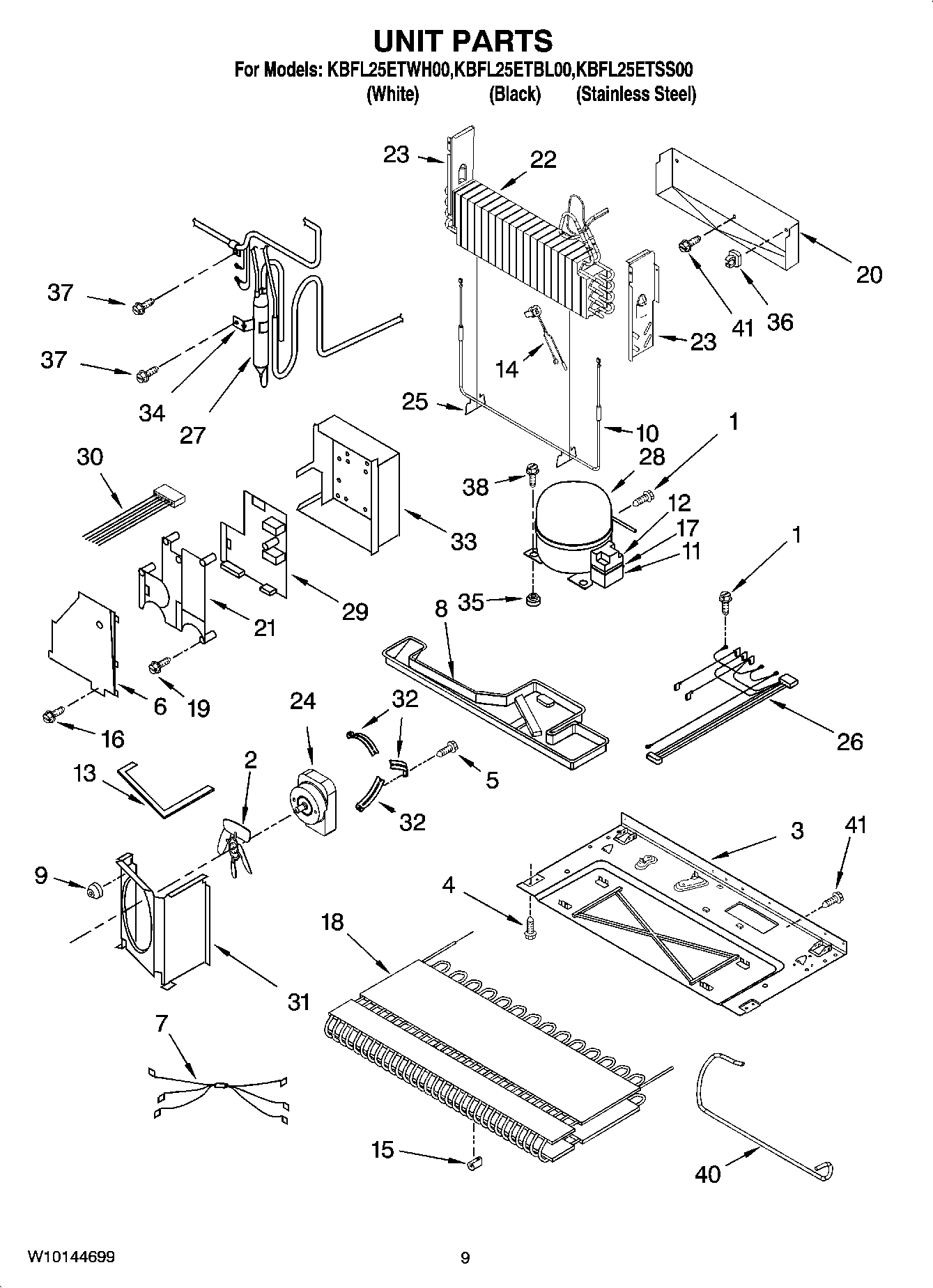

KBFL25ETBL00 05 – UNIT PARTS
Written by
in
KBFL25ETBL00 05 – UNIT PARTS
Products
Position
Product
978030 Whirlpool Refrigerator Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (5/8“)
1
12992301 Whirlpool Refrigerator Screw
2
W10156818 Whirlpool Refrigerator Fan Blade
3
Basepan
4
Screw (4)
5
WP67004954 Whirlpool Refrigerator Screw
6
67005421 Whirlpool Hoist Cover
7
Harness, Evap Heater
8
WP12579803 Whirlpool Refrigerator Drain Pan
9
Grommet (3)
10
WP67002493 Whirlpool Refrigerator Defrost Heater
11
Capacitor (See Item 12)
12
W10613606 Whirlpool Refrigerator Start Device Relay Overload
13
WP854334 Whirlpool Air Conditioner Sealing Strip
14
WP67003426 Whirlpool Refrigerator Thermostat
15
67005680 Whirlpool Refrigerator Condenser Grommet
16
W10709801 Whirlpool Refrigerator Screw
17
Clip, Capacitor
18
WP67006131 Whirlpool Refrigerator Condenser
19
Screw (2)
20
W11547653 Whirlpool Refrigerator Drip Tray
21
Spacer, Box- High Voltage
22
12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23
Dam (Right Side)
23
Dam (Left Side)
24
Motor, Fan
25
W11673433 Whirlpool Clip
26
Harness, Unit
27
WPW10143759 Whirlpool Dryer Filter
28
W10160407 Whirlpool Refrigerator Compressor
29
Control Board, High Voltage
30
Harness, HV
31
Shroud
32
WP67004953 Whirlpool Refrigerator Bracket
33
Control Box, High Voltage
34
10547003 Whirlpool Refrigerator Dryer Clip
35
67003493 Whirlpool Refrigerator Compressor Grommet
36
CLIP, EVAP (2)
37
WP33001882 Whirlpool Screw
38
12846902 Whirlpool Refrigerator Screw
40
WP12866903 Whirlpool Refrigerator Discharge Tube
41
67006425 Whirlpool Refrigerator Screw
←
