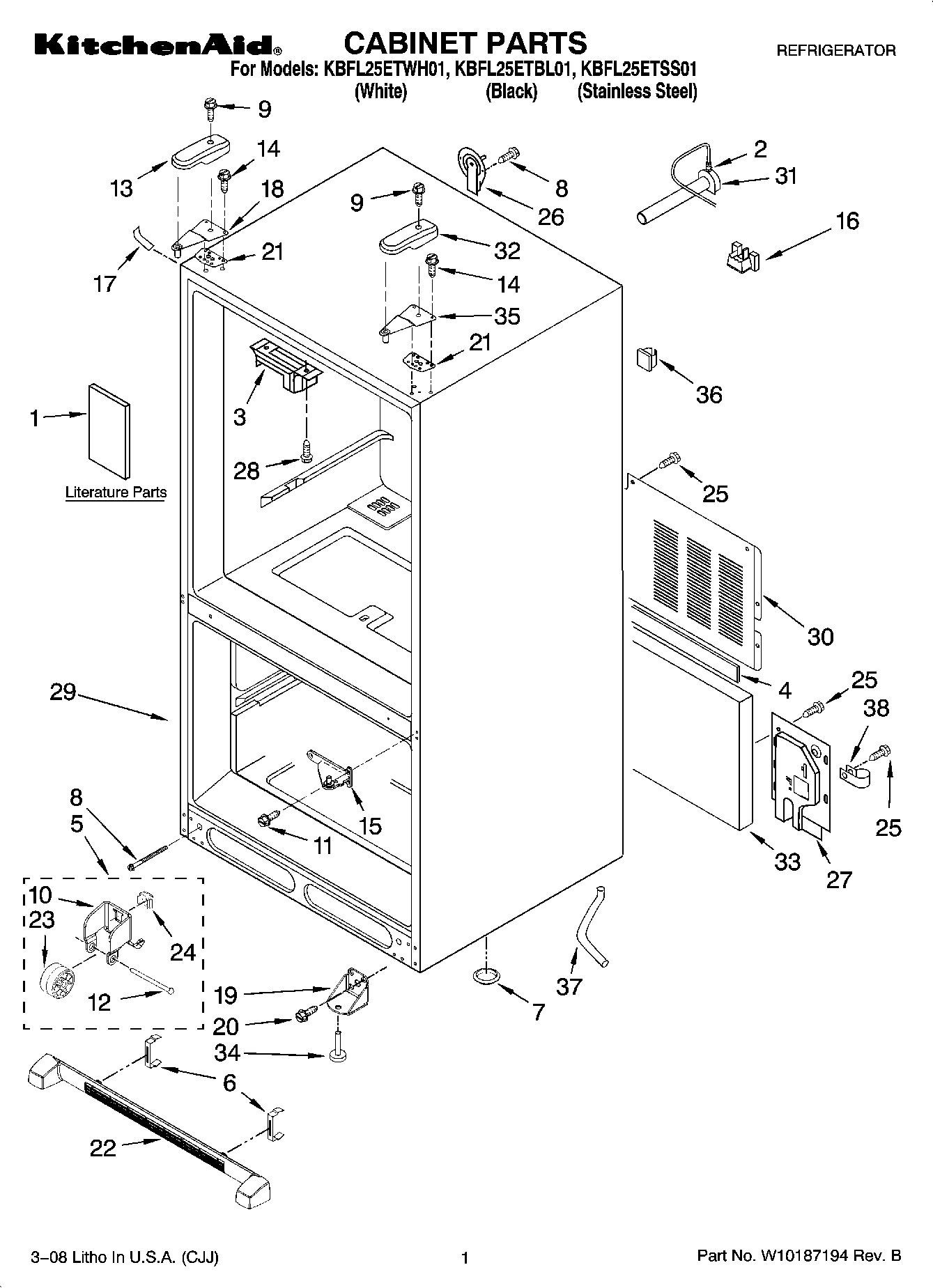

KBFL25ETBL01 01 – CABINET PARTS

KBFL25ETBL01 01 – CABINET PARTS

Written by

in

KBFL25ETBL01 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
1Tag, Energy
1Tech Sheet
2WPM0114003 Whirlpool Microwave Speed Clip Clamp
3WP67003405 Whirlpool Pivot Block
4Gasket
5Roller Assy.(Rear)
6Clip, Grille
7A3076901 Whirlpool Refrigerator Plug
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
1012456801V Whirlpool Refrigerator Bracket
11WP67006380 Whirlpool Screw
12Pin
13Cover, Left Hinge (Black)
13Cover, Left Hinge (White)
14WP489349 Whirlpool Refrigerator Screw
1567006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
15W10918113 Whirlpool Refrigerator Door Hinge
15HINGE, CENTER RIGHT HAND (WHITE)
15W10918164 Whirlpool Refrigerator Door Hinge
16WP12777701 Whirlpool Refrigerator Filler Block
1767003484 Whirlpool Refrigerator White Corner Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18WP12566607ED Whirlpool Refrigerator Door Hinge
19Bracket, Foot
2067006564 Whirlpool Refrigerator Screw
21Shim, Hinge
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22WPW10534154 Whirlpool Refrigerator Front Grille
23WP10450603 Whirlpool Refrigerator Roller
24M0286708 Whirlpool Refrigerator Holder Nut Assembly
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27Cover, Water Valve
28WP7101P126-60 Whirlpool Screw
29Cabinet, (Not A Serviceable Part)
30Cover, Unit
31W11176463 Whirlpool Refrigerator Water Tube
32Cover, Right Hinge (Black)
32Cover, Right Hinge (White)
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
35WP12566606ED Whirlpool Refrigerator Door Hinge
36WPM0104106 Whirlpool Refrigerator Clip
37W10164397 Whirlpool Refrigerator Drain Tube
3867001067 Whirlpool Refrigerator Drain Tube Clip
